Gradall 534C-6 Parts Manual - Manual (Page 259)

JM
Item Part No. Qty. Description Of Part
7 8830-1141 4 HEX SOC BUTT HD CAPSCREW,
5/16-18 x 3/4
8 2486-1120 2 CLAMP
9 8850-1006 3 HEX NUT, 3/8-16
10 Ref ENGINE WIRING HARNESS
(see page 11-1 for details)
11 9103-3317 1 IGNITION SWITCH
7738-4578 1 KEY
12 7736-3268 3 15 AMP FUSE
Item Part No. Qty. Description Of Part
1 9114-1193 1 DASH PANEL
2 Ref GAUGE PANEL WIRING HARNESS
(see page 11-2 for details)
3 9114-3193 1 DASH PANEL WIRING HARNESS
4 Ref GAUGE PANEL (see page 11-6
for details)
5 7714-3003 7 WHIZ-LOC SCREW
6 7714-3006 4 WHIZ-LOC NUT

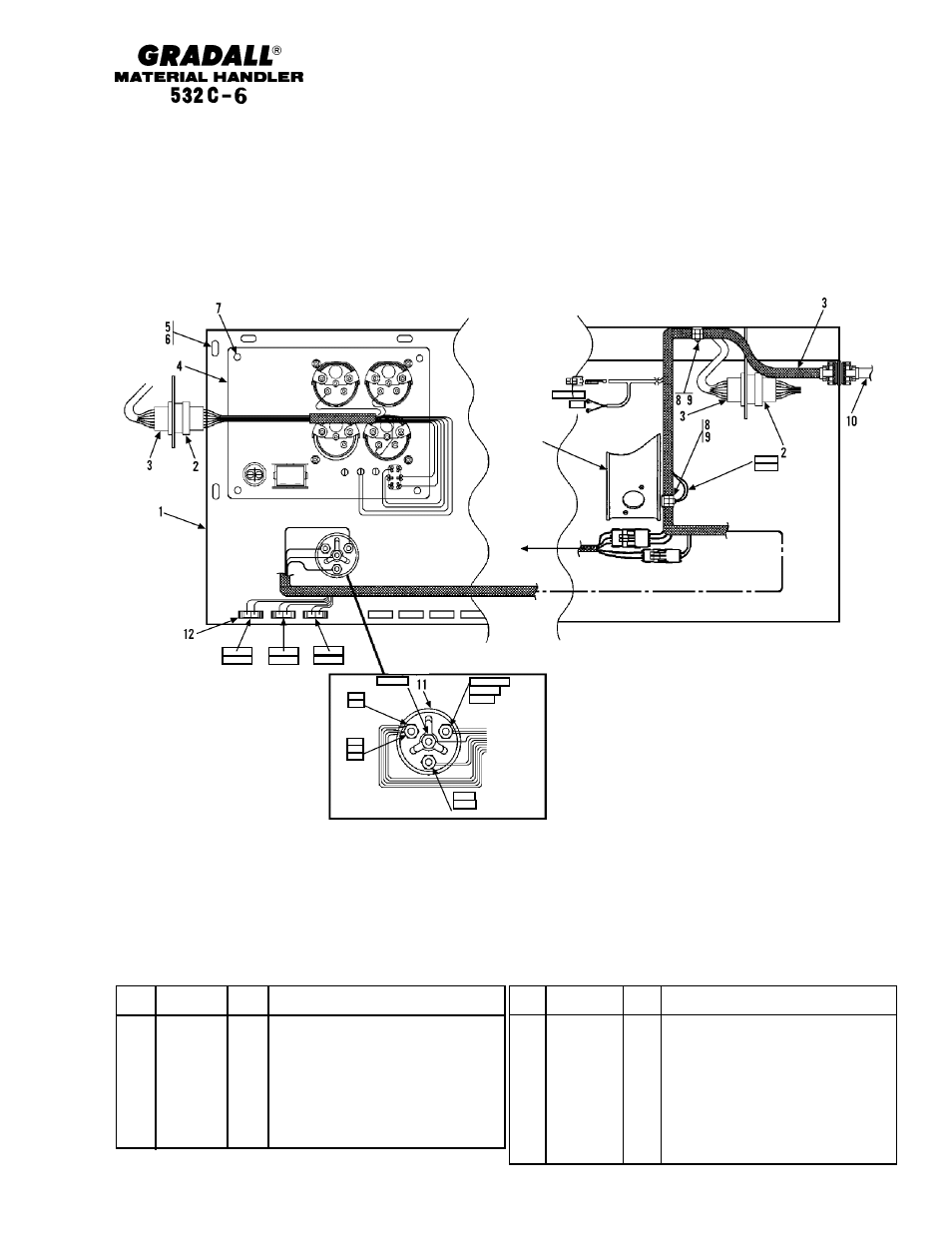

PARTIAL VIEW FROM UNDER DASH
PARTIAL VIEW FROM ABOVE DASH
WITH PANEL REMOVED FOR CLARITY
ENLARGED VIEW OF IGNITION
SWITCH CONNECTION
GND-2
GND-3
TRC LOK
4X4
BAT
BAT
BAT
BAT
BAT
ALT EXC-A
VLT GAG
ACC-A
IGN-C
IGN-A
START-A
ACC-A
ACC-B
IGN-A
IGN-B
IGN-C
PRK IGN
TO REVERSE
MASTER SWITCH.
STEERING
COLUMN
MOUNT
*
ELECTRICAL
Dash Panel
Starting Serial No. 0288777
Original Issue 10-95
Revised 6-27-07
11-3 * Added additional line under item 11.
