13-15
OPTIONAL EQUIPMENT

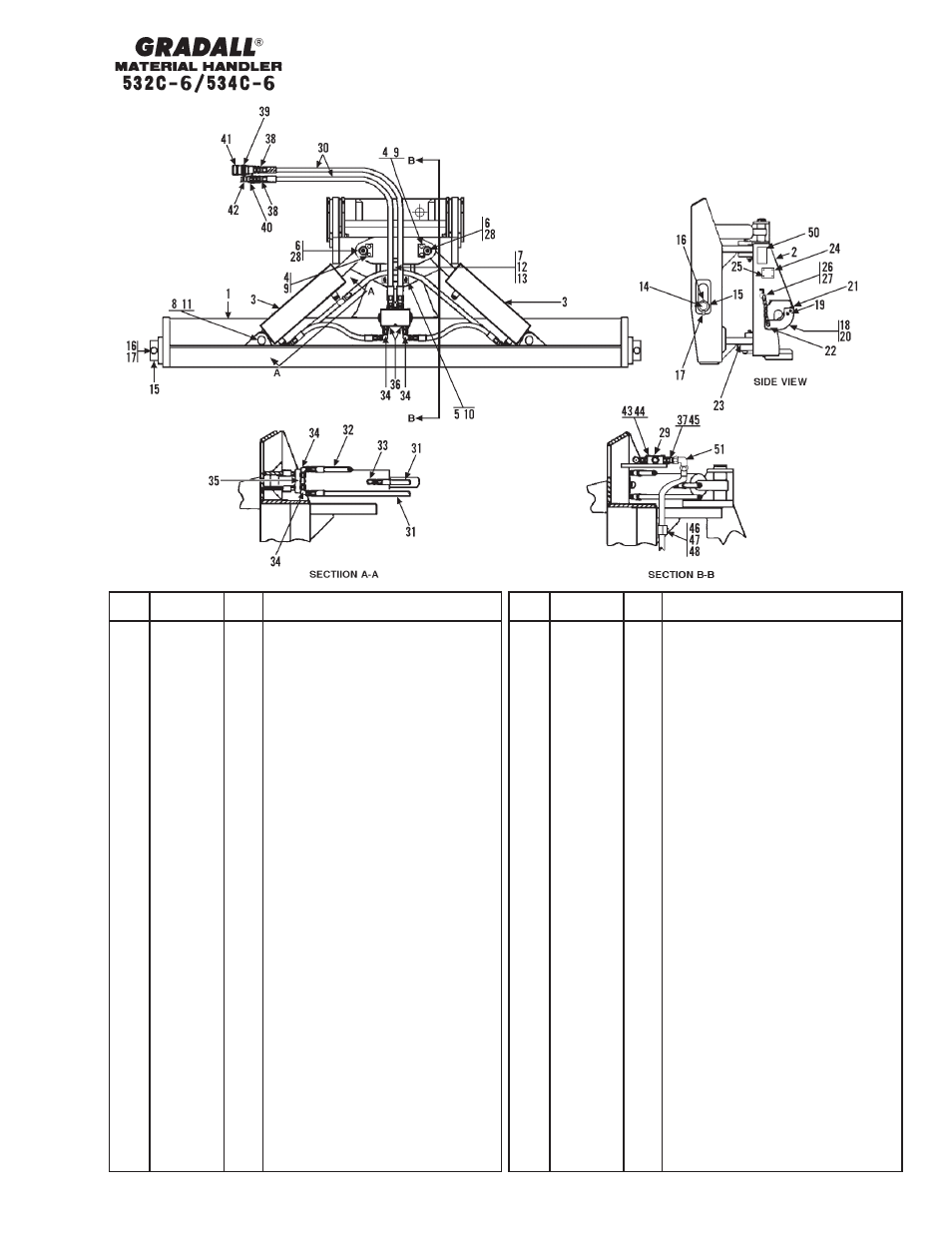

(9045-5044) 100º Swing Fork Assembly
Original Issue 12-91
Revised 7-10-06
Item
Part No.
Qty.
Description Of Part
9045-5044
Ref
100 DEGREE SWING FORK ASSY,
(includes all items)
1
9104-6061
1
CARRIAGE WELDMENT
2
9104-6062
1
PIVOT PIN
3
Ref
CYLINDER ASSY, (see page 13-14
for details)
4
9104-1322
2
LOCKING PLATE
5
9141-1073
2
LOCKING PLATE
6
9104-1324
2
PIVOT PIN
7
9104-1325
2
PIVOT PIN
8
9104-1326
2
PIVOT PIN
9
8320-1024
4
HEX HD CAPSCREW, 3/8-16X1, GR8
10
8320-1026
4
HEX HD CAPSCREW, 1/2-13X1-1/2,
GR8
11
8858-1136
4
SNAP RING
12
8867-1022
2
LUBE FITTING, 90 DEGREES, 1/8
13
9104-1327
2
BUSHING
14
9055-1013
1
FORK PIN
15
9020-0003
2
COLLAR
16
8820-1105
2
HEX HD CASCREW, 5/8-11X4, GR5
17
8852-1310
2
HEX LOCKNUT, 5/8-11
18
9114-6053
1
L.H. SUPPORT BRACKET
19
9114-1350
2
PIN
20
9114-6054
1
R.H. SUPPORT BRACKET
21
8863-1449
2
ROLL PIN, 1/8X1-1/2
22
9104-3221
2
DETENT PIN
23
9104-1356
6
SPACER
24
9015-3001
1
SERIAL NUMBER PLATE
25
8834-1022
4
DRIVE SCREW, #10X3/8
26
9103-3039
2
CHAIN CONNECTION
27
9103-3038
24"
CHAIN
28
8867-1008
2
LUBE FITTING, STRAIGHT, 1/4-28
29
9104-3186
1
DOUBLE PILOT CHECK VALVE
30
8471-8067
2
HOSE ASSY
31
9020-4097
2
HOSE ASSY
Item
Part No.
Qty.
Description Of Part
32
7713-3201
2
HOSE ASSY
33
8866-2084
2
ELBOW, 45 DEGREES, (includes
o-ring)
8859-1204
2
O-RING
34
8866-2105
6
ELBOW, 90 DEGREES, (swivel nut)
35
8866-2152
2
BRANCH TEE, (includes o-ring)
8859-1204
2
O-RING
36
8866-2018
2
CONNECTOR, (includes o-ring)
8859-1205
2
O-RING
37
9104-1361
2
FITTING
38
8866-1013
2
MALE CONNECTOR, 1/2X1/2 TUBE,
(Before S/N 2005283-01)
8866-2006
2
CONNECTOR, (includes 8859-1205
o-ring), (S/N 2005283-01 & After)
39
9116-3139
1
FEMALE QUICK DISCONNECT,
(Before S/N 2005283-01)
9140-3413
1
FEMALE QUICK DISCONNECT, (S/N
2005283-01 & After)
40
9116-3138
1
MALE QUICK DISCONNECT, (Before
S/N 2005283-01)
9140-3414
1
MALE QUICK DISCONNECT, (S/N
2005283-01 & After)
41
9104-3125
1
DUST CAP
42
9104-3126
1
DUST CAP
43
8820-1008
2
HEX HD CAPSCREW, 1/4-20X1-3/4,
GR5
44
8856-1002
2
FLAT WASHER, 1/4
45
9104-1362
2
ORIFICE FITTING
46
9108-3249
1
CLAMP SET
47
7713-3140
1
COVER PLATE
48
7713-3177
1
HEX HD CAPSCREW
49
9112-3134
1
CAPACITY DECAL, (not shown)
50
9104-3209
2
PINCH POINT DECAL
51
8866-2106
2
ELBOW, 90 DEGREES, (swivel nut)
* Revised parts list.
ER 46361, 48255, 48655, 49939 - LK
