Gradall 534C-6 Parts Manual User Manual
Page 213

Item
Part No.
Qty.
Description Of Part
9108-3286
1
SWAY CYLINDER ASSY (includes
all items)
9108-4189
Ref
SEAL KIT (includes items 5, 6,
7, 8, 10, 11, 13, & 14)
1
9108-4185
1
TUBE ASSY
2
8867-1033
2
LUBE FITTING, STRAIGHT, 1/4-28
3
9108-4176
4
BUSHING
4
9108-4184
1
NUT
5
9108-4219
1
WEAR RING
6
9108-4220
1
SEAL
7
9108-4221
1
O-RING
8
9108-4222
1
O-RING
9
9108-4186
1
PISTON
10
9108-4223
1
BACKUP RING
11
9108-4224
1
O-RING
12
9108-4188
1
GLAND
13
9108-4225
1
SEAL
14
9108-4226
1
WIPER
15
9108-4187
1
ROD ASSY
10-7
HYDRAULIC COMPONENTS

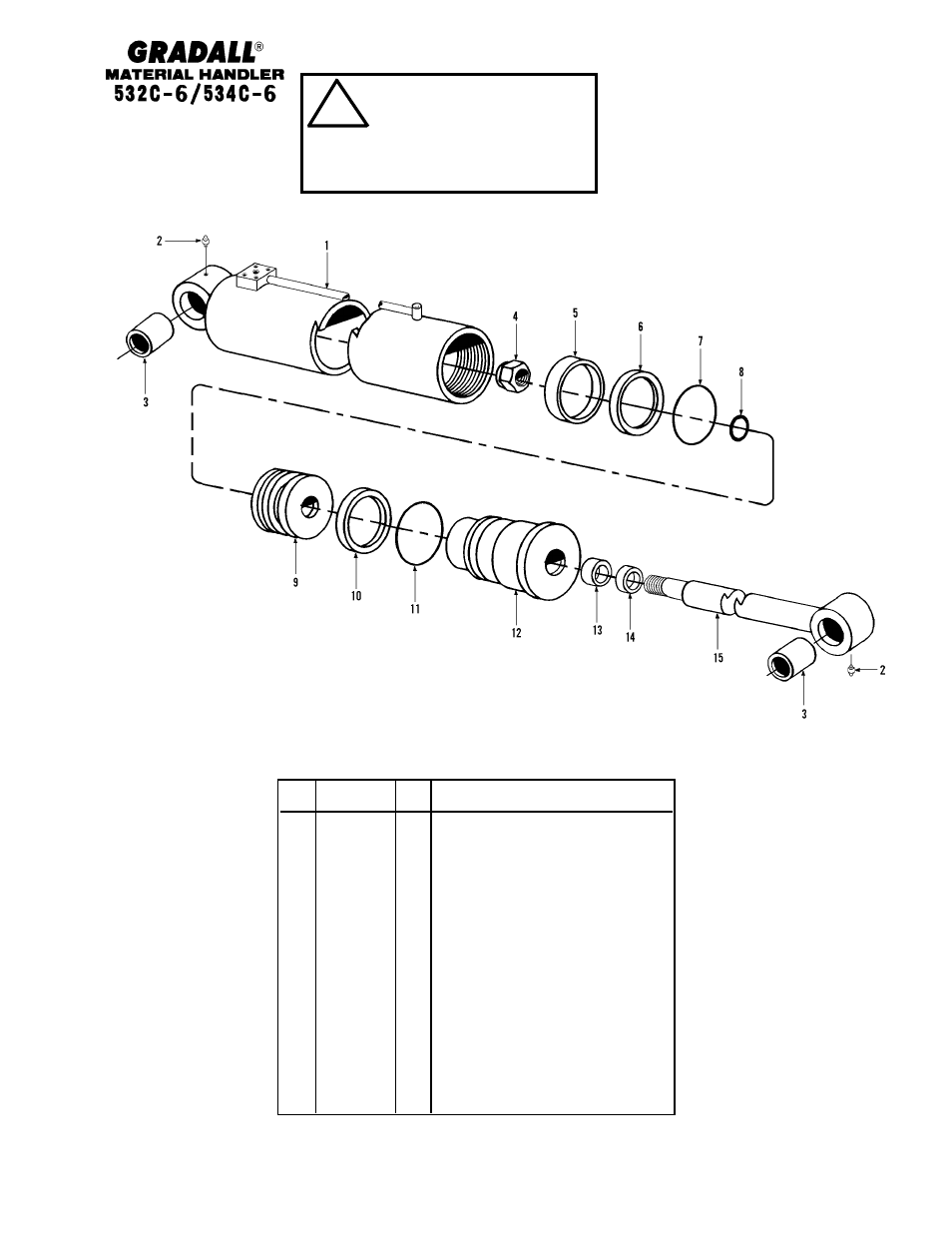

(9108-3286) Sway Cylinder - Seitz
Starting Serial No. 0188002 Thru 0288586,
0288588 Thru 0288691, 0288693,
0288694, & 0288716 Thru 0288939,
0388021 thru 0388087
Original Issue 1-90
Revised 10-20-95
* Changed S/N listings.
!
NOTE: MACHINES WITH
S/N'S THAT END IN (H) WILL HAVE
IOWA CYLINDERS, UNLESS
OTHERWISE NOTED.
KG
*
