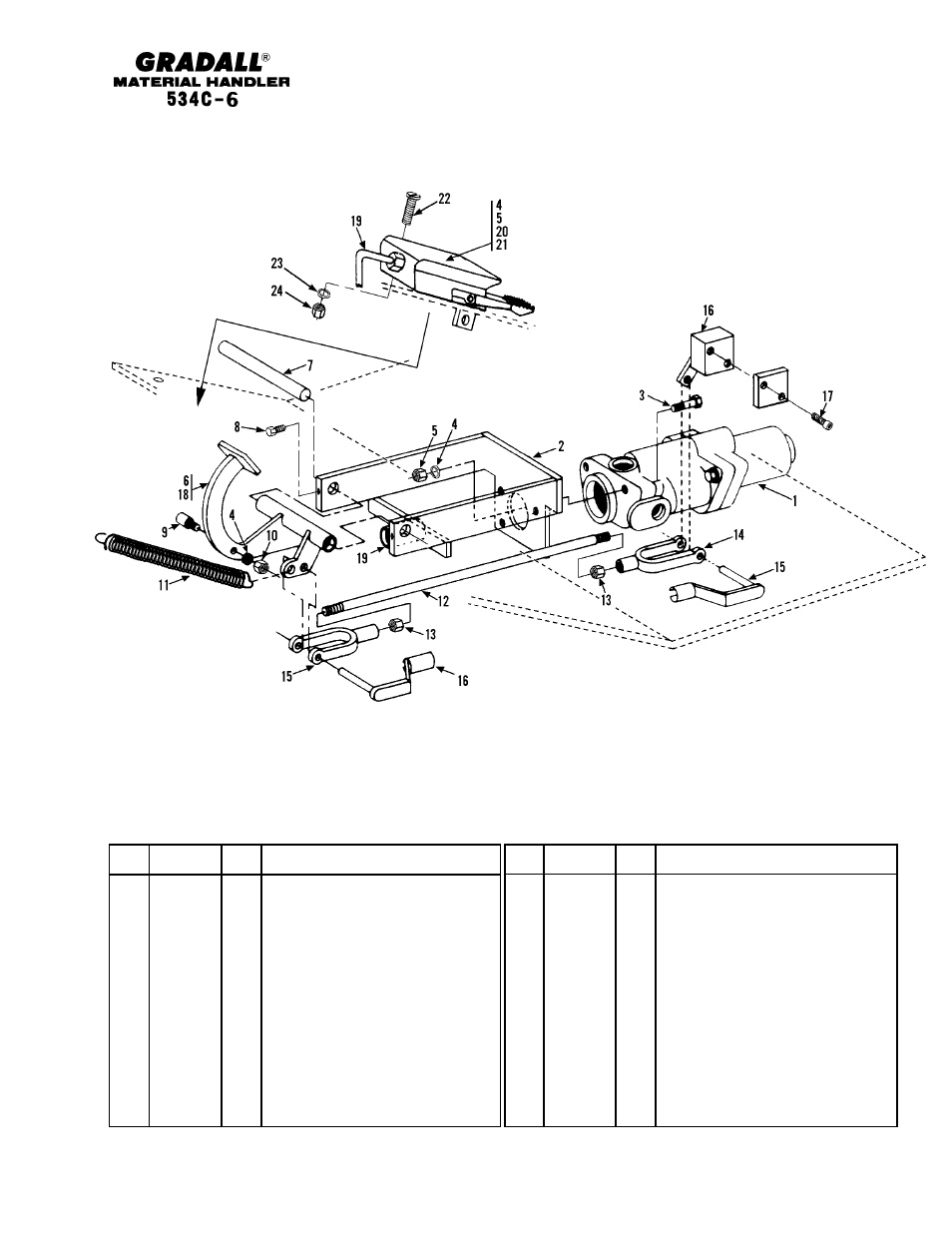

Controls brake & inching linkage – Gradall 534C-6 Parts Manual User Manual
Page 137
Item
Part No.
Qty.
Description Of Part
1
Ref
BRAKE VALVE, (see page 10-13 for
details)
2
9112-6051
1
FLOOR PLATE WELDMENT
3
8820-1022
3
HEX HD CAPSCREW, 5/16-18X1-1/2,
GR5
4
8855-1010
4
LOCKWASHER, 5/16
5
8850-1005
3
HEX NUT 5/16-18
6
9114-6059
1
BRAKE PEDAL
7
9020-0284
1
SHAFT
8
8844-1001
2
SQUARE HD SET SCREW,
1/4-20X1/2
9
9108-3312
1
CAM ROLLER
10
8850-1405
1
HEX JAM NUT, 5/16-24
11
9104-3214
1
SPRING
12
9108-1332
1
LINKAGE ROD
13
8850-1406
2
HEX JAM NUT, 3/8-24
Item
Part No.
Qty.
Description Of Part
14
8882-1004
2
YOKE END
15
9002-7987
2
CLEVIS PIN
16
Ref
INCHING VALVE (see page 10-16
for details)
17
8821-2228
2
SOCKET HD CAPSCREW,
5/16-18X1-1/4
18
9108-3136
4
BUSHING
19
Ref
DASH HARNESS (see page 11-4
for details)
20
9116-3093
1
FOOT SWITCH (includes item 21)
21
9112-4109
1
MICRO SWITCH
22
8826-1024
3
BUTTON HD CAPSCREW, 5/16-18X1,
GR5
23
8855-1010
3
LOCKWASHER, 5/16
24
8850-1005
3
HEX NUT, 5/16-18
CONTROLS
Brake & Inching Linkage
Starting Serial No. 0488238
Original Issue 8-97
MB
7-7
