ENGINE & ATTACHING PARTS

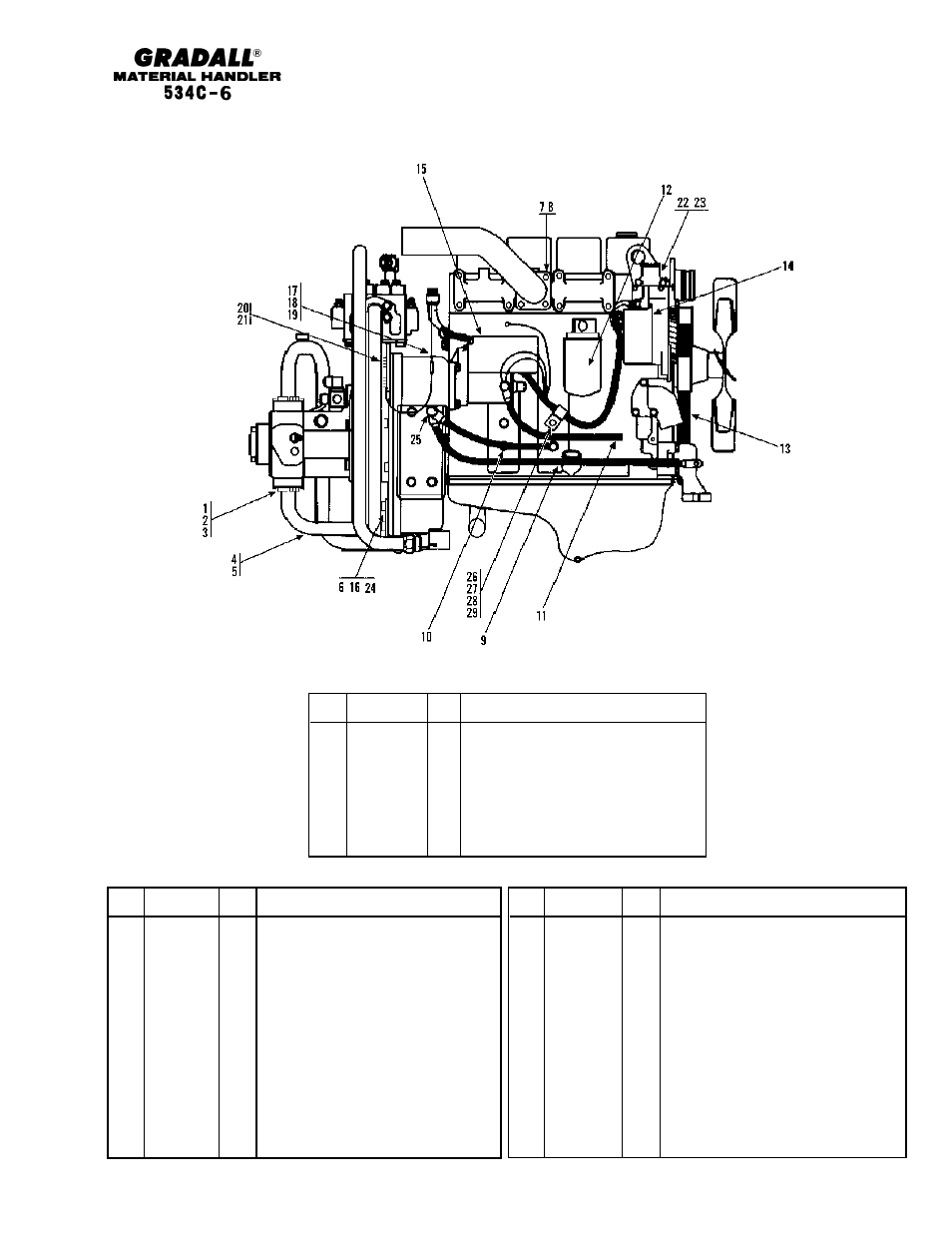

Engine Right Side View (534C-6)
Starting Serial No. 0188002
Original Issue 1-90
Revised 9-19-95
5-4
KG
* Changed upper left corner to designate model more clearly.
Item
Part No.
Qty.
Description Of Part
1
8471-2738
2
SPLIT FLANGE CLAMP
2
8320-1135
4
HEX HD CAPSCREW, 7/16-14X1-1/2,
GR8
3
8855-1012
4
LOCKWASHER, 7/16
4
9109-3001
1
TUBE ASSY
5
9108-3106
1
O-RING
6
9108-1285
1
TUBE SUPPORT
7
8319-1021
4
HEX HD CAPSCREW, M10X1.5X30
8
8319-1013
4
LOCKWASHER M10
9
9108-3115
1
NEG. GROUND CABLE
10
9108-3113
1
NEG. BATTERY CABLE
11
9108-3114
1
POS. BATTERY CABLE
12
9108-4001
1
OIL FILTER ELEMENT
13
9108-4162
1
FAN/ALT. BELT
14
9108-4002
1
ALTERNATOR
Item
Part No.
Qty.
Description Of Part
15
9108-4003
1
STARTER
16
8319-1006
4
HEX HD CAPSCREW, M10X1.5X40
17
8668-3480
1
BUTT CONNECTOR
18
8688-3260
1
3/8 EYELET
19
WIRE, #16 RED
20
8319-1021
8
HEX HD CAPSCREW, M10X1.5X30
21
8319-1013
8
LOCKWASHER, M10
22
9020-6124
1
WATER TEMP, SENDER
23
8871-1384
1
REDUCING BUSHING, 1/2X1/4
24
8856-1109
4
FLAT WASHER, 3/8
25
8319-1032
1
HEX HD CAPSCREW, M12X1.75X35
26
8319-1004
1
HEX HD CAPSCREW, M12X1.75X30
27
8319-1010
1
LOCKWASHER, M12
28
8856-1111
1
FLAT WASHER, 1/2
29
8584-1150
1
SUPPORT CLAMP
Item
Part No.
Qty.
Description Of Part
9108-5053
1
CUMMINS ENGINE FILTER KIT,
(includes all items)
9108-4001
1
OIL FILTER
7738-3202
1
PRIMARY FUEL, FILTER ELEMENT
7738-3203
1
SECONDARY FUEL, FILTER
ELEMENT
9108-3218
1
FUEL FILTER
9020-6262
1
AIR FILTER ELEMENT
