10-1
HYDRAULIC COMPONENTS

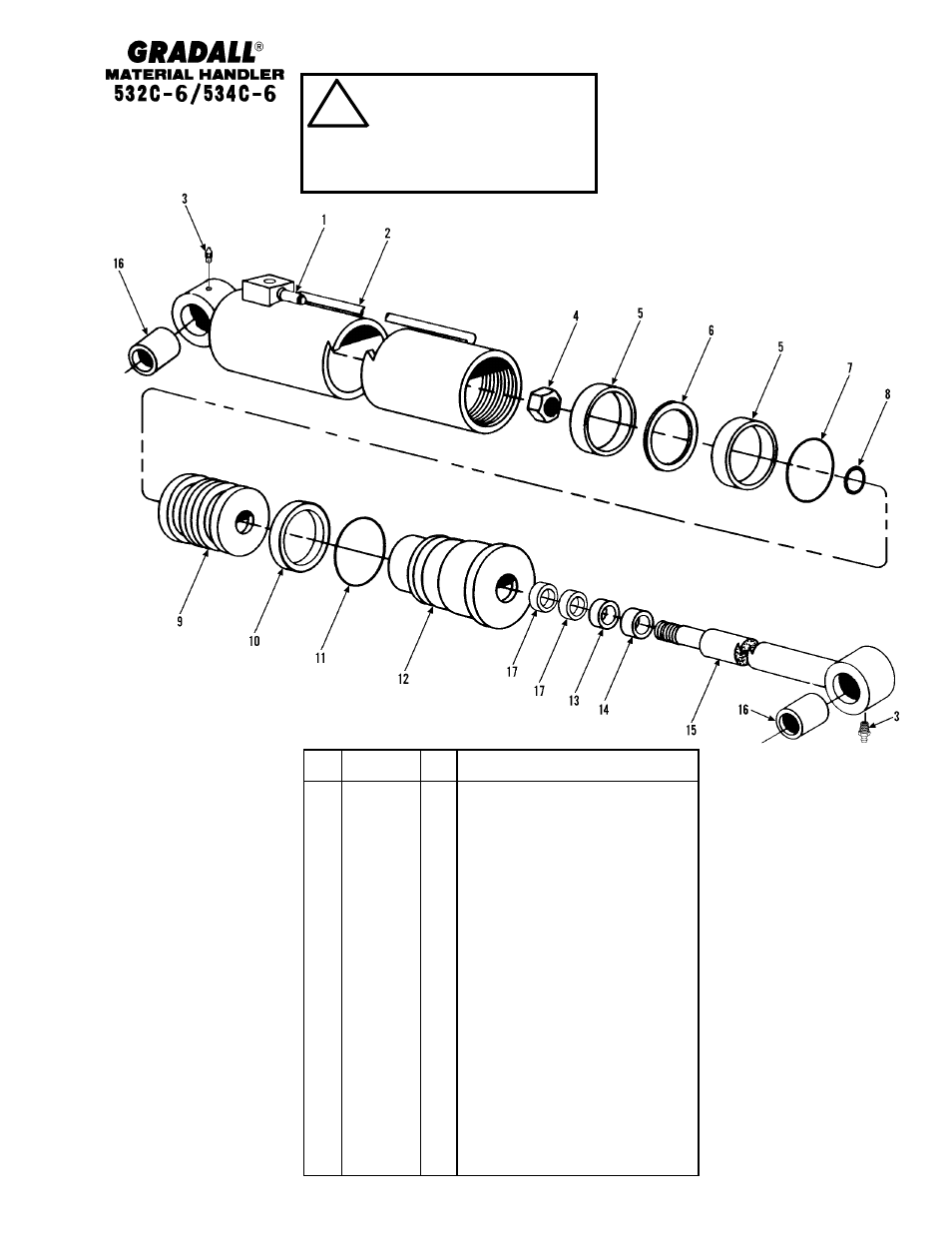

(9112-3010) Lift Cylinder - Seitz
Starting Serial No. 0188002 Thru 0288586,
0288588 Thru 0288691, 0288693,
0288694, & 0288716 Thru 0288939,
0388021 thru 0388087
Original Issue 1-90
Revised 10-20-95
Item
Part No.
Qty.
Description Of Part
9112-3010
1
LIFT CYLINDER ASSY (includes all
items)
9112-4036
1
SEAL KIT (includes items 5, 6, 7, 8,
10, 11, 13, 14 & 17)
1
9103-3430
1
COUNTERBALANCE VALVE
2
9112-4032
1
TUBE ASSY
3
8867-1033
2
LUBE FITTING, STRAIGHT, 1/4-28
4
9103-4280
1
NUT (lubricate & torque 940 ft.lbs.)
5
2
WEAR RING
6
1
SEAL
7
1
O-RING
8
1
O-RING
9
9112-4033
1
PISTON
10
1
BACK-UP RING
11
1
O-RING
12
9112-4035
1
GLAND
13
1
SEAL
14
1
WIPER
15
9112-4034
1
ROD ASSY
16
9108-4167
4
BUSHING
17
2
WEAR RING
NOTE: ONLY ITEMS WITH PART
NUMBERS ARE AVAILABLE
FOR SERVICE.
* Changed S/N listings.
!
NOTE: MACHINES WITH
S/N'S THAT END IN (H) WILL HAVE
IOWA CYLINDERS, UNLESS
OTHERWISE NOTED.
