Page 128

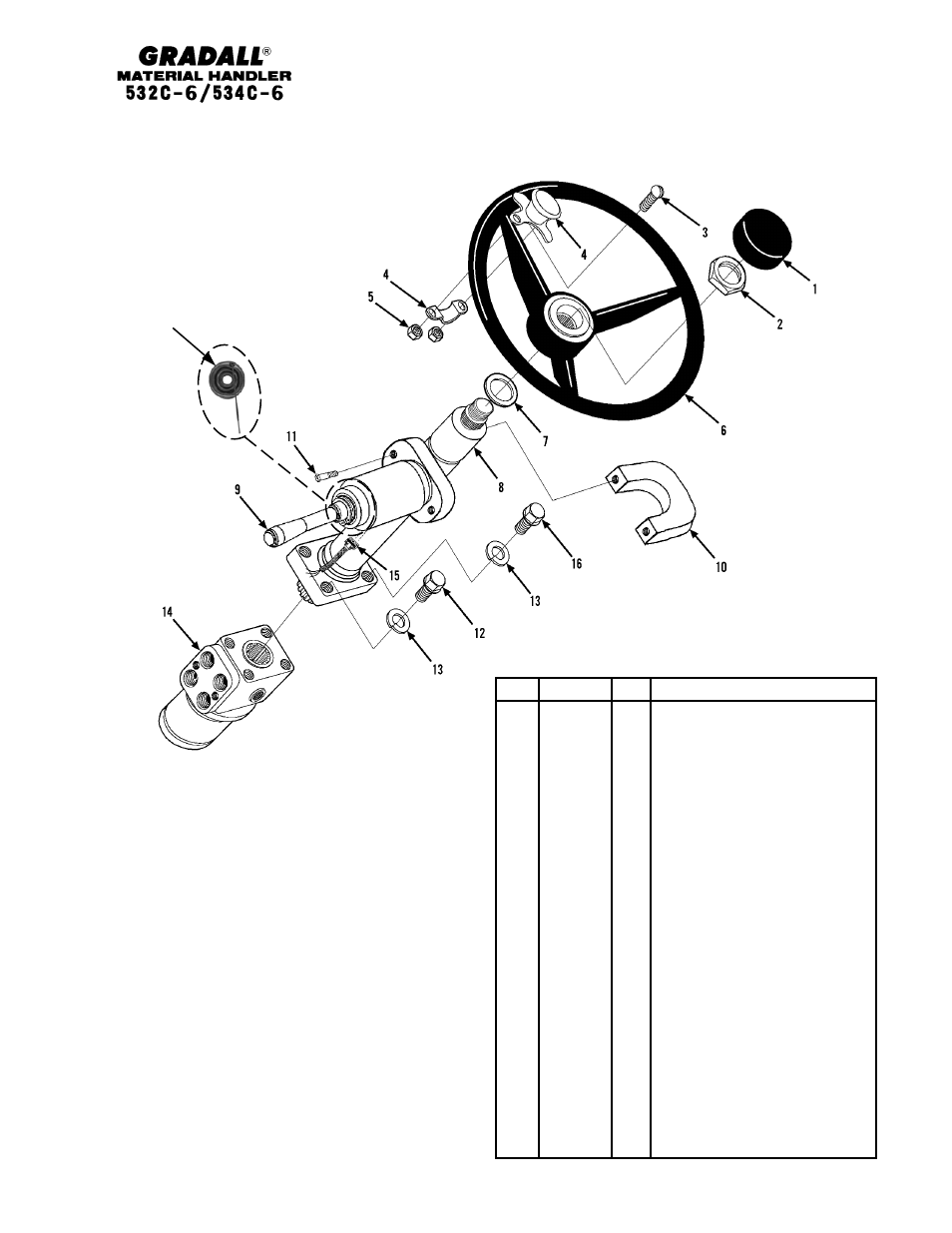

CONTROLS
Steering Column & Attaching Parts
Starting Serial No. 0488238
Original Issue 8-97
Revised 8-2-00
7-4
JP
Item
Part No.
Qty.
Description Of Part
9114-4190
Ref
STEERING CONTROL UNIT SEAL
KIT
9114-4448
1
TIE STRAP & BOOT KIT
1
9060-0274
1
STEERING CAP
2
9114-4191
1
STEERING WHEEL NUT
3
8830-1311
2
FLAT HD MACHINE SCREW,
1/4-20 x 1
4
9020-2230
1
SPINNER KNOB
5
8850-1616
2
HEX NUT, 1/4-20
6
9060-0273
1
STEERING WHEEL
7
9114-4192
1
WASHER
8
9116-3012
1
STEERING COLUMN (includes
items 2 & 7)
9
9136-3025
1
F/N/R SHIFTER ( includes item 10)
10
9114-4458
1
CLAMP SET
11
8319-1059
2
HEX HD CAPSCREW, M5X0.8,
(torque to 30-35 in.lbs.)
12
8820-1035
2
HEX HD CAPSCREW, 3/8-16X1,
GR5
13
8855-1011
4
LOCKWASHER, 3/8
14
9112-3126
1
STEERING CONTROL UNIT
15
Ref
DASH WIRING HARNESS (see
page 11-4 for details
16
8820-1033
2
HEX HD CAPSCREW, 3/8-16X3/4,
GR5
NOTE: ONLY ITEMS WITH PART
NUMBERS ARE AVAILABLE
FOR SERVICE.
NOTE: When ordering item 9,
replace screws provided
from vendor with item 11.
*
Tie Strap &
Boot Kit
* Added part number to item 10.
