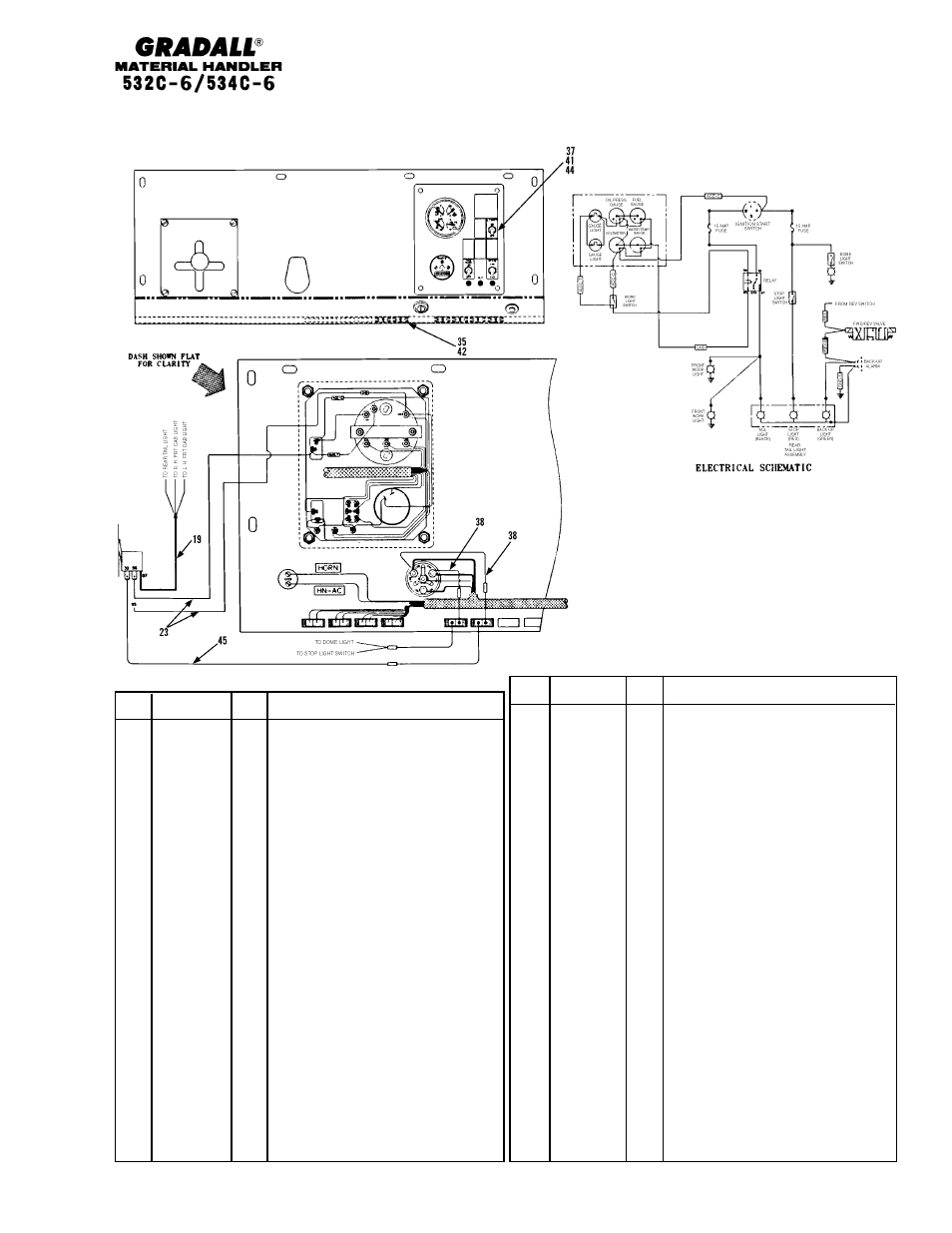

Gradall 534C-6 Parts Manual User Manual
Page 302
13-5
PCN 000221-SVC
Item
Part No.
Qty.
Description Of Part
26
9136-5045
2
TAIL LIGHT ASSEMBLY, (includes the
following seven items)
9112-3065
1
TAIL LIGHT
8666-1147
38"
WIRE, 16 GAUGE, (black)
8666-1149
38"
WIRE, 16 GAUGE, (green)
8666-1152
38"
WIRE, 16 GAUGE, (red)
8668-3480
3
BUTT CONNECTOR
8203-3996
45"
WIRE LOOM
8668-3122
2
TIE WRAP
27
8820-1108
1
HEX HD CAPSCREW, 3/4-10X1-1/4,
GR5
28
8856-1115
1
FLAT WASHER, 3/4
29
8855-1016
1
LOCKWASHER, 3/4
30
8096-3058
1
W. PACK CONNECTOR, (shroud)
31
9114-1364
1
JUMPER WIRE
32
7738-3410
1
RELAY
33
8832-1039
1
SELF TAP SCREW, #10-32X1/2
34
9114-3210
1
TAIL LIGHT HARNESS
35
7736-3268
2
FUSE, 15 AMP
36
8096-3062
1
W. PACK CONNECTOR, (shroud)
37
7738-3470
1
BOOT
38
9114-1259
2
JUMPER WIRE
39
9114-1197
1
MOUNTING TAB
40
9114-3117
1
STOPLIGHT SWITCH
41
7738-3467
1
LIGHT SWITCH
42
9114-3108
2
FUSE HOLDER
43
AR
WIRE LOOM, (use on all wires)
44
9136-3009
1
LIGHTS ON/OFF DECAL
45
9114-1266
1
JUMPER WIRE
Item
Part No.
Qty.
Description Of Part
9114-5098
1
WORK LIGHT PACKAGE, (includes
all items)
1
8096-3050
2
UTILITY FLOOD LIGHT
2
9114-1182
1
R.H. LIGHT SUPPORT
3
9114-1183
1
L.H. LIGHT SUPPORT
4
8096-3055
4
W. PACK CONNECTOR, (tower)
5
8820-1035
2
HEX HD CAPSCREW, 3/8-16X1, GR5
6
8856-1109
2
FLAT WASHER, 3/8
7
8855-1011
2
LOCKWASHER, 3/8
8
8850-1006
2
HEX NUT, 3/8-16
9
9002-7319
4
TAP SCREW, 1/4-20X1
10
8688-3260
2
EYELET
11
8096-3056
3
W. PACK CONNECTOR, (shroud)
12
8096-3068
3
W. PACK CONNECTOR, (female pin)
13
9002-7214
8
RUBBER GROMMET
14
9101-1009
1
MOUNTING BRACKET
15
9002-9955
1
RUBBER GROMMET
16
8832-1022
2
SELF TAPPING SCREW, #8-32X3/8
17
2486-1167
1
INTERIOR LIGHT
18
8096-3069
9
W. PACK CONNECTOR, (male pin)
19
9114-3270
1
LIGHT HARNESS
20
8668-3122
6
TIE WRAP
21
9105-3419
19
TIE WRAP
22
8096-3066
12
W. PACK CONNECTOR, (cable seal)
23
9114-1265
2
JUMPER WIRE
24
9112-1145
1
TAIL LIGHT HOUSING
25
9112-1146
1
TAIL LIGHT BRACKET
OPTIONAL EQUIPMENT
(9114-5098) Work Light Package
Starting Serial No. 0488238
Original Issue 10-97
Revised 10-5-00
USE ITEM 21 AS NEEDED TO TIE
WIRES UNDER DASH
USE ITEM 43 AS NEEDED TO COVER
ALL WIRES IN LIGHT PACKAGE
* Revised illustration and parts list.
