MISCELLANEOUS

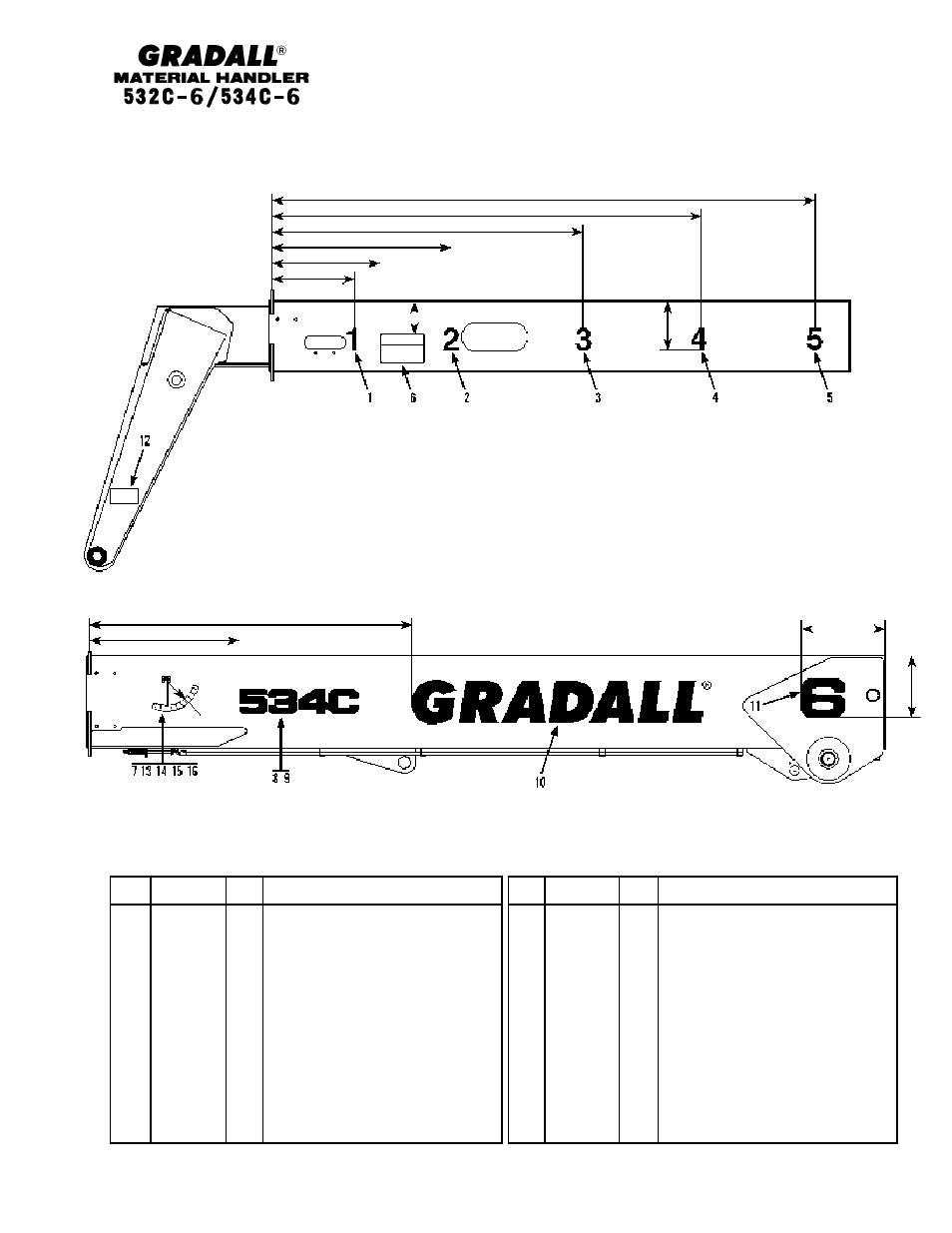

Boom Decals
Starting Serial No. 0188002 thru 0488237
Original Issue 1-90
Revised 2-5-98
Item Part No. Qty. Description Of Part
9108-4283 1 522 & 34C COMMON DECAL KIT
(includes all items on page 12-2 except
items 11, 13, 18 & 26 thru 29. Also
includes all items except items 8, 9, 11
& items 13 thru 16 on page 12-3)
1 9100-3016 1 "1" DECAL, STANDARD (white)
9104-3134 1 "1" DECAL, OPTIONAL (black)
2 9100-3018 1 "2" DECAL, STANDARD (white)
9104-3135 1 "2" DECAL, OPTIONAL (black)
3 9112-3042 1 "3" DECAL, STANDARD (white)
9112-3043 1 "3" DECAL, OPTIONAL (black)
4 9100-3020 1 "4" DECAL, STANDARD (white)
9104-3136 1 "4" DECAL, OPTIONAL (black)
5 9112-3044 1 "5" DECAL, STANDARD (white)
9112-3045 1 "5" DECAL, OPTIONAL (black)
14
1/2"
(TYP)
17 3/16"
(TYP) 67"
31 1/2"
6 7/8" RAD.
9' 5" (113")
7' 5" (89")
65"
38 1/4"
23" (TYP)
17"
4 1/4"
(TYP).
9 1/4"
(TYP).
Item Part No. Qty. Description Of Part
6 7702-3009 2 HOLE WARNING DECAL
7 9100-3031 1 BOOM ANGLE DECAL (white)
8 9112-3035 2 534C DECAL, STANDARD (white)
9112-3036 2 534C DECAL, OPTIONAL (black)
9 9113-3001 2 532C DECAL, STANDARD (white)
9113-3002 2 532C DECAL, OPTIONAL (black)
10 9112-3037 2 GRADALL DECAL, STANDARD (white)
9112-3038 2 GRADALL DECAL, OPTIONAL (black)
11 9103-3018 2 "6" DECAL, STANDARD (white)
9103-3218 2 "6" DECAL, OPTIONAL (black)
12 9103-3023 1 QUICK SWITCH DECAL
13 9020-0445 1 PENDULUM
14 9020-0688 1 BEARING
15 9002-6491 1 SHOULDER BOLT, 1/4-20
16 8856-1108 1 FLAT WASHER, 5/16
JH 12-3
*Revised serial number due to addition of new design.
