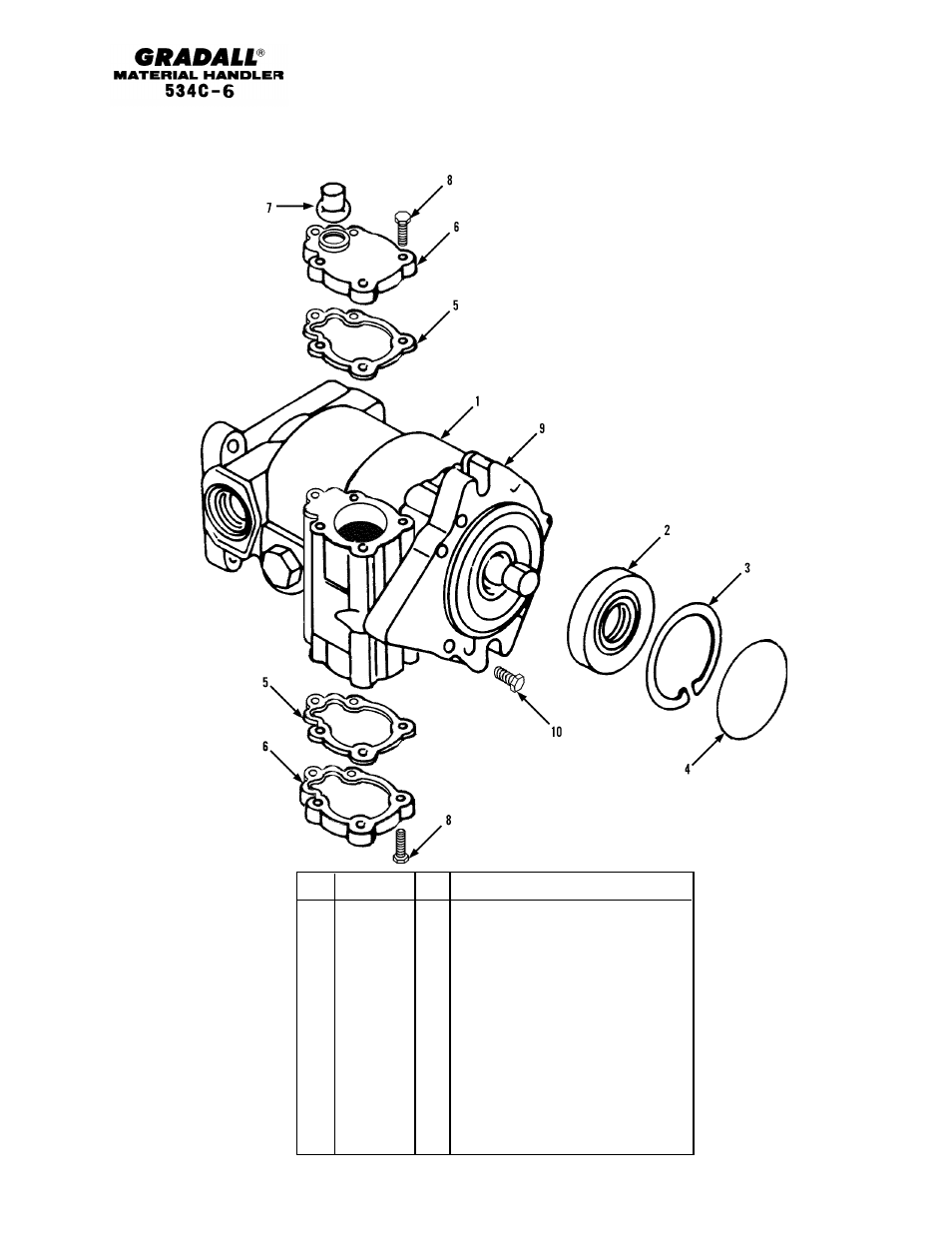

HYDRAULIC COMPONENTS
(9108-3401) Rear Drive Motor
Starting Serial No. 0188002
Original Issue 1-90
Revised 9-8-00
SVC 10-10 * Revised illustration and parts list.
Item Part No. Qty. Description Of Part
1 9108-3401 1 REAR DRIVE MOTOR, (includes all
items)
9108-4358 SEAL KIT
2 9108-4214 1 LIP SEAL
3 9108-4215 2 RETAINING RING
4 9002-3155 1 O-RING
5 9108-4365 2 GASKET
6 9108-4364 2 5 BOLT COVER
7 9108-4366 1 PLUG
8 10 BOLT, (torque to 4 ft. lbs.)
9 9108-4367 1 7 BOLT COVER
10 7 BOLT
NOTE: ONLY ITEMS WITH PART
NUMBERS ARE AVAILABLE
FOR SERVICE
