ENGINE & ATTACHING PARTS

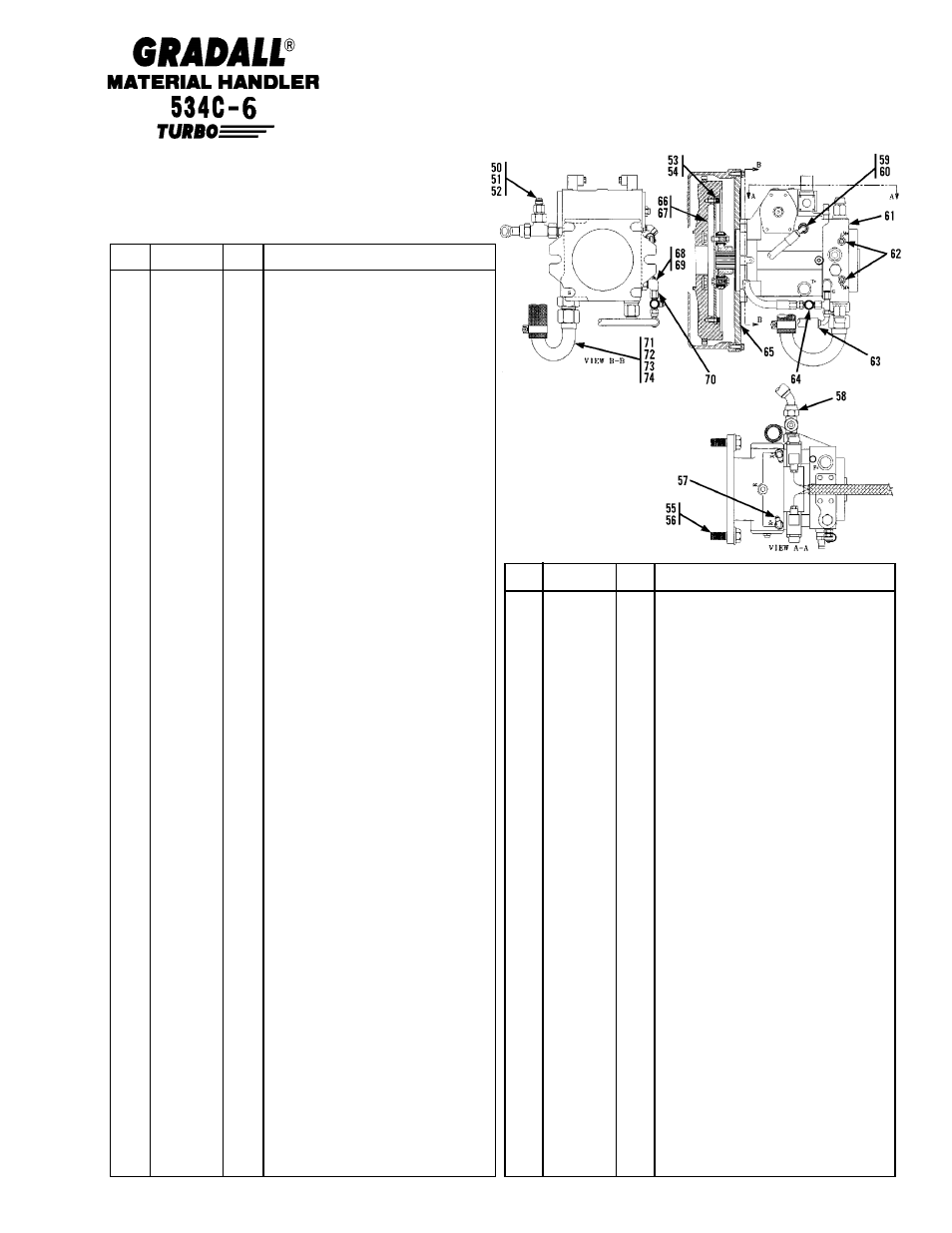

(9132-5031) Engine Right Side View (534C-6 TURBO)
Starting Serial No. 0488238
Original Issue 10-97
Revised 6-29-99
5-4
KG
Item
Part No.
Qty.
Description Of Part
9132-5031
Ref
ENGINE ASSY(includes items
on pages 5-3 and 5-4)
1
9108-3418
1
TUBE ASSY
2
8471-2738
8
SPLIT FLANGE CLAMP
3
8320-1135
4
HEX HD CAPSCREW, 7/16-14X1-1/2
4
8855-1012
16
LOCKWASHER, 7/16
5
9116-3201
1
TUBE ASSY
6
9108-3266
1
TUBE ASSY
7
8866-2105
1
ELBOW, 90 DEGREES (swivel nut)
8
8319-1021
5
HEX HD CAPSCREW, M10X1.5X30
9
8319-1013
12
LOCKWASHER, M10
10
9114-3124
1
NEGATIVE BATTERY CABLE
11
9114-3099
1
POSITIVE BATTERY CABLE
12
Ref
ENGINE MOUNT (see page 5-3 for
details)
13
9108-6130
1
TUBE SUPPORT
14
9114-3314
1
WATER TEMPERATURE SENDER
15
9108-3106
4
O-RING
16
Ref
TRACTION LOCK VALVE (see page
10-25 for details)
17
8866-2224
2
SWIVEL NUT BRANCH TEE,
3/8 TUBE
18
8866-2005
2
CONNECTOR (includes item 22)
19
8820-1066
2
HEX HD CAPSCREW, 1/2-13X1-1/4,
GR5
20
8855-1013
2
LOCKWASHER, 1/2
21
9114-6058
1
FLOW DIVIDER BRACKET
22
8859-1204
2
O-RING
23
8866-2421
2
ELBOW, 45 DEGREES (includes
o-ring)
8859-1212
2
O-RING
24
9114-6037
1
EXHAUST TUBE
25
8368-3175
1
MUFFLER CLAMP
26
8859-1204
1
O-RING
27
9108-3503
1
ALTERNATOR
28
9108-3456
1
STARTER
29
8871-1385
1
REDUCER BUSHING
30
8471-8208
1
HOSE ASSY
31
9108-3504
1
REGULATOR
32
9040-2427
1
STARTER SOLENOID (relay),
(mounts on frame)
8855-1009
2
LOCKWASHER, 1/4
8820-1003
2
HEX HD CAPSCREW,
1/4-20X3/4, GR5
33
8320-1155
12
HEX HD CAPSCREW, 7/16-14X1-3/4
34
9020-5205
1
JUMPER WIRE
35
8856-1109
7
WASHER, 3/8
36
8319-1006
5
HEX HD CAPSCREW, M10X1.5X40
37
8319-1004
2
HEX HD CAPSCREW, M12X1.75X30
38
8319-1010
2
LOCKWASHER, M12
39
8856-1111
3
WASHER, 1/2
40
8471-7930
2
HOSE ASSY
41
9114-3122
1
SUPPORT CLAMP, 5/8
42
9002-7187
1
TY-RAP
43
8871-1284
1
PIPE PLUG, 3/4
44
8859-1204
1
O-RING
45
8319-1005
2
HEX HD CAPSCREW, M10X1.5X45
46
9108-6131
1
TUBE SUPPORT
Item
Part No.
Qty.
Description Of Part
47
9020-5792
1
CUSHION CLAMP
48
8471-8221
1
HOSE ASSY
49
8866-2064
1
ELBOW, 90 DEGREES (includes
item 26)
50
8866-2242
1
SWIVEL NUT RUN TEE, 3/4 TUBE
51
8365-1133
1
REDUCER W/ADAPTER
52
8866-2008
1
CONNECTOR (includes o-ring)
8859-1207
1
O-RING
53
8821-1068
8
SOCKET HD CAPSCREW,
3/8-16XX5/8
54
8855-1011
4
LOCKWASHER, 3/8
55
8820-1112
2
HEX HD CAPSCREW, 3/4-10X2-1/4,
GR5
56
9002-7473
2
HARDENED WASHER, 3/4
` 57
9002-7906
2
ELBOW, 90 DEGREES
58
8471-7839
1
HOSE ASSY
59
8866-2018
1
CONNECTOR (includes o-ring)
8859-1205
1
O-RING
60
8471-7341
1
HOSE ASSY
61
Ref
HYDROSTATIC TRANS. PUMP (see
page 10-18 for details)
62
9105-3020
2
TEST COUPLING
63
8471-7524
1
HOSE ASSY
64
8471-7852
1
HOSE ASSY
65
9108-3019
1
PUMP MOUNT & FLYWHEEL
COUPLING (includes item 66 & 67)
66
9108-4311
1
FLEX PLATE
67
9108-4312
1
COUPLER (bolts included)
68
9108-3222
1
STRAIGHT THREAD REDUCING
CONNECTOR (includes item 69)
69
8859-1207
1
O-RING
70
8866-2239
2
SWIVEL NUT RUN TEE, 3/8 TUBE
71
8866-2011
1
CONNECTOR (includes o-ring)
8859-1210
1
O-RING
72
9114-3087
1
INTAKE TUBE
73
9108-3246
1
HOSE ASSY
74
9002-8695
2
BAND CLAMP
*Revised position of arrows on items 66 & 67 in art.
