HYDRAULIC COMPONENTS

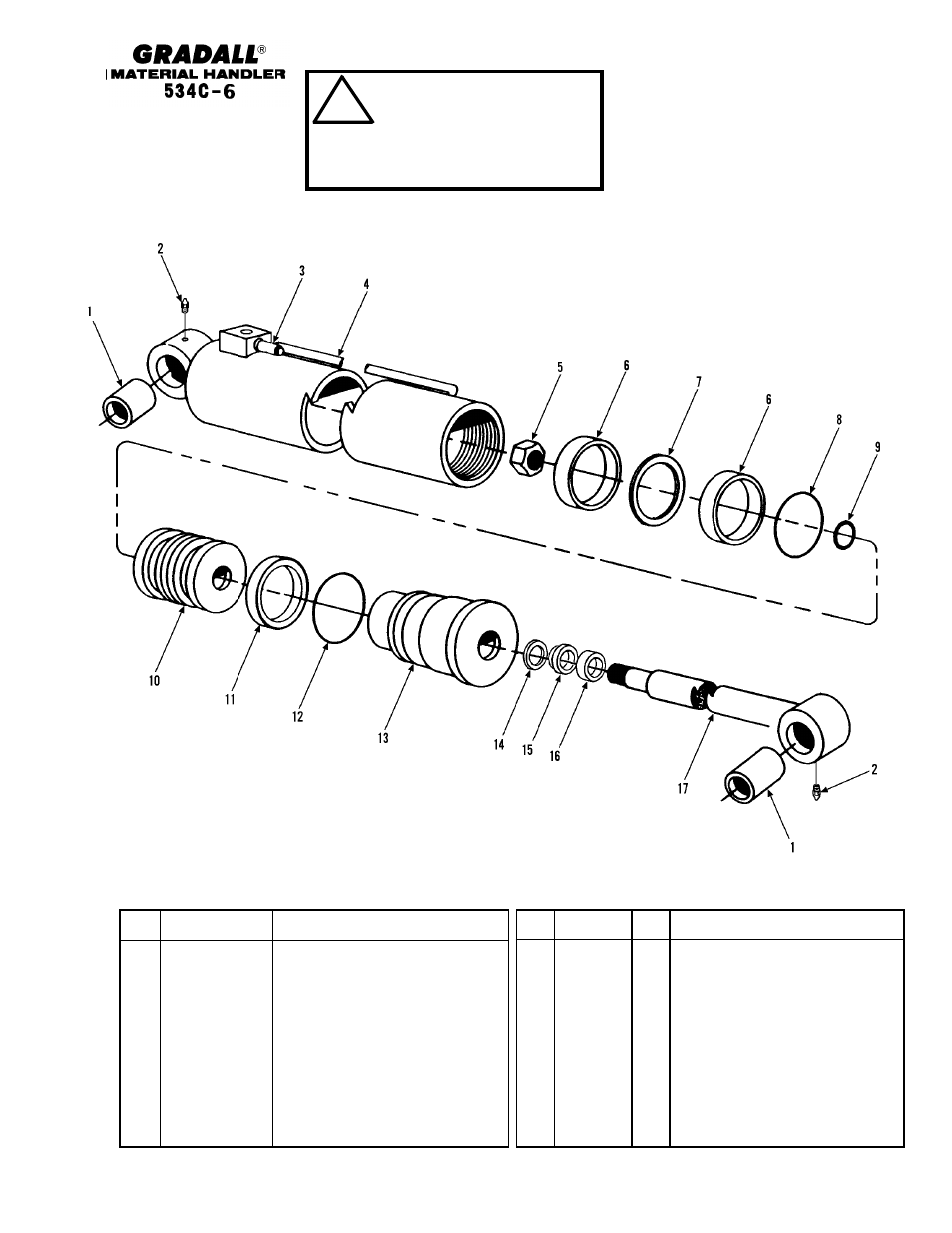

(9108-3472) Tilt Cylinder - Iowa

Starting Serial No. 0288587, 0288692

0288695 Thru 0288715 &

0288940H Thru 0388020H

Original Issue 7-95

Revised 6-27-07

!

NOTE: MACHINES WITH

S/N'S THAT END IN (H) WILL HAVE
IOWA CYLINDERS, UNLESS
OTHERWISE NOTED.

Item

Part No.

Qty.

Description Of Part

9108-3472

1

TILT CYLINDER ASSY (includes all
items)

9103-4337

1

SEAL KIT (includes items 6 thru 9,
11, 12 & 14 thru 16)

1

9140-4352

2

BUSHING

2

9114-4128

2

GREASE FITTING

3

9108-3473

1

COUNTERBALANCE VALVE

4

9112-4076

1

CASE ASSY

5

9106-4017

1

LOCKNUT (torque to 650-750 ft.lbs.)

6

2

WEAR RING

7

1

SEAL

8

1

O-RING

9

1

O-RING

Item

Part No.

Qty.

Description Of Part

10

9104-4274

1

PISTON

11

1

BACK-UP RING

12

1

O-RING

13

9112-4077

1

GLAND

14

1

STEP SEAL

15

1

U-CUP

16

1

WIPER

17

9112-4078

1

SHAFT ASSY

NOTE: ONLY ITEMS WITH PART
NUMBERS ARE AVAILABLE
FOR SERVICE.

10-3

JM

* Revised part number on item 1.

*
