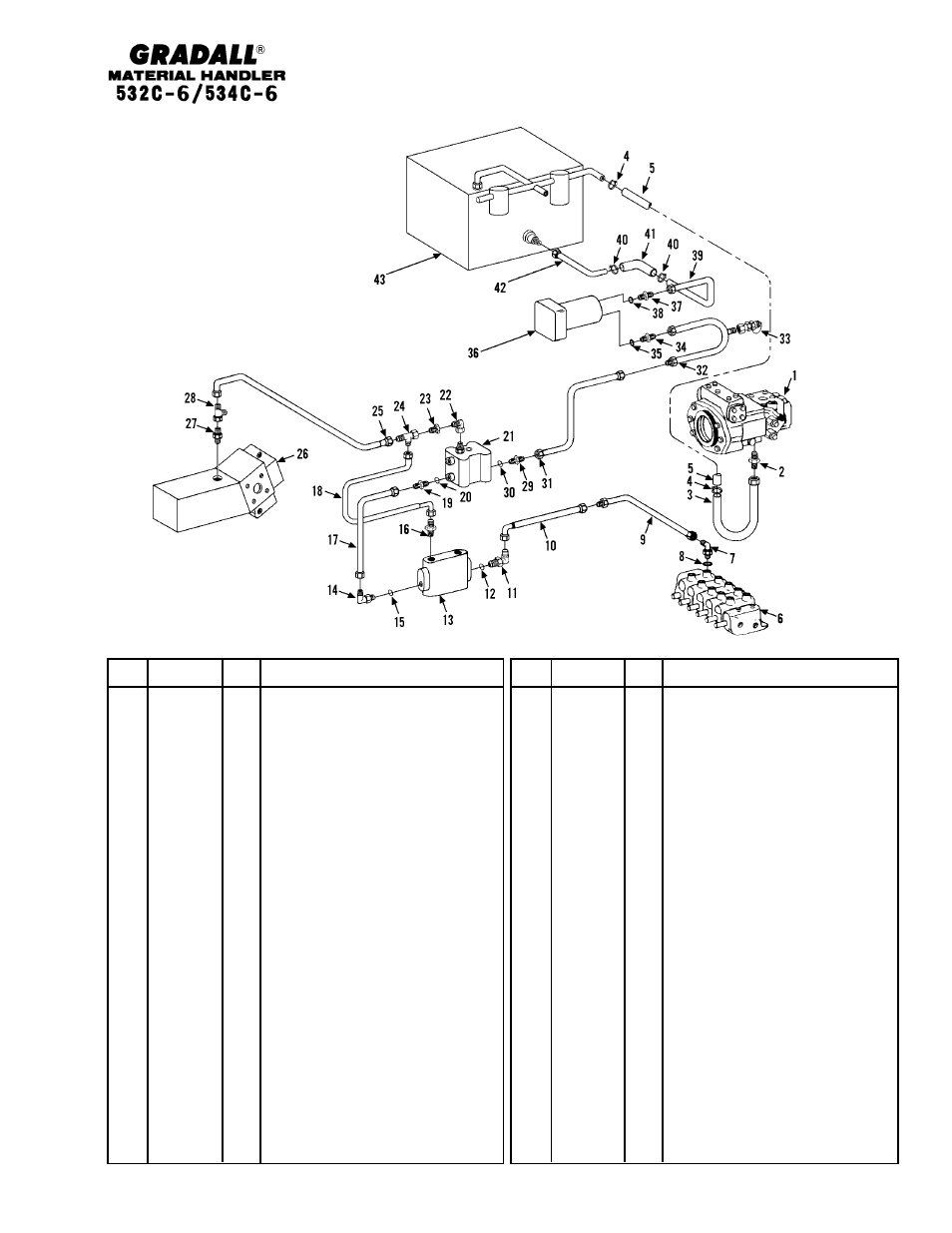

HYDRAULIC CIRCUITS
Oil Supply & Pressure Lines
Starting Serial No. 0188002
Original Issue 1-90
Revised 10-24-03
Item Part No. Qty. Description Of Part
1 Ref HYDROSTATIC DRIVE
TRANSMISSION, (see page 10-18 for
details)
2 9108-3245 1 STR. THREAD CONNECTOR
3 9108-3118 1 INTAKE TUBE
4 9002-8695 2 BAND CLAMP
5 9108-3246 1 HOSE
6 Ref MAIN HYDRAULIC CONTROL VALVE
- 534C-6 (see page 10-9 for details)
7 8866-2067 1 ELBOW, 90 DEGREES (includes item
8)
8 8859-1207 1 O-RING
9 9108-3232 1 TUBE ASSY
10 8471-7931 1 HOSE ASSY
11 8866-2061 1 ELBOW, 90 DEGREES (includes item
12)
12 8859-1209 1 O-RING
13 Ref PRIORITY FLOW CONTROL VALVE,
(see page 10-11 for details)
14 8866-2061 1 ELBOW, 90 DEGREES (includes
item 15)
15 8859-1209 1 O-RING
16 8366-1316 1 STR. THREAD CONNECTOR
17 9108-3293 1 TUBE ASSY
18 8471-7803 1 HOSE ASSY
19 8366-2008 1 STR. THREAD CONNECTOR, (includes
item 20)
20 8859-1207 1 O-RING
Item Part No. Qty. Description Of Part
21 Ref FLOW DIVIDER VALVE, (see page
10-12 for details)
22 8866-2106 1 ELBOW, 90 DEGREES (swivel nut)
23 8688-3469 1 REDUCER
24 8866-2239 1 SWIVEL NUT RUN TEE, 3/8 TUBE
25 8471-7832 1 HOSE ASSY
26 Ref FRT. DRIVE MOTOR ASSY - 534C-6
(see page 10-20 for details)
Ref FRT. DRIVE MOTOR ASSY -532C-6
(see page 10-19 for details)
27 9108-3306 1 ADAPTER (includes o-ring)
8859-1206 1 O-RING
28 8866-2239 1 SWIVEL NUT RUN TEE, 3/8 TUBE
29 8866-2008 1 CONNECTOR (includes item 30)
30 8859-1207 1 0-RING
31 8471-7907 1 HOSE ASSY
32 9108-3233 1 TUBE ASSY
33 7713-3089 1 TEST FITTING
34 8866-2010 1 CONNECTOR (includes item 35)
35 8859-1209 1 O-RING
36 Ref MAIN HYDRAULIC PUMP, (see page
10-17 for details)
37 8866-2011 1 CONNECTOR (includes item 38)
38 8859-1210 1 O-RING
39 9108-3144 1 SUCTION TUBE
40 9002-8482 2 HOSE CLAMP
41 7713-3166 1 HOSE ASSY
42 9108-3145 1 SUCTION TUBE
43 Ref HYDRAULIC RESERVOIR ASSY
(see page 10-22 for details)
* Changed description on item 5. GP 9-1
*
