3-2 KG
1). Add bearing pad shims & spacers as required to shim
boom to within 1/16" of a tight fit. Amounts of shims can vary at
each shim point. When a shim is used with a pad, a spacer must be
inserted between pad & shim. No pads shall sit directly on slotted
surface of shims.
2). The length of pad bolts depend on the amount of shims
used. Bolt cannot extend past chamfer on bearing.
NOTE:
Item Part No. Qty. Description Of Part
1 9112-1082 8 SHIM (.06 thick)
2 9112-1083 4 SPACER (.06 thick)
3 9112-3019 4 BEARING PAD
4 8820-1534 4 HEX HD CAPSCREW, 3/8-24X1,
GR5 (torque to 32-37 ft. lbs.)
8820-1535 AR HEX HD CAPSCREW, 3/8-24X1-1/4
GR5 (torque to 32-37 ft. lbs.)
5 8856-1109 16 FLAT WASHER, 3/8
6 9108-3063 2 BEARING PAD
7 9002-7471 6 HARDENED WASHER, 1/2
8 8820-1562 6 HEX HD CAPSCREW, 1/2-20X3/4,
GR5 (torque to 68-78 ft. lbs.)
8820-1564 AR HEX HD CAPSCREW, 1/2-20X1,
GR5 (torque to 68-78 ft. lbs.)
9 9108-1172 2 SPACER (.132 thick)
11 9112-3021 2 BEARING PAD
Item Part No. Qty. Description Of Part
12 8820-1532 8 HEX HD CAPSCREW, 3/8-24X3/4,
GR5 (torque to 32-37 ft. lbs.)
8820-1534 AR HEX HD CAPSCREW, 3/8-24X1
GR5 (torque to 32-37 ft. lbs.)
13 9112-6012 1 BOOM, SECOND SECTION
14 9108-3297 2 BEARING PAD
15 9108-1447 2 SPACING (.132 thick)
16 9112-1081 2 SHIM (.06 thick)
17 8820-1565 4 HEX HD CAPSCREW, 1/2-20X1-1/4,
GR5, (torque to 68-78 ft. lbs.)
8820-1566 AR HEX HD CAPSCREW, 1/2-20X1-1/2,
GR5, (torque to 68-78 ft. lbs.)
18 9020-5870 4 SHIM (.06 thick)
19 9103-1236 2 SPACER (.06 thick)
20 9103-3186 2 BEARING PAD
21 8820-1538 4 HEX HD CAPSCREW, 3/8-24X2,
GR5 (torque to 32-37 ft. lbs.)

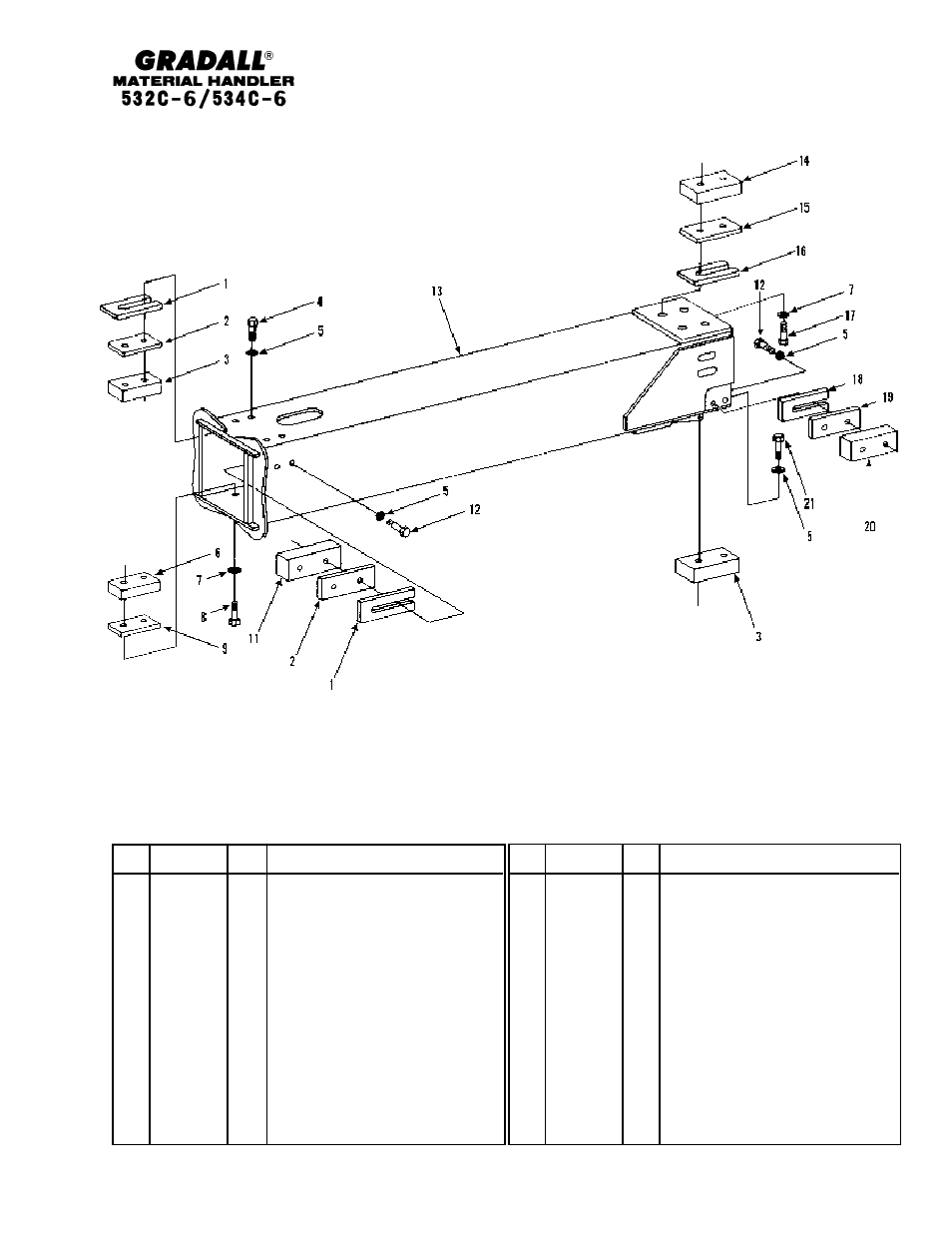

BOOM
Second Boom Section
Starting Serial No. 0188002
Original Issue 1-90
Revised 9-12-95
* Changed logo in upper left, changed part numbers on items 8 & 20, changed qty. on items 7 & 8.
Removed item 10. Added note.
*
*
*
