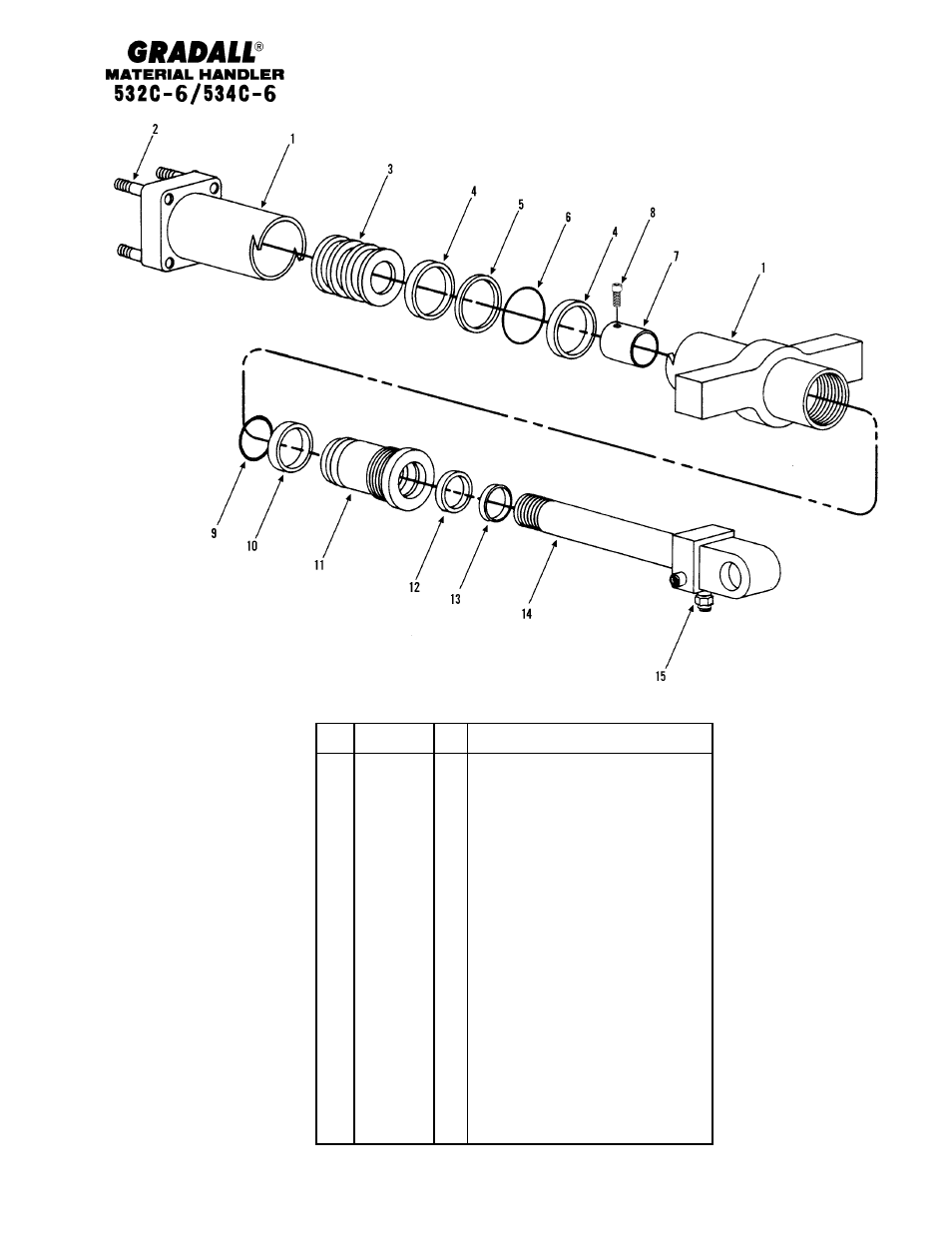

Hydraulic components crowd cylinder – Gradall 534C-6 Parts Manual User Manual
Page 203
10-2
Item
Part No.
Qty.
Description Of Part
9112-3009
Ref
CROWD CYLINDER ASSY (includes
all items)
9112-4044
1
SEAL KIT (includes items 4, 5, 6, 9,
10, 12 & 13)
1
9112-4040
1
TUBE ASSY
2
9112-4038
1
STUD
3
9112-4037
1
PISTON (torque to 400 ft.lbs.)
4
2
WEAR RING
5
1
SEAL
6
1
O-RING
7
9112-4042
1
STOP TUBE
8
9112-4043
1
SET SCREW
9
1
O-RING
10
1
BACK-UP RING
11
9112-4041
1
GLAND
12
1
BACK-UP RING
13
1
WIPER
14
9112-4039
1
ROD ASSY
15
9103-4308
1
COUNTERBALANCE VALVE
9104-4524
1
COUNTERBALANCE VALVE SEAL
KIT
NOTE: ONLY ITEMS WITH PART
NUMBERS ARE AVAILABLE
FOR SERVICE.
*
* Added counterbalance valve seal kit
KG
HYDRAULIC COMPONENTS
Crowd Cylinder
Starting Serial No. 0188002
Original Issue 1-90
Revised 8-11-95
