Gradall 534C-6 Parts Manual - Manual (Page 131)

CONTROLS

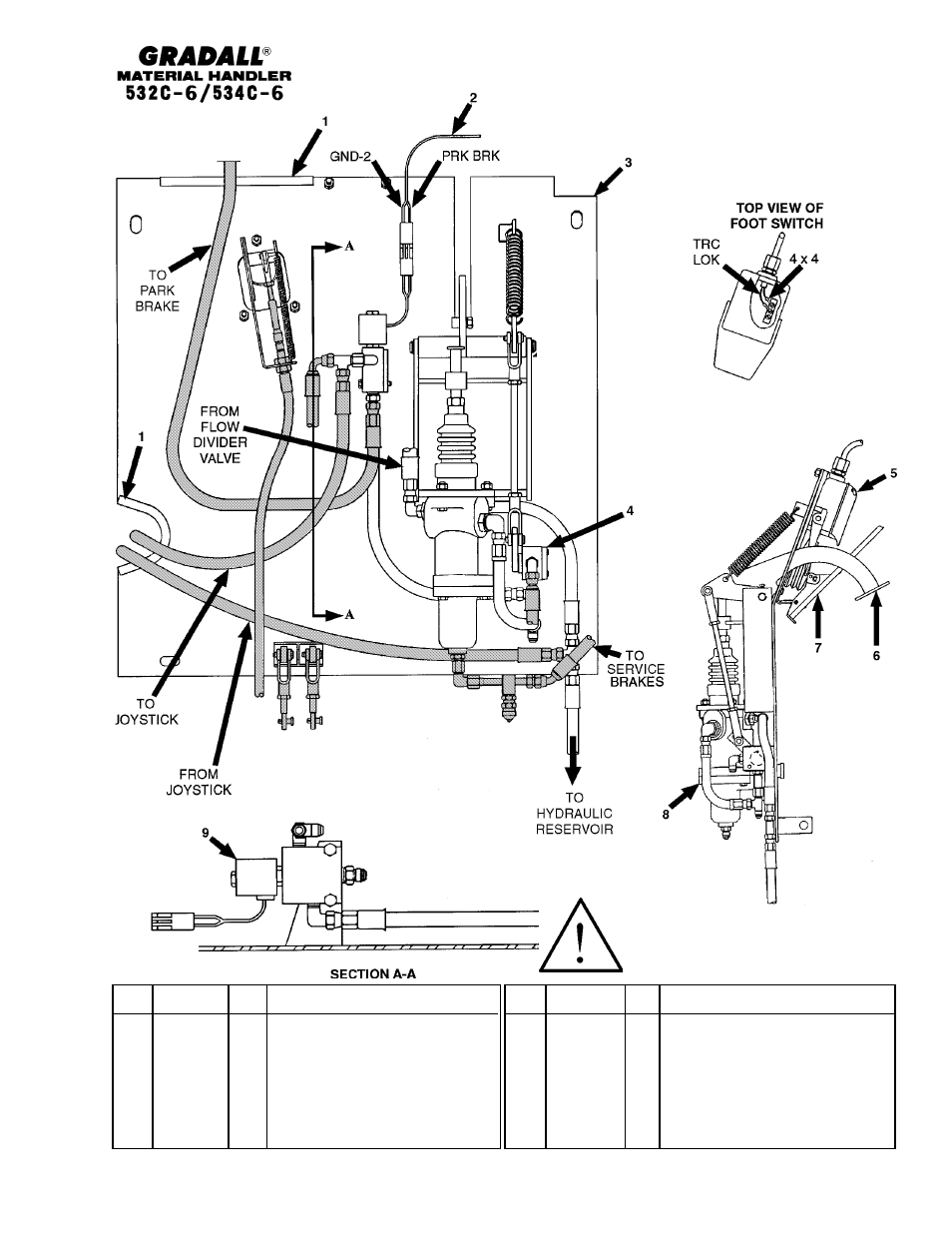

(9112-5040) Floorplate Assembly
Starting Serial No. 0288777
Original Issue 10-95
Item Part No. Qty. Description Of Part
9112-5040 1 FLOORPLATE ASSY (includes items 1,
3 thru 9)
1 9020-6198 AR TRIM-LOK
2 Ref DASH HARNESS(see page 11-7 for
details)
3 9112-6050 1 FLOORPLATE WELDMENT
4 Ref INCHING VALVE(see page 10-16 for
details)
Item Part No. Qty. Description Of Part
5 Ref FOOT SWITCH(see page 8-3 for
details)
6 Ref BRAKE PEDAL AND LINKAGE
(see page 8-3 for details)
7 Ref ACCELERATOR ASSY(see page 7-3
for details)
8 Ref BRAKE VALVE(see page 10-13)
9 Ref SOLENOID VALVE(see page 10-14)
GREY ITEMS: SHOWN AS VISUAL AID ONLY.
NOT INCLUDED IN THIS ASSEMBLY.
FOR HOSES AND FITTINGS - SEE PAGE 8-5.
7-6 PCN 940442 RS
