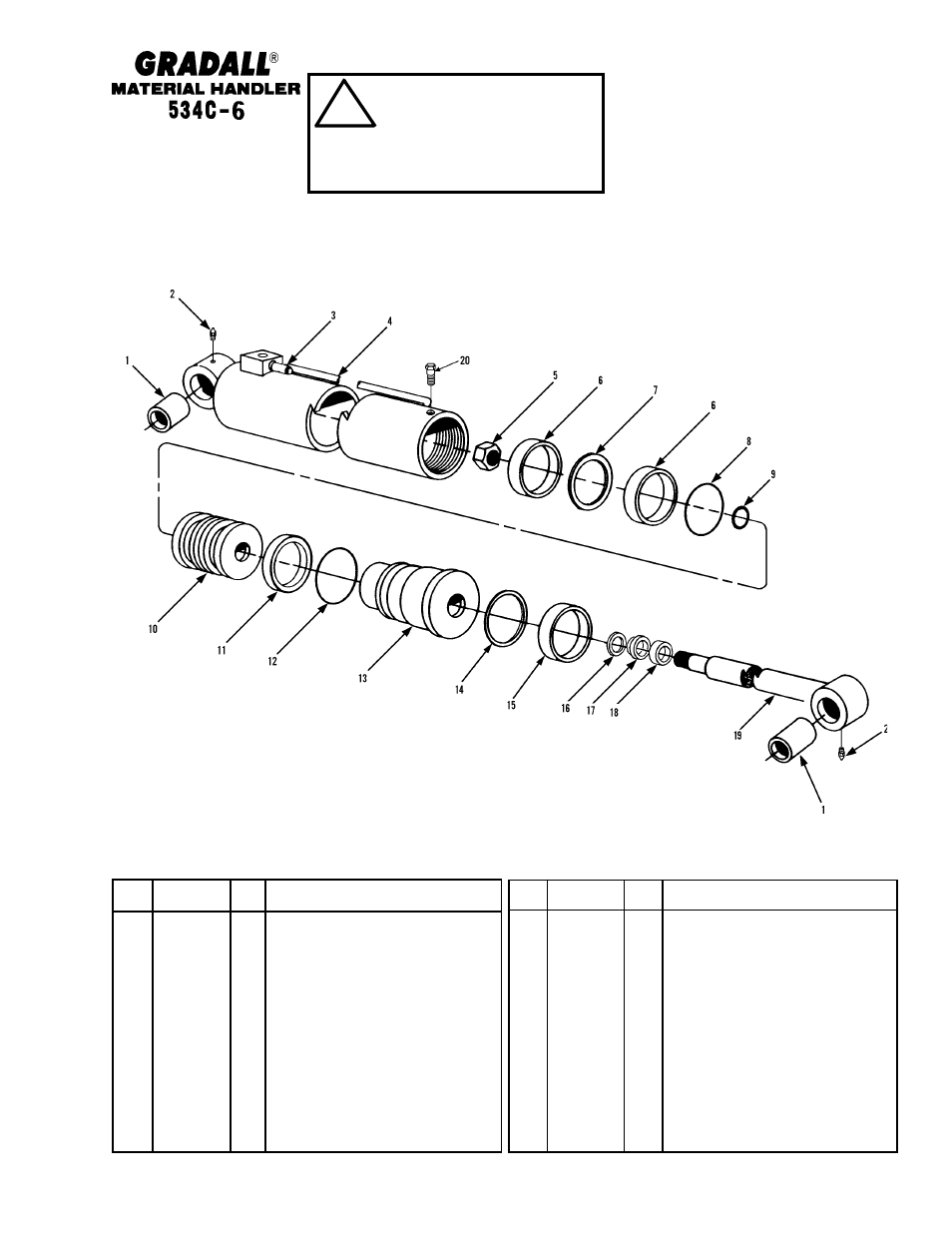

HYDRAULIC COMPONENTS

(9108-3513) Tilt Cylinder - Iowa

Starting Serial No. 0388054

Original Issue 2-96

Revised 6-27-07

!

NOTE: MACHINES WITH

S/N'S THAT END IN (H) WILL HAVE
IOWA CYLINDERS, UNLESS
OTHERWISE NOTED.

10-3

JM

Item

Part No.

Qty.

Description Of Part

9108-3513

1

TILT CYLINDER ASSY, (includes all
items)

9108-4370

1

SEAL KIT, (includes items 6 thru 9,
11, 12 & 16 thru 18)

1

9140-4352

2

BUSHING

2

9114-4128

2

GREASE FITTING

3

9108-3473

1

COUNTERBALANCE VALVE

9103-4276

1

COUNTERBALANCE VALVE SEAL KIT

4

9112-4076

1

CASE ASSY

5

9106-4017

1

LOCKNUT, (torque to 650-750 ft.lbs.)

6

2

WEAR RING

7

1

SEAL

8

1

O-RING

9

1

O-RING

10

9104-4274

1

PISTON

Item

Part No.

Qty.

Description Of Part

11

1

BACK-UP RING

12

1

O-RING

13

9108-4371

1

GLAND

14

9108-4372

1

SNAP RING

15

9108-4373

1

WEAR RING

16

1

STEP SEAL

17

1

U-CUP

18

1

WIPER

19

9112-4078

1

SHAFT ASSY

20

9112-4096

1

SELF TAPPING SCREW, #10-24

NOTE: ONLY ITEMS WITH PART

NUMBERS ARE AVAILABLE
FOR SERVICE.

* Revised part number on item 1.

*
