ATTACHMENTS

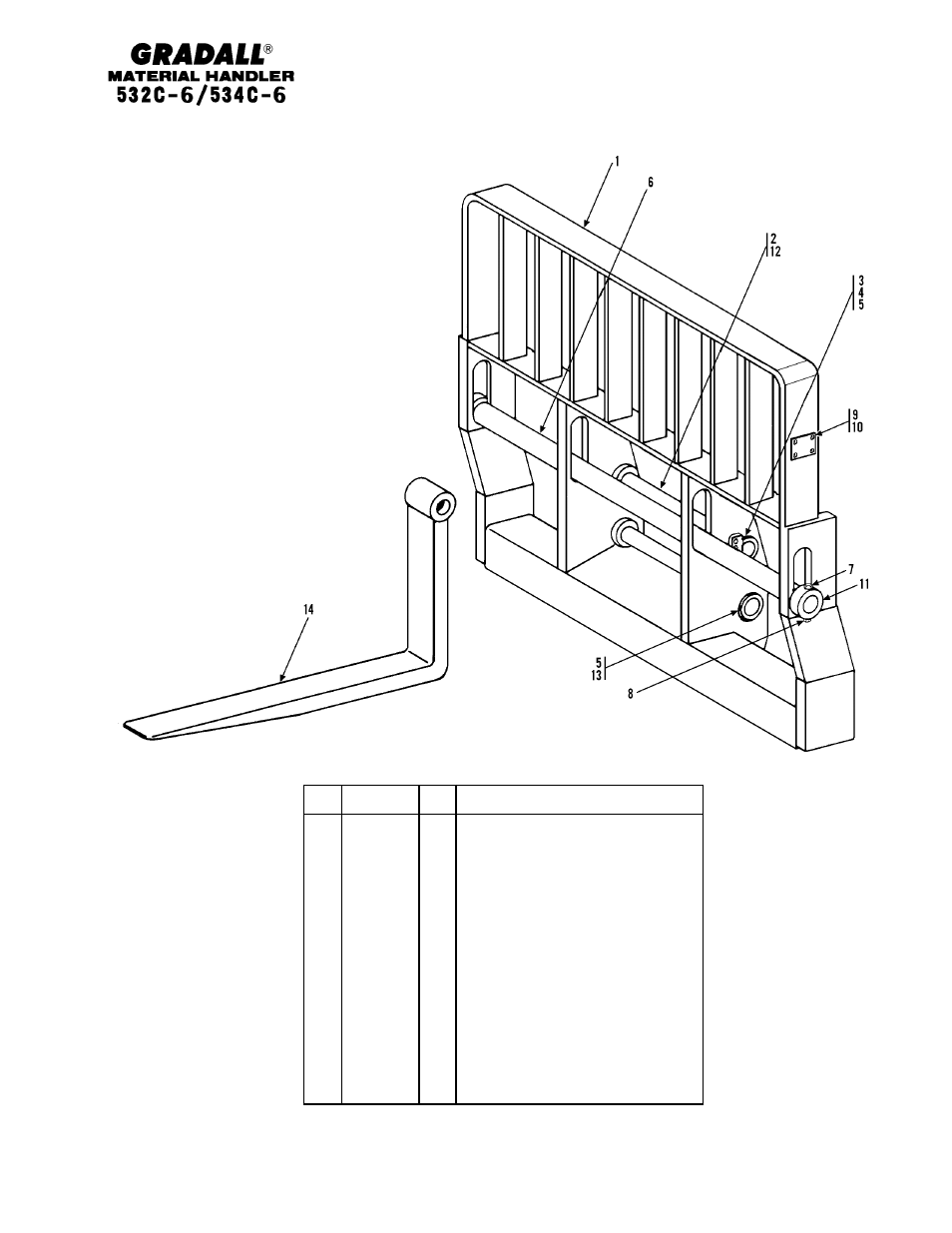

(9108-5033) Carriage Assembly
Starting Serial No. 0188002
Original Issue 1-90
Revised 11-29-00
Item Part No. Qty. Description Of Part Item
9108-5033 Ref 48" CARRIAGE ASSY, (includes items 1
thru 13)
1 9108-6116 1 48" CARRIAGE WELDMENT
2 9108-1369 1 HEAD PIN
3 9108-1368 1 RETAINER BAR
4 8820-1066 2 HEX HD CAPSCREW, 1/2-13X1-1/4,
GR5
5 8855-1013 2 LOCKWASHER, 1/2
6 9045-1058 1 FORK PIN
7 8820-1105 2 HEX HD CAPSCREW, 5/8-11X4, GR5
8 8852-1310 2 HEX LOCKNUT, 5/8-11
9 9015-3001 1 SERIAL NUMBER PLATE
10 8834-1022 4 DRIVE SCREW, #10X3/8
11 9020-0003 2 COLLAR
12 9112-1124 1 SLEEVE
13 9020-7046 Ref TILT PIN
14 9045-3002 2 FORK
9060-0390 CUBING FORK
NOTE: MANY DIFFERENT FORK ASSEMBLIES
ARE AVAILABLE FOR THE CARRIAGE
ASSEMBLIES USED ON 532C-6/534C-6.
PLEASE SEE FORK INFORMATION PAGE,
(4-7) FOR LIST OF FORKS.
SVC 4-1
* Revised fork note, illustration, description on 9108-5033, item 1, 7, & 14, Qty on
item 7 & 8, & part number on item 6.
*
*
*
*
*
*
