5-5
ENGINE & ATTACHING PARTS

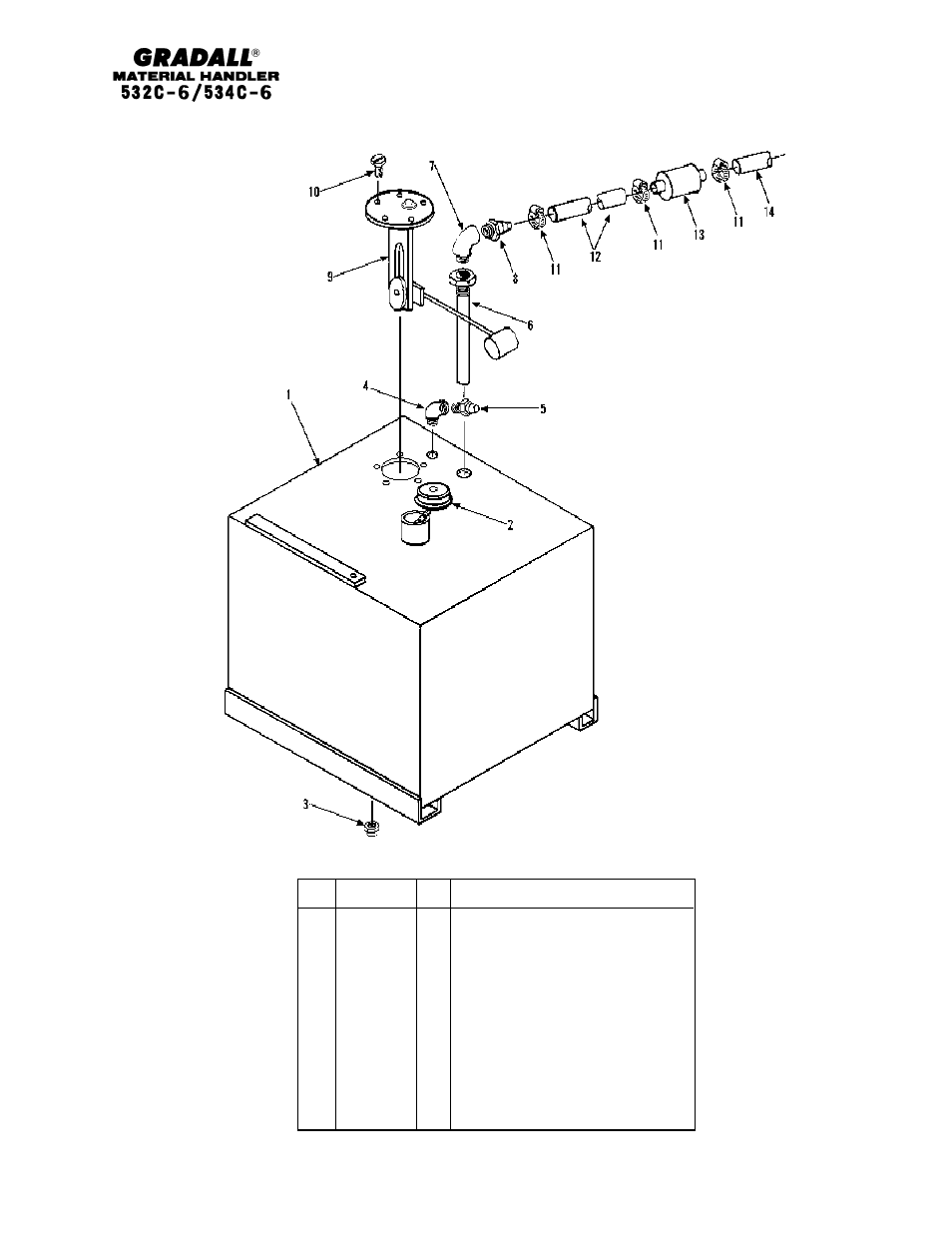

Fuel Tank& Lines
Starting Serial No. 0188002
Original Issue 1-90
Revised 9-19-95
Item Part No. Qty. Description Of Part
1 9108-3323 1 FUEL TANK (includes items 2 & 3)
2 8654-1381 1 FUEL TANK CAP, (w/chain)
3 8871-1283 1 HEX SOCKET PIPE PLUG, 1/2
4 8871-2011 1 STREET ELBOW, 90 DEGREES, 1/8
5 8874-1805 1 HOSE NIPPLE
6 7738-6065 1 PICK-UP TUBE
7 8871-2013 1 STREET ELBOW, 90 DEGREES, 3/8
8 9002-7331 1 HOSE NIPPLE
9 9040-0654 1 FUEL SENDER (includes item 10)
10 5 SCREW
11 8348-3497 3 HOSE CLAMP
12 11" FUEL LINE HOSE, 5/16" I.D.
13 9108-3218 1 FUEL FILTER
14 56" FUEL LINE HOSE, 5/16" I.D.
KG * Changed upper left corner to designate model more clearly.
