KG 8-5
Item Part No. Qty. Description Of Part
1 Ref FRONT DRIVE MOTOR (see page
10-20 for details)
2 Ref BRAKE ASSY (see page 6-4 for
details)
3 8859-1202 1 O-RING
4 8866-2003 1 CONNECTOR (includes item 3)
5 8471-7869 1 HOSE ASSY
6 9108-3213 1 CONNECTOR
7 Ref SOLENOID VALVE ASSY(see page
10-14 for details)
8 8866-1109 2 MALE ELBOW, 90 DEGREES, 3/8
TUBE
9 8820-1008 2 HEX HD CAPSCREW, 1/4-20X1-3/4,
GR5
10 8855-1009 2 LOCKWASHER, 1/4
11 8866-2239 3 SWIVEL NUT RUN TEE, 3/8 TUBE
12 9020-4096 1 HOSE ASSY
13 8471-7852 1 HOSE ASSY
14 8471-7890 2 HOSE ASSY
15 8471-7889 1 HOSE ASSY
16 8866-2139 1 RUN TEE (includes item 17)
17 8859-1204 3 O-RING
18 Ref INCHING VALVE (see page 10-16 for
details)
Item Part No. Qty. Description Of Part
19 7713-3089 1 TEST FITTING
20 8866-2064 1 ELBOW, 90 DEGREES (includes
item 17)
21 7713-3197 1 HOSE ASSY
22 8471-7817 1 HOSE ASSY
23 8866-2017 1 CONNECTOR (includes item 17)
24 9104-3163 1 TUBE ASSY
25 Ref HYDROSTATIC TRANSMISSION
ASSY (see page 10-18 for details)
26 9105-3426 1 CONNECTOR
27 8471-6726 1 HOSE ASSY
28 8866-1305 1 UNION TEE, 3/8 TUBE
29 8471-8021 1 HOSE ASSY
30 9108-3310 2 ELBOW, 90 DEGREES (includes
item 38)
31 Ref BRAKE VALVE (see page 10-13 for
details)
32 9108-3306 1 CONNECTOR (includes item 38)
33 8866-2105 2 ELBOW, 90 DEGREES (swivel nut)
34 8471-7853 1 HOSE ASSY
35 9105-3426 1 CONNECTOR
36 Ref FLOW DIVIDER VALVE (see page
10-12 for details)
37 9020-7856 1 COPPER GASKET
38 8859-1206 3 O-RING
* Changed upper left to designate model more clearly, added item 38. Also S/N 0288251 is incorrect
replace page 8-5 S/N 0288251 with page 8-5 starting S/N 0188251.
*
*
*
TO HYDRAULIC
RESERVOIR
TO JOYSTICK
TO JOYSTICK
TO SERVICE
BRAKES SEE
PAGE 8-1
TO DUMP
(see page 9-2)
NOTE: STARTING SERIAL NUMBER
0288251 IS INCORRECT. DISCARD PAGE
8-5 WITH S/N 0288251 AND REPLACE IT
WITH PAGE 8-5, STARTING
S/N 0188251.
BRAKES

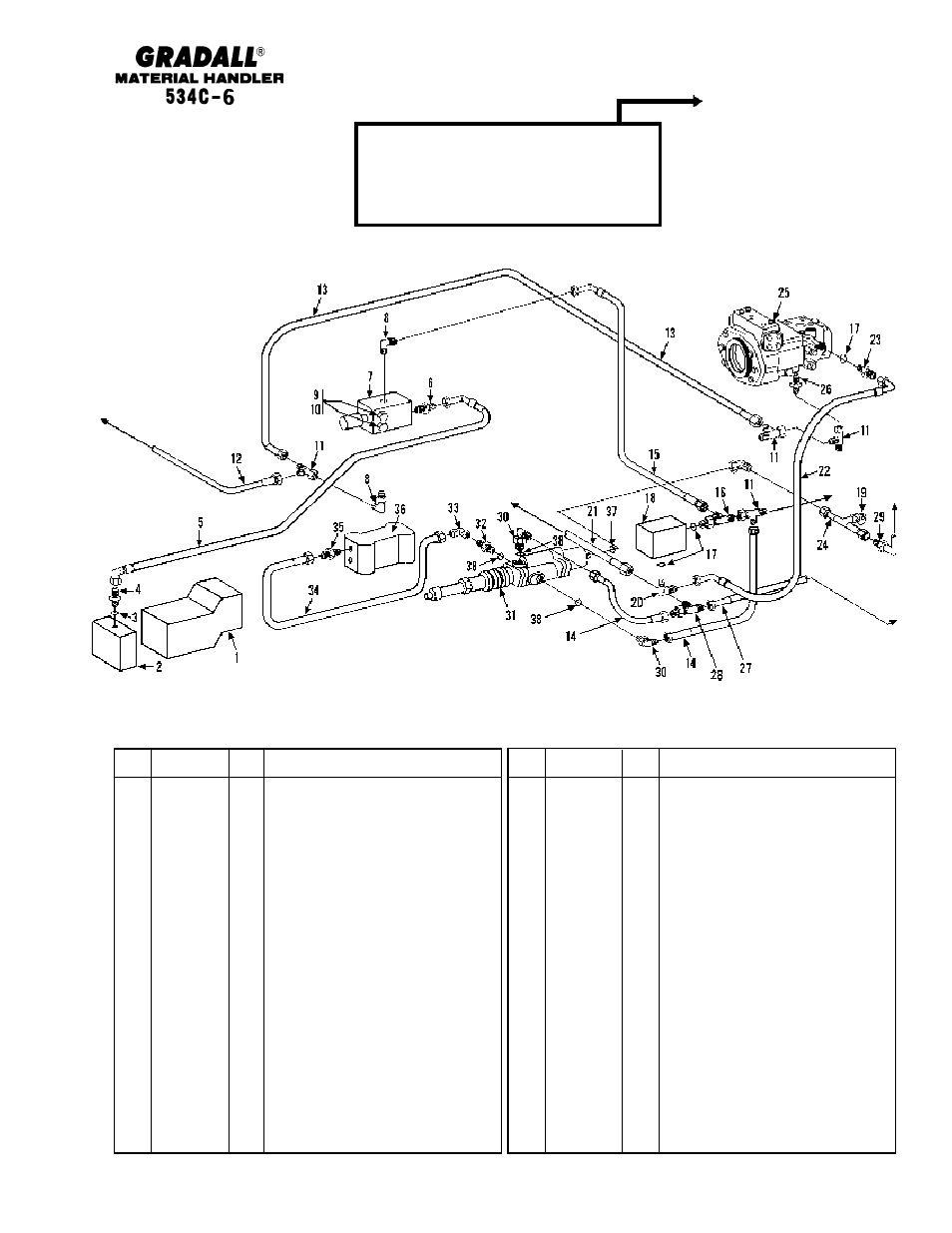

Inching & Parking Brake Lines (534C-6)
Starting Serial No. 0188251
Original Issue 8-93
Revised 10-2-95
