ENGINE & ATTACHING PARTS

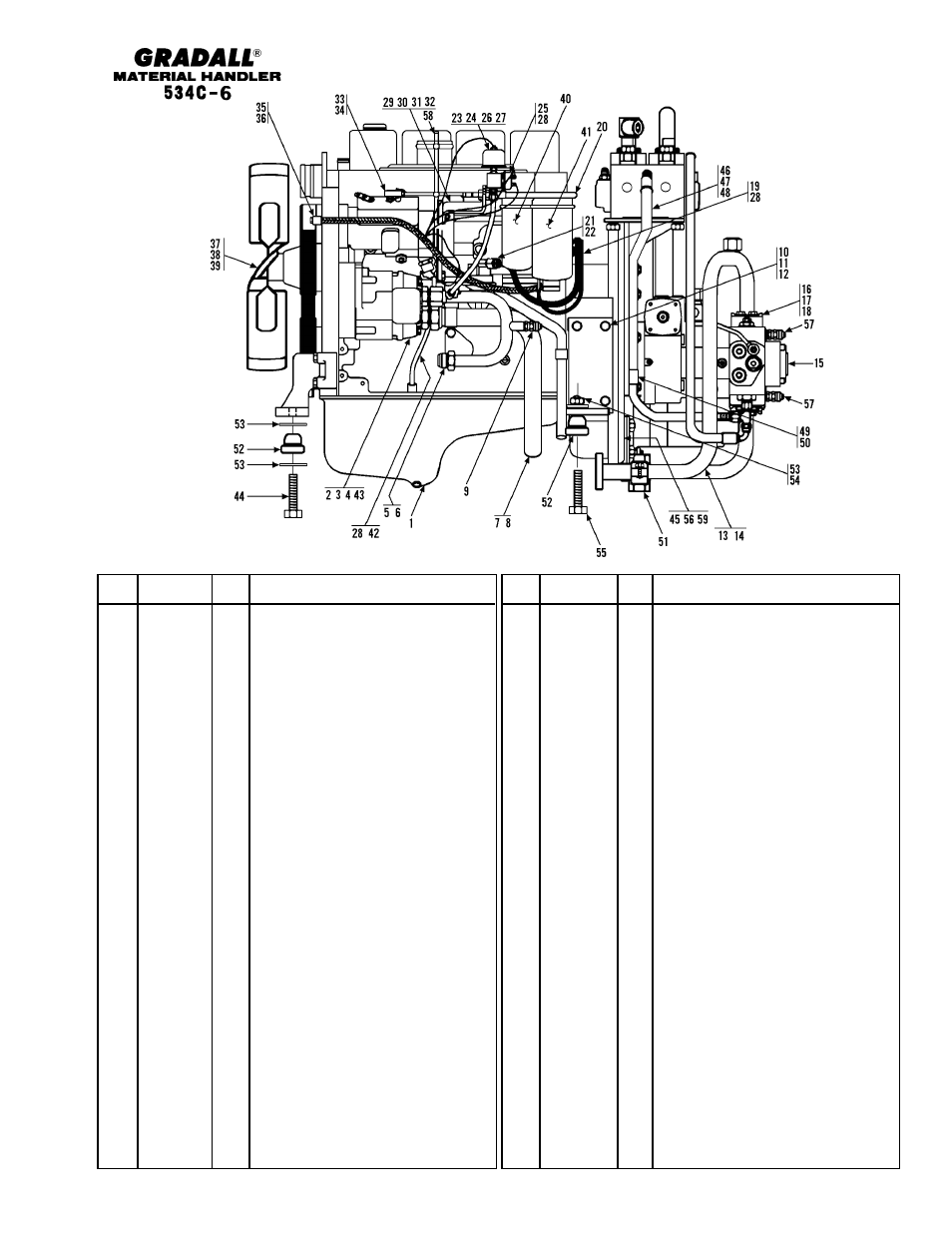

(9112-5026) Engine Left Side View (534C-6)
Starting Serial No. 0188251
Original Issue 7-93
Revised 6-01-05
Item
Part No.
Qty.
Description Of Part
27
18"
3/8 NYLON TUBE
28
9002-7187
5
TY-RAP
29
9108-1243
1
THROTTLE CABLE BRACKET
30
8820-1005
2
HEX HD CAPSCREW, 1/4-20X1, GR5
31
8855-1009
2
LOCKWASHER, 1/4
32
8850-1616
2
HEX NUT, 1/4-20
33
9002-7908
1
BALL JOINT
34
8850-1613
1
HEX NUT, #10-32
35
Ref
ENGINE WIRING HARNESS, (see
page 11-2 for details)
36
9002-7187
1
TY-RAP
37
9130-3056
1
FAN ASSY
38
8319-1041
4
HEX HD CAPSCREW, M8X1.25X70
39
8856-1108
4
FLAT WASHER, 5/16
40
7738-3202
1
PRIMARY FUEL FILTER ELEMENT
41
7738-3203
1
SECONDARY FUEL FILTER ELEMENT
42
9108-3493
10"
FLEX LOOM, 1/2" I.D.
43
9002-7471
2
WASHER
44
9108-3338
1
HEX HD CAPSCREW, M16X2X120
45
9134-4048
1
PUMP MOUNT PLATE
46
8471-8207
1
HOSE ASSY
47
9108-3306
1
STRAIGHT THREAD CONNECTOR
48
8859-1206
1
O-RING
49
8594-1017
1
SUPPORT CLAMP
50
8856-1109
1
WASHER, 3/8
51
9020-5792
1
CUSHION CLAMP
52
8688-1227
3
SHOCK MOUNT
53
9108-1158
4
SPECIAL WASHER
54
8852-1010
2
LOCKNUT
55
8820-1106
2
HEX HD CAPSCREW, 5/8-11X4-1/2,
GR5
56
9108-4312
1
COUPLING ASSY, (bolts included)
57
9108-3475
2
TEST COUPLING
58
9112-4125
1
DIPSTICK
59
9108-3019
1
PUMP MOUNT & COUPLING, (includes
items 45 & 56)
Item
Part No.
Qty.
Description Of Part
9112-5026
Ref
ENGINE ASSY, (includes all items
on pages 5-3 & 5-4)
1
9108-3012
1
CUMMINS ENGINE
2
Ref
MAIN HYDRAULIC PUMP,
(see page 10-17 for details)
3
8319-1057
2
HEX SOCKET HD CAPSCREW,
M12X1.75X80
4
8319-1010
2
LOCKWASHER, M12
5
9108-3233
1
TUBE ASSY
6
8866-2010
1
CONNECTOR, (includes o-ring)
8859-1209
1
O-RING
7
9108-3144
1
SUCTION TUBE
8
8866-2011
1
CONNECTOR, (includes o-ring)
8859-1210
1
O-RING
9
7713-3089
1
TEST FITTING
10
9108-6034
2
REAR ENGINE MOUNT
11
8319-1032
8
HEX HD CAPSCREW, M12X1.75X35
12
8319-1010
8
LOCKWASHER, M12
13
9108-3419
1
TUBE ASSY
14
9108-3106
1
O-RING
15
Ref
HYDROSTATIC TRANS. PUMP,
(see page 10-18 for details)
16
8471-2738
2
SPLIT FLANGE CLAMP
17
8320-1135
4
HEX HD CAPSCREW, 7/16-14X1-1/2,
GR8
18
8855-1012
4
LOCKWASHER, 7/16
19
56"
FUEL LINE HOSE, 7/32" I.D.
20
9108-3404
1
THROTTLE CABLE
21
60"
FUEL LINE HOSE, 5/16" I.D.
22
9003-0271
1
HOSE NIPPLE
23
2474-1047
1
OIL PRESSURE SWITCH
24
9108-1388
1
TAPPED BAR
25
9103-3246
1
OIL PRESSURE SENDER
26
8688-3075
2
TUBE FITTING
5-3
JD
*
*
*Changed part number on item 45; description on items 45 & 56.
