Item

Part No.

Qty.

Description Of Part

9114-3331

1

GAUGE PANEL (includes all items)

1

9136-4004

1

PANEL ASSY (includes front & back
plates, acrylic lens & std. labels)

2

9136-4005

1

RUBBER BOOT

3

7738-3467

1

TOGGLE SWITCH

4

9114-3114

1

PARK BRAKE SWITCH

5

9136-4006

1

HOURMETER

6

9136-4007

1

4-IN-1 GAUGE (oil, fuel, temp, volts)

7

9136-4008

1

WIRE HARNESS

8

7738-3470

2

SEAL

9

9114-3128

2

AMBER INDICATOR LIGHT

10

9114-3127

1

RED INDICATOR LIGHT

ELECTRICAL

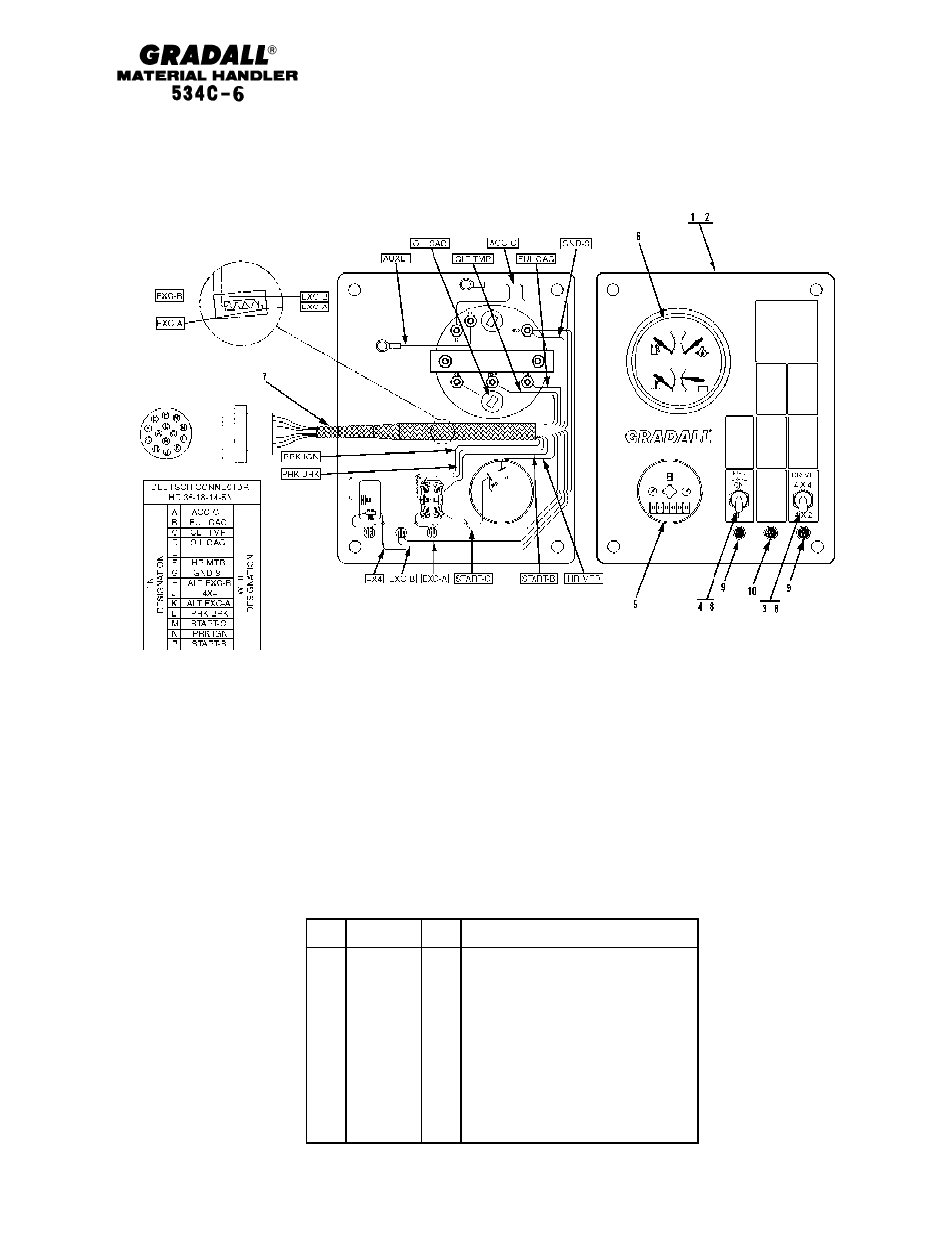

(9114-3331) Gauge Panel Assembly

Starting Serial No. 0488238

Original Issue 9-97

KG

11-7
