Gradall 534C-6 Parts Manual User Manual
Page 70
5-3
ENGINE & ATTACHING PARTS

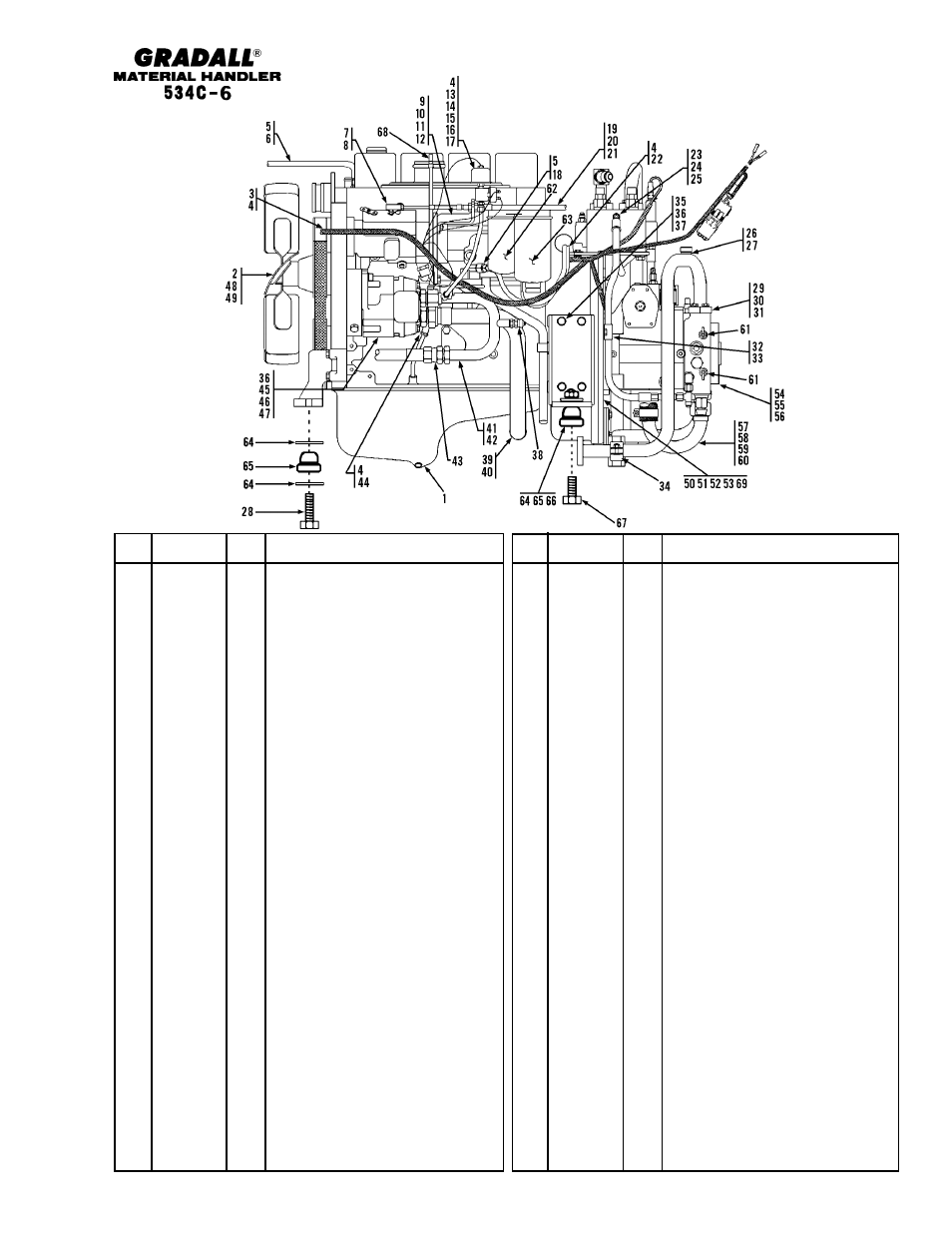

(9112-5099) Engine Left Side View
Starting Serial No. 0488238
Original Issue 8-97
Revised 6-01-05
JD
Item
Part No.
Qty.
Description Of Part
9112-5099
Ref
ENGINE ASSY, (includes items
on pages 5-3 and 5-4)
1
9108-3012
1
CUMMINS ENGINE
2
9130-3056
1
FAN ASSY
3
9112-3166
1
WIRING HARNESS, (engine)
4
9002-7187
6
TY-RAP
5
78"
FUEL LINE HOSE, 5/16
6
8688-3106
2
HOSE CLAMP
7
9002-7908
1
BALL JOINT
8
8850-1613
1
HEX NUT, #10-32
9
9108-1243
1
THROTTLE CABLE BRACKET
10
8820-1005
2
HEX HD CAPSCREW, 1/4-20X1,GR5
11
8855-1009
2
LOCKWASHER, 1/4
12
8850-1616
2
HEX NUT, 1/4-20
13
2474-1047
1
PRESSURE SWITCH
14
9114-3315
1
OIL PRESSURE SENDER
15
9108-1388
1
TAPPED BAR
16
8688-3075
2
TUBE FITTING
17
18"
NYLON TUBE, 3/8
18
9003-0271
1
HOSE NIPPLE
19
9108-3404
1
THROTTLE CABLE
20
9002-8977
1
YOKE END
21
9002-1552
1
CLEVIS PIN
22
56"
FUEL LINE HOSE, 7/32
23
9108-3306
1
CONNECTOR
24
7713-3447
1
HOSE ASSY
25
8859-1206
1
O-RING
26
9114-3055
1
TUBE ASSY
27
9108-3106
1
O-RING
28
9108-3338
1
HEX HD CAPSCREW, M16X2X120
29
8471-2738
2
SPLIT FLANGE CLAMP
30
8320-1135
4
HEX HD CAPSCREW, 7/16-14X1-1/2
31
8855-1012
4
LOCKWASHER, 7/16
32
8594-1017
1
SUPPORT CLAMP
33
8856-1109
1
WASHER, 3/8
34
9020-5792
1
CUSHION CLAMP
35
9108-6034
2
REAR ENGINE MOUNTING BRACKET
36
8319-1010
10
LOCKWASHER, M12
37
8319-1032
8
HEX HD CAPSCREW, M12X1.75X35
38
7713-3089
1
TEST FITTING
39
9108-3144
1
SUCTION TUBE
40
8866-2011
1
CONNECTOR, (includes o-ring)
8859-1210
1
O-RING
Item
Part No.
Qty.
Description Of Part
41
9108-3233
1
TUBE ASSY
42
8866-2010
1
CONNECTOR, (includes o-ring)
8859-1210
1
O-RING
43
8471-7907
1
HOSE ASSY
44
9108-3493
10"
SPLIT FLEX LOOM, 1/2 ID
45
Ref
MAIN PUMP, (see page 10-17
for details
46
8319-1057
2
SOCKET HD CAPSCREW, M12 x 1.75 x 80
47
9002-7471
2
HARDENED WASHER
48
8319-1041
4
HEX HD CAPSCREW, M8 x 1.25 x 70
49
8856-1108
4
WASHER, 5/16
50
9134-4048
1
PUMP MOUNT PLATE
51
9108-4312
1
COUPLING ASSY, (bolts included)
52
8821-1068
8
SOCKET HD CAPSCREW,
3/8-16X5/8, (torque to 40-45 ft.lbs.)
53
8855-1011
8
LOCKWASHER, 3/8
54
Ref
HYDROSTATIC TRANSMISSION,
(see page 10-18 for details)
55
8820-1112
2
HEX HD CAPSCREW, 3/4-10X2-1/4,
(torque to 240-265 ft.lbs.)
56
8855-1016
2
LOCKWASHER, 3/4
57
8866-2011
1
CONNECTOR, (includes o-ring)
8859-1210
1
O-RING
58
9114-3087
1
INTAKE TUBE
59
9108-3246
1
HOSE
60
9002-8695
2
BAND CLAMP
61
9105-3020
2
TEST COUPLING
62
7738-3202
1
PRIMARY FUEL FILTER
63
7738-3203
1
SECONDARY FUEL FILTER
64
9108-1158
4
SPECIAL WASHER
65
8688-1227
3
LORD MOUNT
66
8852-1010
2
LOCKNUT, 5/8-11
67
8820-1106
2
HEX HD CAPSCREW, 5/8-11X4-1/2,
GR5
68
9112-4125
1
DIPSTICK
69
9108-3019
1
PUMP MOUNT & FLYWHEEL
COUPLING, (includes items 50 & 51)
NOTE: ONLY ITEMS WITH PART
NUMBERS ARE AVAILABLE
FOR SERVICE.
*
*
*Changed part number on item 50; description on items 50 & 51.
