OPTIONAL EQUIPMENT

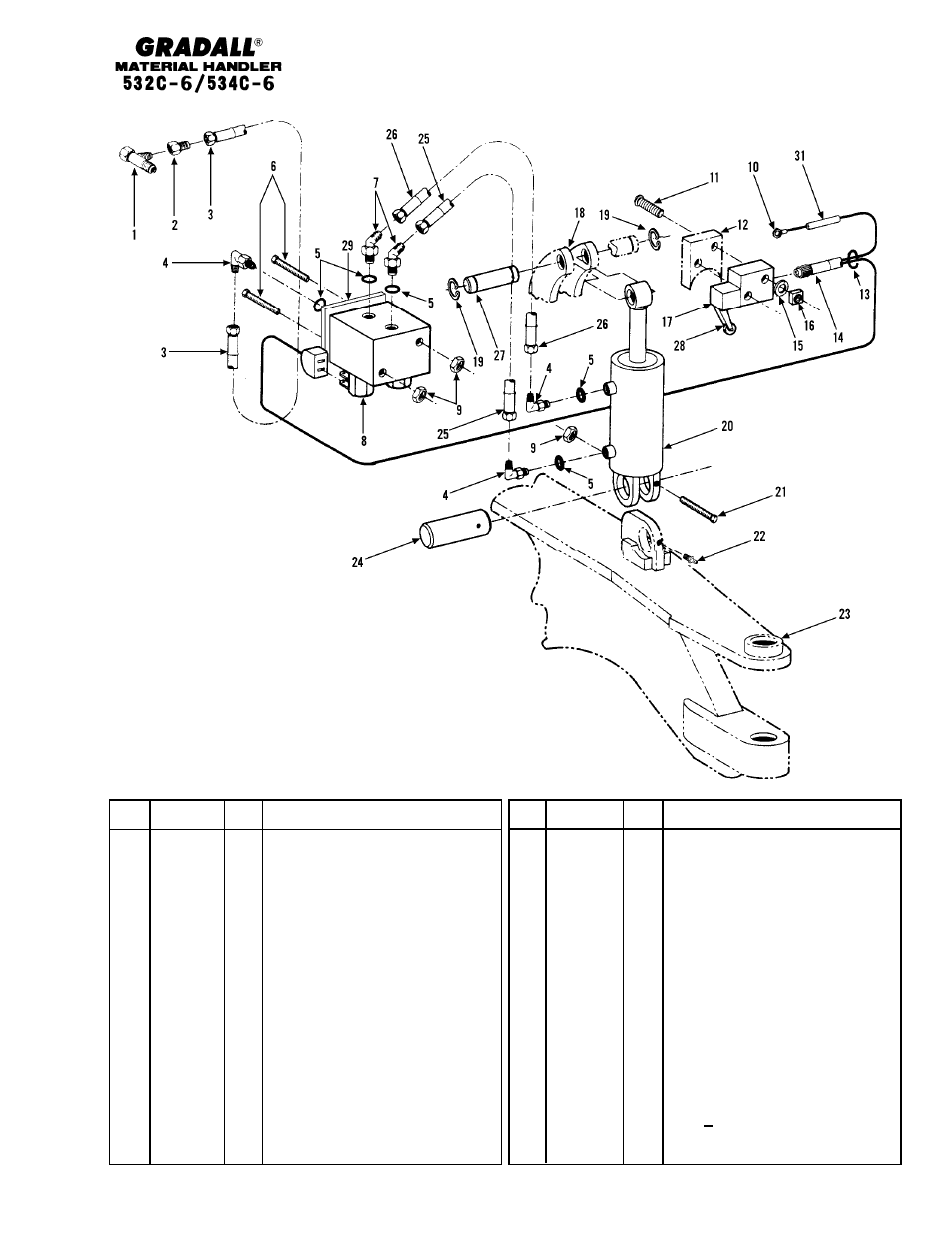

(9112-5007) Stabilizer Option
Original Issue 2-93
Revised 10-12-95
Item
Part No.
Qty.
Description Of Part
9112-5007
Ref
REAR AXLE STABILIZER (includes
all items)
1
8866-2244
1
SWIVEL NUT RUN TEE, 1" TUBE
2
9103-3230
1
REDUCER
3
8471-6426
1
HOSE ASSY
4
8866-2065
3
ELBOW, 90 DEGREES (includes
item 5)
5
8859-1205
5
O-RING
6
8320-1073
2
HEX HD CAPSCREW, 3/8-16X4-1/2,
GR5
7
8866-2085
2
ELBOW, 45 DEGREES (includes
item 5)
8
9111-3003
1
STABILIZER VALVE
9
8852-1206
3
HEX LOCKNUT, 3/8-16
10
9111-1002
1
JUMPER WIRE
11
8830-1099
2
ROUND HD MACHINE SCREW,
#10-24 X1-3/4
12
9112-1018
1
BRACKET
13
9002-7187
4
TY-WRAP
14
9104-5034
1
BOOM SWITCH HARNESS
15
8855-1007
2
LOCKWASHER, #10
Item
Part No.
Qty.
Description Of Part
16
9104-3199
2
SQUARE NUT
17
9104-3123
1
SWITCH (includes item 28)
18
9112-1013
1
STABILIZER BRACKET
19
8858-1140
2
SNAP RING
20
Ref
STABILIZER CYLINDER (see page
13-20 for details)
21
8820-1044
1
HEX HD CAPSCREW, 3/8-16X3-1/4,
GR5
22
8867-1008
1
LUBE FITTING, STRAIGHT 1/4-28
23
9104-6114
1
REAR AXLE WELDMENT
24
9112-1017
1
PIN
25
8471-7888
1
HOSE ASSY
26
8471-7887
1
HOSE ASSY
27
9104-1227
1
PIN
28
9104-4475
1
LEVER/ROLLER ASSY
29
9111-1001
1
MOUNTING PLATE
30
9112-1098
1
ACTUATOR - NOT SHOWN (adjust
to operate when boom angle
is 45º 2º)
31
8203-3993 120" LOOM, 5/16 I.D.
+
13-19
PCN 910214 & 950242-KG
* Added items 29, 30 & 31.
*
*
*
