Page 54

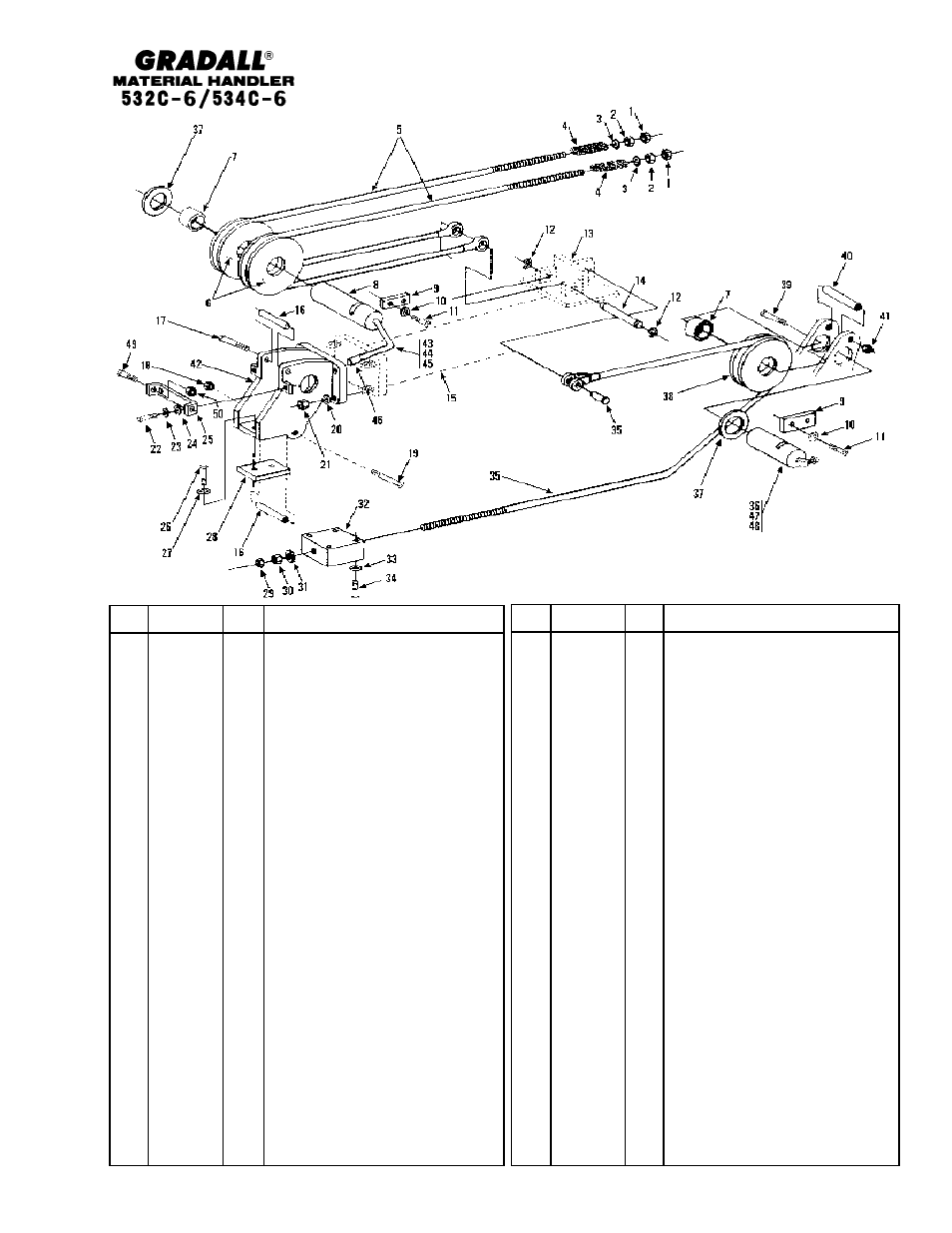

BOOM
Extension & Retraction Cables
Starting Serial No. 0188002
Original Issue 1-90
Revised 3-31-97
Item
Part No.
Qty.
Description Of Part
9112-5032
Ref
BUSHING KIT (includes items 7, 8, 36,
43 thru 48, and two of P/N 9112-1200
tapped block)
1
8850-1414
2
HEX JAM NUT, 7/8-14 (torque to 175-
215 ft.lbs.)
2
8850-1314
2
HEX NUT, 7/8-14 (torque to 15 ft.lbs.)
3
9112-1079
2
SPECIAL WASHER
4
9112-3018
2
SPRING
5
9112-3012
2
EXTENSION CABLE
6
9112-5030
2
EXTEND SHEAVE ASSY (includes
item 7)
7
9112-3102
3
BUSHING
8
9112-1196
1
EXTENSION CABLE PIN
9
8664-1158
2
PIN KEEPER
10
8855-1011
4
LOCKWASHER, 3/8
11
8820-1034
4
HEX HD CAPSCREW, 3/8-16X7/8, GR5
12
8858-1310
2
RETAINING RING, EXTERNAL
13
9112-6015
1
CABLE ANCHOR WELDMENT
14
9112-1080
1
EXTENSION CABLE PIN
15
Ref
CROWD CYLINDER ASSY (see page
10-2 for details)
16
9112-1045
2
RETAINER ROLLER
17
8820-1046
1
HEX HD CAPSCREW, 3/8-16X3-3/4,
GR5
18
8852-1306
1
THIN LOCKNUT, 3/8-16
19
8320-1073
1
HEX HD CAPSCREW, 3/8-16X4-1/2,
GR5
20
8856-1111
4
WASHER, 1/2"
21
8852-1208
4
HEX LOCKNUT, 1/2"-13
22
8820-1034
2
HEX HD CAPSCREW, 3/8-16X7/8,
GR5
23
8855-1011
2
LOCKWASHER, 3/8
24
8855-1109
2
FLAT WASHER, 3/8
25
9112-1122
1
GUIDE BAR
Item
Part No.
Qty.
Description Of Part
26
8820-1532
2
HEX HD CAPSCREW, 3/8-24X3/4,
GR5 (torque to 32-37 ft.lbs.)
27
8856-1109
2
FLAT WASHER, 3/8
28
9103-3187
1
BEARING PAD
29
8850-1112
1
HEAVY HEX JAM NUT, 3/4-10
30
8850-1012
1
HEX NUT, 3/4-10
31
9002-7473
1
HARDENED WASHER
32
9108-1087
1
CABLE ADJUSTMENT BLOCK
33
9002-7471
4
WASHER
34
8320-1026
4
HEX HD CAPSCREW, 1/2-13X1-1/8,
GR8
35
9112-3013
1
RETRACTION CABLE (includes pin)
36
9112-1197
1
RETRACTION SHEAVE PIN
37
9104-1451
5
THRUST WASHER
38
9112-5031
1
RETRACTION SHEAVE ASSY
(includes item 7)
39
8820-1043
2
HEX HD CAPSCREW, 3/8-16X3,GR5
40
9112-1056
2
RETAINER ROLLER
41
8852-1306
2
HEX LOCKNUT, 3/8-18 (nylok)
42
9112-6009
1
EXTEND CABLE BRACKET
43
8688-1276
2
TUBE FITTING, 90 DEGREES
44
8688-1273
2
STRAIGHT TUBE FITTING
45
20"
NYLON TUBING, 1/4"
46
8867-1002
2
LUBE FITTING, STRAIGHT, 1/8
47
9103-3445
1
LUBE FITTING, STRAIGHT, 1/8
48
8871-2011
1
STREET ELBOW, 90 DEGREES, 1/8
49
9112-3136
2
BRASS HEX HD CAPSCREW,
3/8-16X1
50
8850-1006
2
HEX NUT, 3/8-16
NOTE: ONLY ITEMS WITH PART
NUMBERS ARE AVAILABLE
FOR SERVICE
3-4
KG
* Added items 49 & 50.
*
*
