Page 67
ENGINE & ATTACHING PARTS

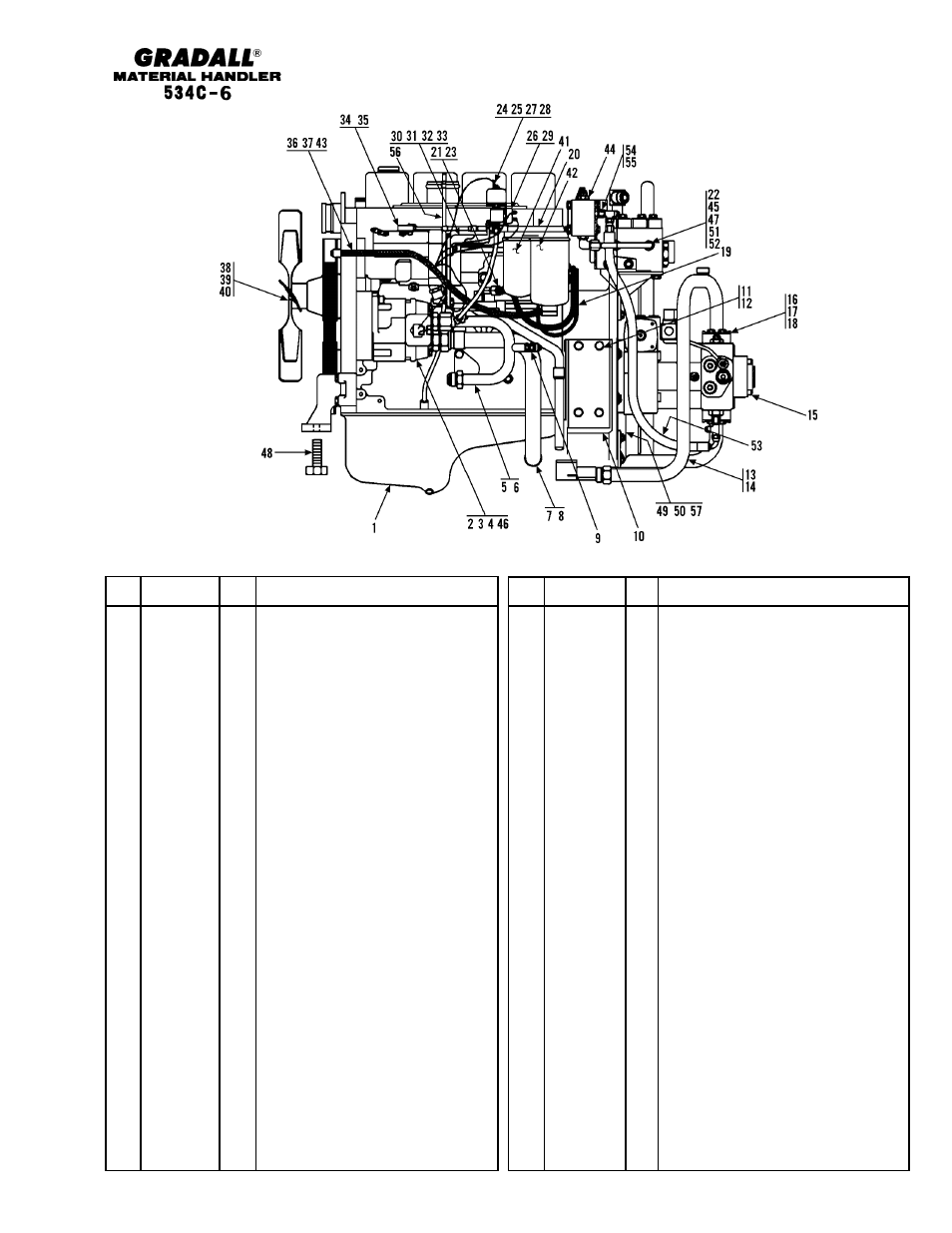

Engine Left Side View (534C-6)
Starting Serial No. 0188002
Original Issue 1-90
Revised 6-01-05
5-3
JD
Item
Part No.
Qty.
Description Of Part
1
9108-3012
1
CUMMINS ENGINE
2
Ref
MAIN HYDRAULIC PUMP,
(see page 10-17 for details)
3
9108-3143
2
HEX HD CAPSCREW, M12X1.75X75
4
8319-1010
2
LOCKWASHER, M12
5
9108-3233
1
TUBE ASSY
6
8866-2010
1
CONNECTOR, (includes o-ring)
8859-1209
1
O-RING
7
9108-3144
1
SUCTION TUBE
8
8866-2011
1
CONNECTOR, (includes o-ring)
8859-1210
1
O-RING
9
7713-3089
1
TEST FITTING
10
9108-6034
2
REAR ENGINE MOUNT
11
8319-1004
8
HEX HD CAPSCREW, M12X1.75X30
12
8319-1010
8
LOCKWASHER, M12
13
9108-3104
1
TUBE ASSY
14
9108-3106
1
O-RING
15
Ref
HYDROSTATIC TRANS. PUMP,
(see page 10-18 for details)
16
8471-2738
2
SPLIT FLANGE CLAMP
17
8320-1135
4
HEX HD CAPSCREW, 7/16-14X1-1/2,
GR8
18
8855-1012
4
LOCKWASHER, 7/16
19
52"
FUEL LINE HOSE, 7/32" I.D.
20
9108-3404
1
THROTTLE CABLE
21
56"
FUEL LINE HOSE, 5/16" I.D.
22
8471-8129
1
HOSE ASSY
23
9003-0271
1
HOSE NIPPLE
24
2474-1047
1
OIL PRESSURE SWITCH
25
9108-1388
1
TAPPED BAR
26
9103-3246
1
OIL PRESSURE SENDER
27
8688-3075
2
TUBE FITTING
28
18"
3/8 NYLON TUBE
29
9002-7187
1
TY-RAP
30
9108-1243
1
THROTTLE CABLE BRACKET
Item
Part No.
Qty.
Description Of Part
31
8820-1005
2
HEX HD CAPSCREW, 1/4-20X1, GR5
32
8855-1009
2
LOCKWASHER, 1/4
33
8850-1616
2
HEX NUT, 1/4-20
34
9002-7908
1
BALL JOINT
35
8850-1613
1
HEX NUT, #10-32
36
Ref
ENGINE WIRING HARNESS, (see
page 11-2 for details)
37
9002-7187
1
TY-RAP
38
9108-3072
1
FAN ASSY
39
8319-1041
4
HEX HD CAPSCREW, M8X1.25X70
40
8856-1108
4
FLAT WASHER, 5/16
41
7738-3202
1
PRIMARY FUEL FILTER ELEMENT
42
7738-3203
1
SECONDARY FUEL FILTER ELEMENT
43
2486-1170
1
SUPPORT CLAMP
44
Ref
MANIFOLD ASSY, (see page 10-21
for details)
45
8471-8129
2
HOSE ASSY
46
8540-1340
2
WASHER
47
8859-1506
4
O-RING
48
9108-3338
1
HEX HD CAPSCREW, M16X2X120
49
9134-4048
1
PUMP MOUNT PLATE
50
9108-4312
1
COUPLING ASSY, (bolts included)
51
8866-2440
2
STRAIGHT THREAD CONNECTOR,
(includes o-ring)
8859-1506
2
O-RING
52
8866-2330
2
ELBOW, 90 DEGREES, (includes
o-ring)
8859-1506
2
O-RING
53
8471-7597
1
HOSE ASSY
54
8866-2018
1
STRAIGHT THREAD CONNECTOR,
(includes o-ring)
8859-1205
1
O-RING
55
8866-2239
1
SWIVEL NUT RUN TEE, 3/8 TUBE
56
9112-4125
1
DIPSTICK
57
9108-3019
1
PUMP MOUNT AND FLYWHEEL
COUPLING, (includes items 49 & 50)
*
*
*Changed part number on item 49; description on items 49 & 50.
