OPTIONAL EQUIPMENT

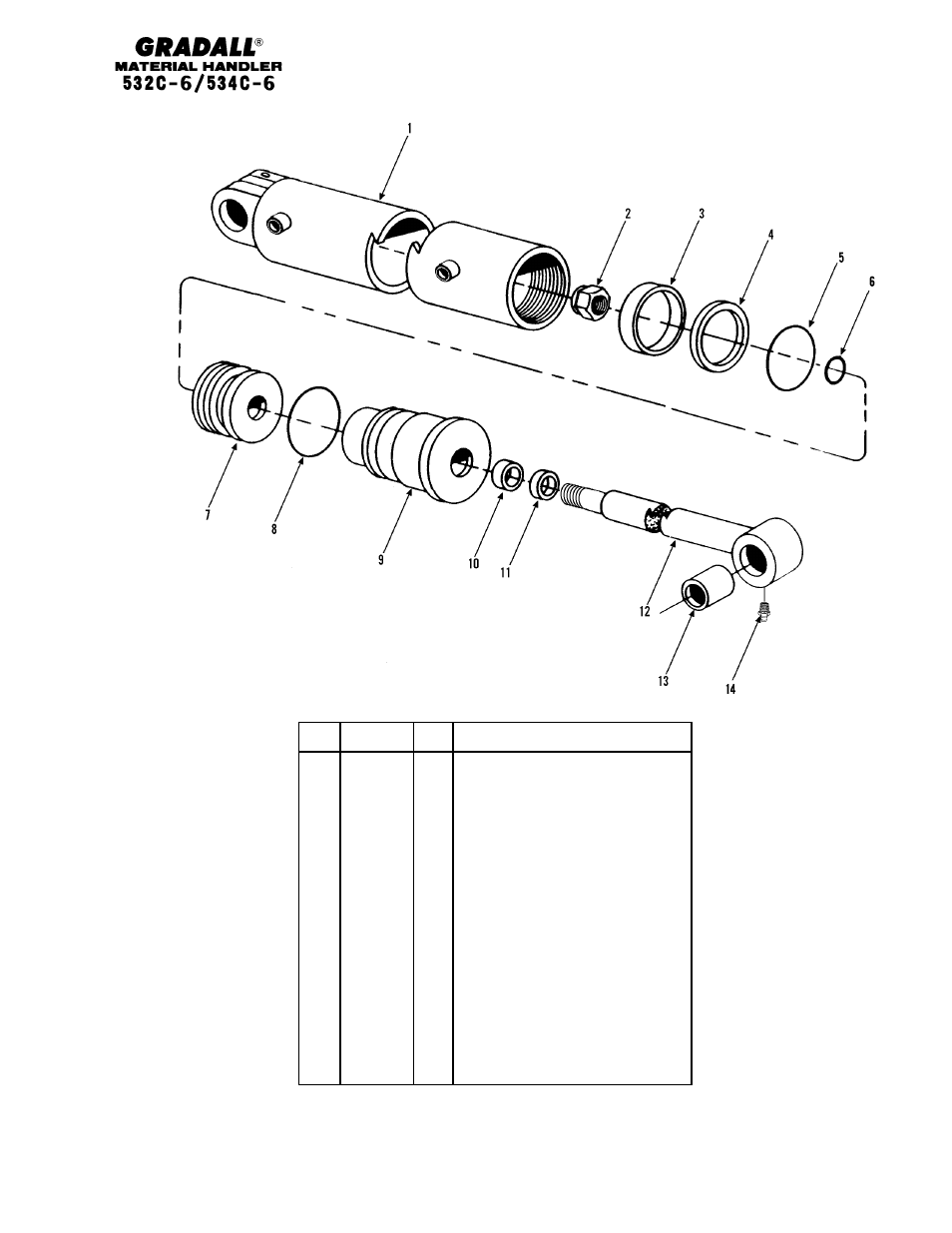

(9104-3303) Stabilizer Cylinder
Original Issue 2-93
Revised 10-16-95
Item
Part No.
Qty.
Description Of Part
9104-3303
1
STABILIZER CYLINDER ASSY
(includes all items)
9104-4330
1
SEAL KIT (includes items 3, 4, 5, 6,
8, 10 & 11)
2
9103-4286
1
LOCKNUT (torque to 590 ft.lbs.)
3
1
WEAR NUT
4
1
SEAL
5
1
O-RING
6
1
O-RING
7
9104-4331
1
PISTON
8
1
O-RING
9
9104-4332
1
GLAND
10
1
SEAL
11
1
WIPER
12
9104-4333
1
ROD ASSY (includes item 13)
13
9104-4353
1
BUSHING
14
8867-1033
1
LUBE FITTING, STRAIGHT 1/4-28
NOTE: ONLY ITEMS WITH PART
NUMBERS ARE AVAILABLE
FOR SERVICE
