Gradall 534C-6 Parts Manual - Manual (Page 199)

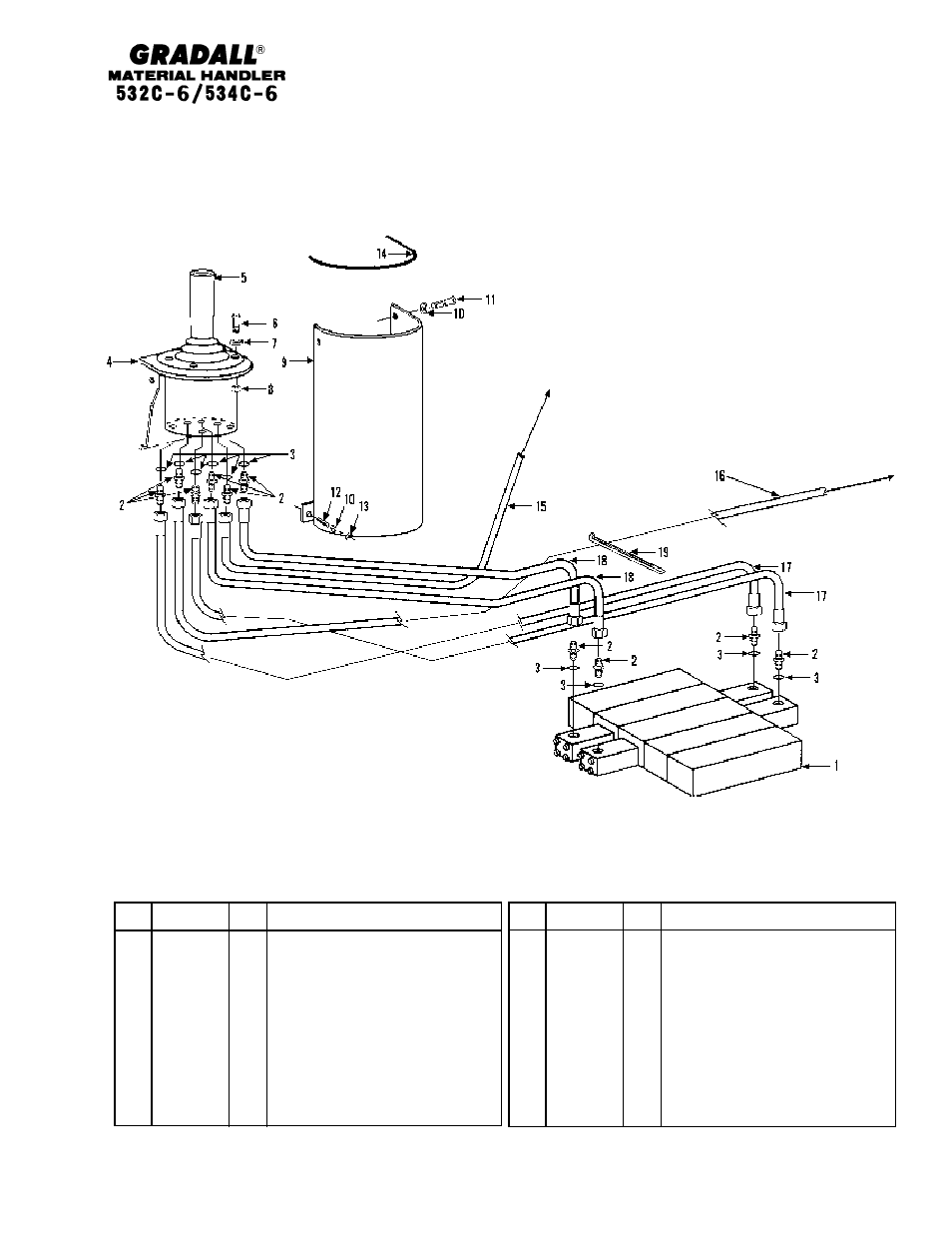

HYDRAULIC CIRCUITS
Joystick Circuit
Starting Serial No. 0188166
Original Issue 4-93
Revised 10-19-95
9-11 KG
* Changed upper left to designate model more clearly.
Item Part No. Qty. Description Of Part
1 Ref MAIN HYDRAULIC CONTROL
VALVE ASSY (see page 10-9 for
details)
2 8866-2005 10 CONNECTOR (includes item 3)
3 8859-1204 10 O-RING
4 9112-6035 1 JOYSTICK MOUNT WELDMENT
5 Ref JOYSTICK (see page 10-24 for
details)
6 8826-1017 4 SOCKET BUTTON HD CAPSCREW,
1/4-20X7/8, GR5
7 8855-1009 4 LOCKWASHER, 1/4
8 8850-1004 4 HEX NUT, 1/4-20
Item Part No. Qty. Description Of Part
9 9104-6056 1 COVER
10 8855-1010 4 LOCKWASHER, 5/16
11 8820-1018 2 HEX HD CAPSCREW, 5/16-18X3/4,
GR5
12 8505-1384 2 WELD STUD, 5/16-18
13 8850-1005 2 HEX NUT, 5/16-18
14 9020-6194 AR TRIM LOK
15 9020-4096 1 HOSE ASSY
16 7713-3197 1 HOSE ASSY
17 8471-7458 2 HOSE ASSY
18 8471-7519 2 HOSE ASSY
19 9002-7187 AR TIE WRAP
TO HYDRAULIC
RESERVOIR
TO SOLENOID VALVE
