13-21
OPTIONAL EQUIPMENT

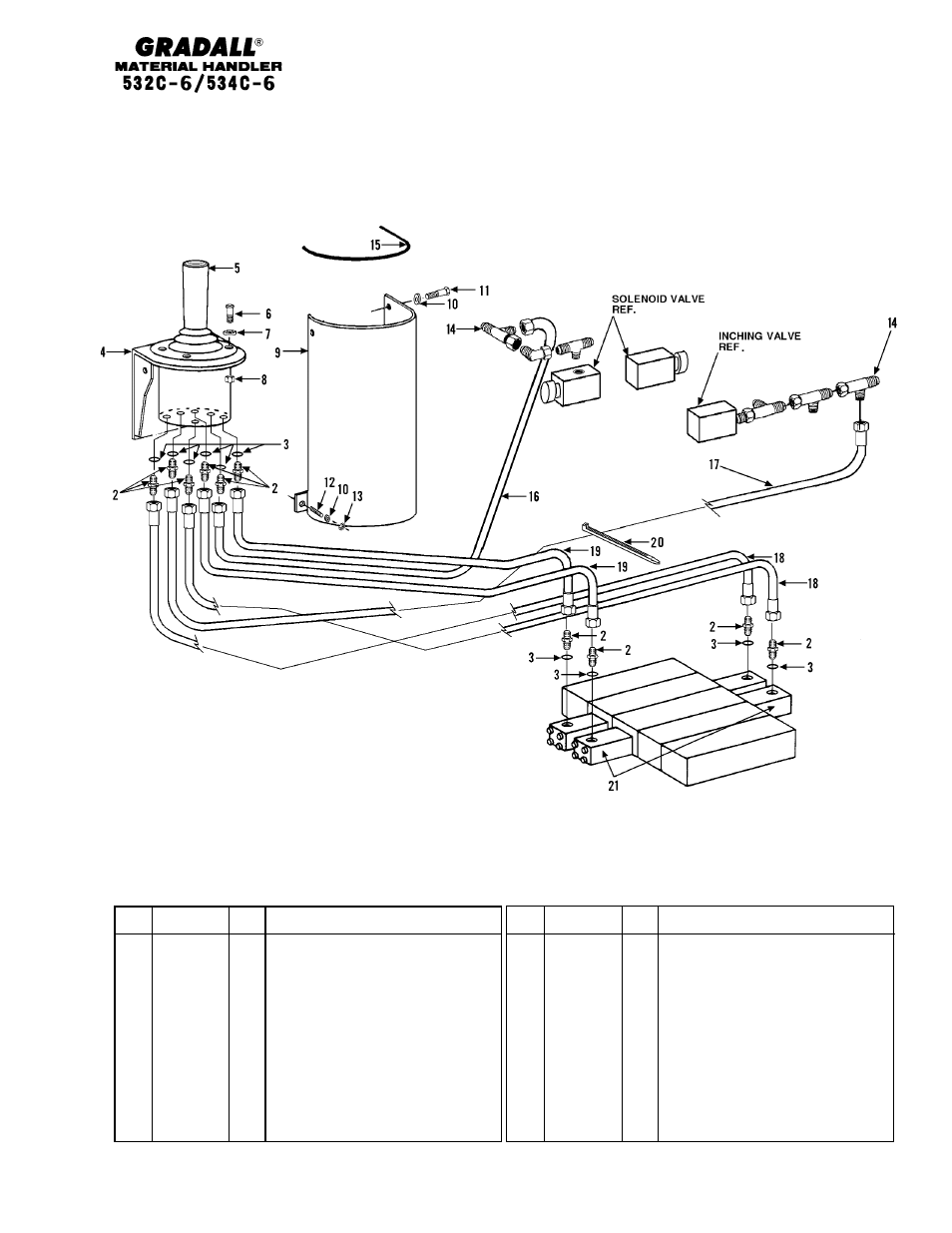

(9112-5023) Joystick Installation Assembly
Original Issue 3-93
Revised 10-13-95
* Changed upper left to designate model more clearly.
KG
Item
Part No.
Qty.
Description Of Part
9112-5023
1
JOYSTICK INSTALLATION ASSY
(includes all items)
1
9104-3063
1
SEAT (not illustrated)
2
8866-2005
10
CONNECTOR (includes item 3)
3
8859-1204
10
O-RING
4
9112-6035
1
JOYSTICK MOUNT WELDMENT
5
Ref
JOYSTICK ASSY (see page 13-22
for details)
6
8820-1004
4
HEX HD CAPSCREW, 1/4-20X7/8,
GR5
7
8855-1009
4
LOCKWASHER, 1/4
8
8850-1004
4
HEX NUT, 1/4-20
9
9104-6056
1
COVER
Item
Part No.
Qty.
Description Of Part
10
8855-1010
4
LOCKWASHER, 5/16
11
8820-1018
2
HEX HD CAPSCREW, 5/16-18X3/4,
GR5
12
8505-1384
2
WELD STUD, 5/16-18
13
8850-1005
2
HEX NUT, 5/16-18
14
8866-2239
2
SWIVEL NUT RUN TEE, 3/8 TUBE
15
9020-6194
AR
TRIM LOK
16
9020-4096
1
HOSE ASSY
17
7713-3197
1
HOSE ASSY
18
8471-7458
2
HOSE ASSY
19
8471-7519
2
HOSE ASSY
20
9002-7187
AR
TIE-WRAP
21
9112-3075
2
VALVE POSITIONER KIT
