HYDRAULIC COMPONENTS

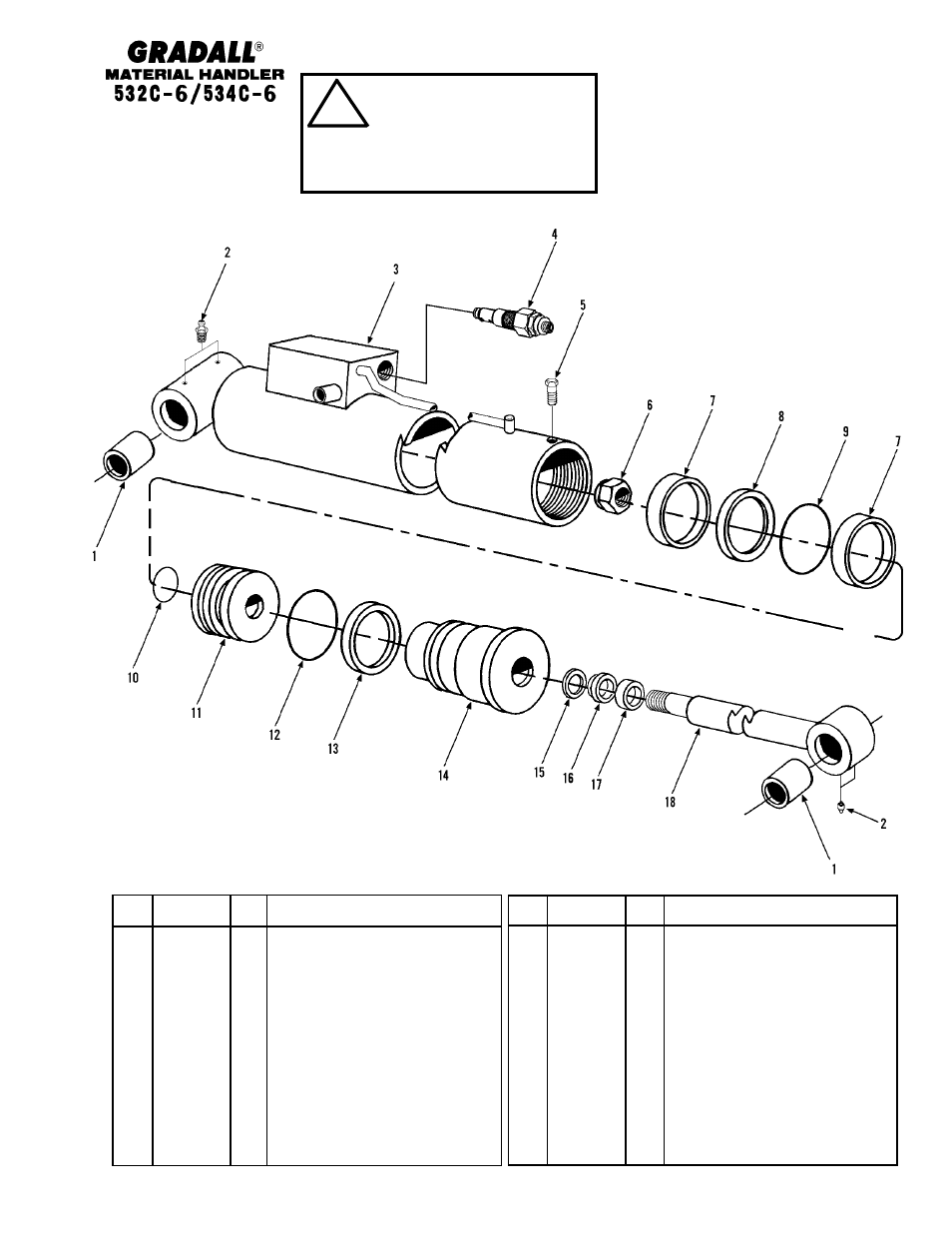

(9112-3111) Lift Cylinder - Iowa
Starting Serial No. 0288587, 0288692
0288695 Thru 0288715 &
0288940H Thru 0388020H
Starting Serial No. 0388088H -
Original Issue 7-95
Revised 10-20-95
!
NOTE: MACHINES WITH
S/N'S THAT END IN (H) WILL HAVE
IOWA CYLINDERS, UNLESS
OTHERWISE NOTED.
10-1
KG
Item
Part No.
Qty.
Description Of Part
9112-3111
1
LIFT CYLINDER ASSY (includes all
items)
9112-4071
1
SEAL KIT (includes items 7 thru 10,
12, 13 & 15 thru 17)
1
9108-3304
4
BUSHING
2
9114-4128
4
GREASE FITTING
3
9112-4072
1
CASE ASSY
4
9112-3089
1
COUNTERBALANCE VALVE
9103-4276
1
COUNTERBALANCE VALVE SEAL
KIT
5
9114-4017
1
CAPSCREW, #8X32X.375
6
9103-4153
1
LOCKNUT (lubricate & torque to
1400-1500 ft.lbs.)
7
2
WEAR RING
8
1
PISTON SEAL
Item
Part No.
Qty.
Description Of Part
9
1
O-RING
10
1
O-RING
11
9112-4073
1
PISTON
12
1
O-RING
13
1
BACK-UP RING
14
9112-4074
1
CYLINDER HEAD
15
1
STEP SEAL
16
1
U-CUP
17
1
WIPER
18
9112-4075
1
ROD ASSY
NOTE: ONLY ITEMS WITH PART
NUMBERS ARE AVAILABLE
FOR SERVICE.
* Changed S/N listings.
*
