13-18
OPTIONAL EQUIPMENT

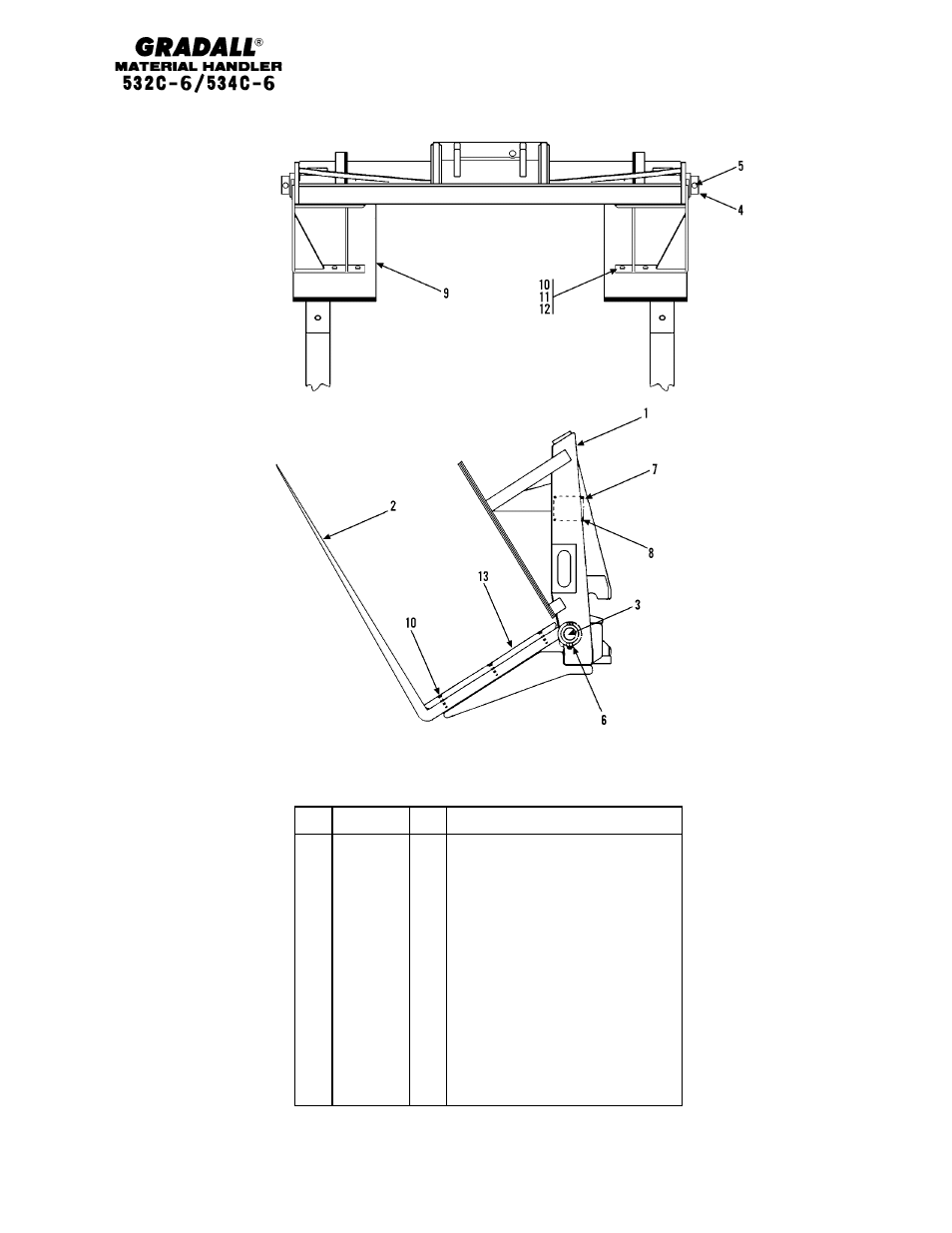

(9045-5043) Drywall Carriage Assembly
Original Issue 2-92
Revised 10-16-95
Item Part No. Qty. Description Of Part
9045-5043 Ref DRYWALL CARRIAGE ASSY
(includes all items)
1 9045-6004 1 DRYWALL CARRIAGE WELDMENT
2 9045-3013 2 DRYWALL FORK
3 9045-1020 2 FORK PIN
4 9020-0003 1 COLLAR TUBE
5 8820-1105 4 HEX HD CAPSCREW 5/8-11X4, GR5
6 8852-1310 4 HEX LOCKNUT, 5/8-11
7 9015-3001 1 ATTACHMENT SERIAL NUMBER
PLATE
8 8834-1022 4 DRIVE SCREW, #10X3/8
9 9055-3012 2 SIDE DRYWALL GUARD
10 8824-1053 14 SOCKET FLAT HD CAPSCREW,
3/8-16X1-1/2
11 8855-1011 8 LOCKWASHER, 3/8
12 8850-1006 8 HEX NUT, 3/8-16
13 9055-3013 2 BOTTOM DRYWALL GUARD
* Changed upper left to designate model more clearly. KG
