Gradall 534C-6 Parts Manual User Manual
Page 233

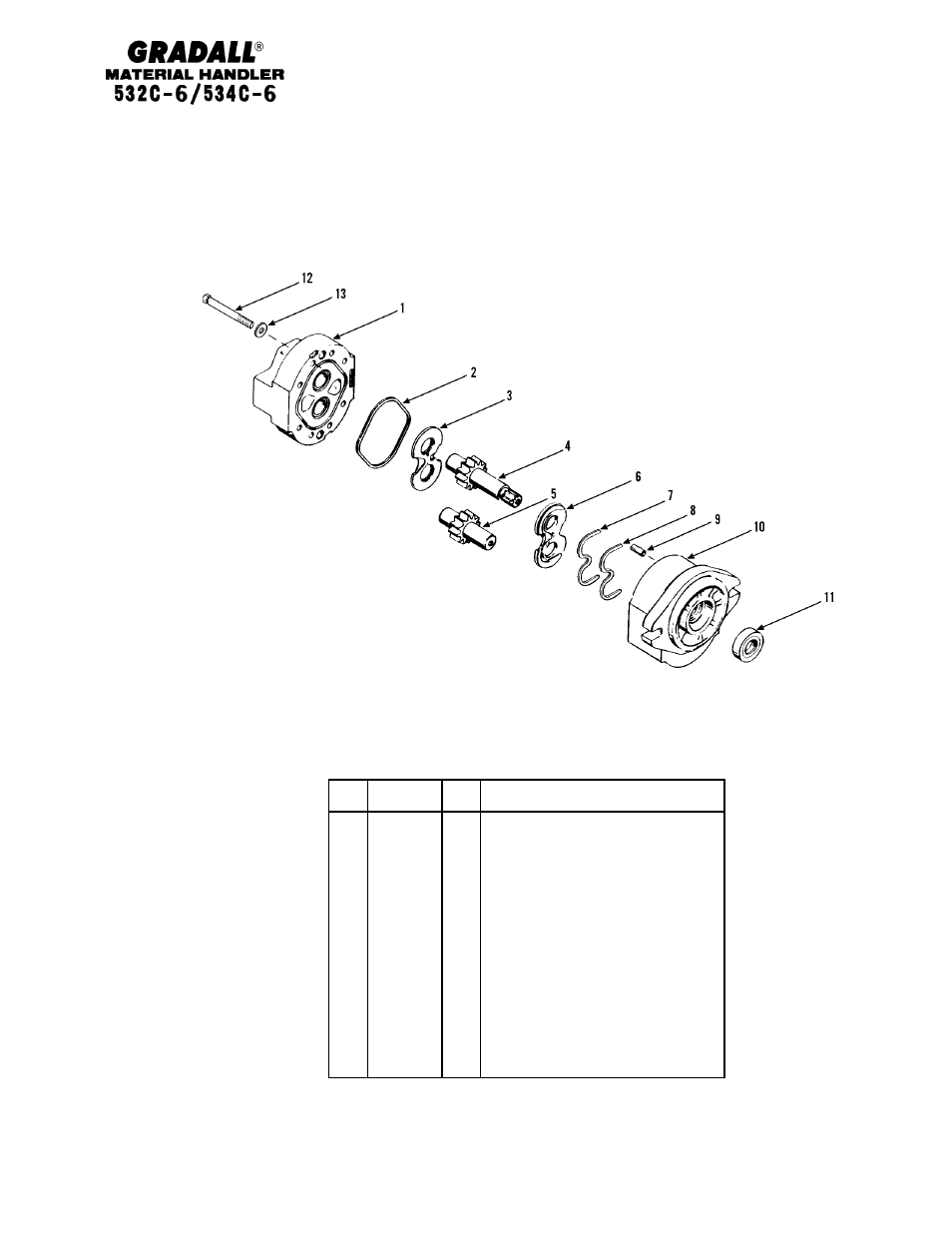

HYDRAULIC COMPONENTS
(9108-3296) Main Hydraulic Pump
Starting Serial No. 0188002
Original Issue 1-90
Revised 10-10-95
* Changed upper left to designate model more clearly.
KG
10-17
Item
Part No.
Qty.
Description Of Part
9108-3296
1
MAIN HYDRAULIC PUMP (includes
all items)
9108-4218
1
SEAL KIT (includes items 2, 3, 6, 7,
8 & 11)
1
9108-4144
1
REAR COVER
2
9108-4137
1
SEAL
3
9108-4138
1
THRUST PLATE
4
9108-4146
1
DRIVE GEAR
5
9108-4145
1
DRIVEN GEAR
6
9108-4139
1
WEAR PLATE
7
9108-4140
1
SEAL
8
9108-4142
1
SEAL SPACER
9
9108-4143
2
DOWEL PIN
10
9108-4147
1
BODY
11
9108-4141
1
SHAFT SEAL
12
9108-4135
8
HEX HD CAPSCREW
13
9108-4136
8
FLATWASHER
