Gradall 534C-6 Parts Manual User Manual
Page 216
10-8
Item
Part No.
Qty.
Description Of Part
9108-3281
2
STEERING CYLINDER ASSY (includes
all items)
9108-4183
Ref
SEAL KIT (includes items 5, 6, 7, 8, 10,
11, 13 &14)
1
9108-4178
1
TUBE ASSY
2
9108-4194
1
BUSHING
3
8867-1033
2
LUBE FITTING -STRAIGHT, 1/4-28
4
9108-4177
1
NUT
5
2
WEAR RING
6
1
SEAL
7
1
O-RING
8
1
O-RING
9
9108-4179
1
PISTON
10
1
BACK-UP RING
11
1
O-RING
12
9108-4181
1
GLAND
13
1
SEAL
14
1
WIPER
15
9108-4180
1
ROD ASSY
16
9104-3246
1
BUSHING
NOTE: ONLY ITEMS WITH PART
NUMBERS ARE AVAILABLE
FOR SERVICE.
!
NOTE: MACHINES WITH
S/N'S THAT END IN (H) WILL HAVE
IOWA CYLINDERS, UNLESS
OTHERWISE NOTED.
SVC
* Revised part number on item 16.

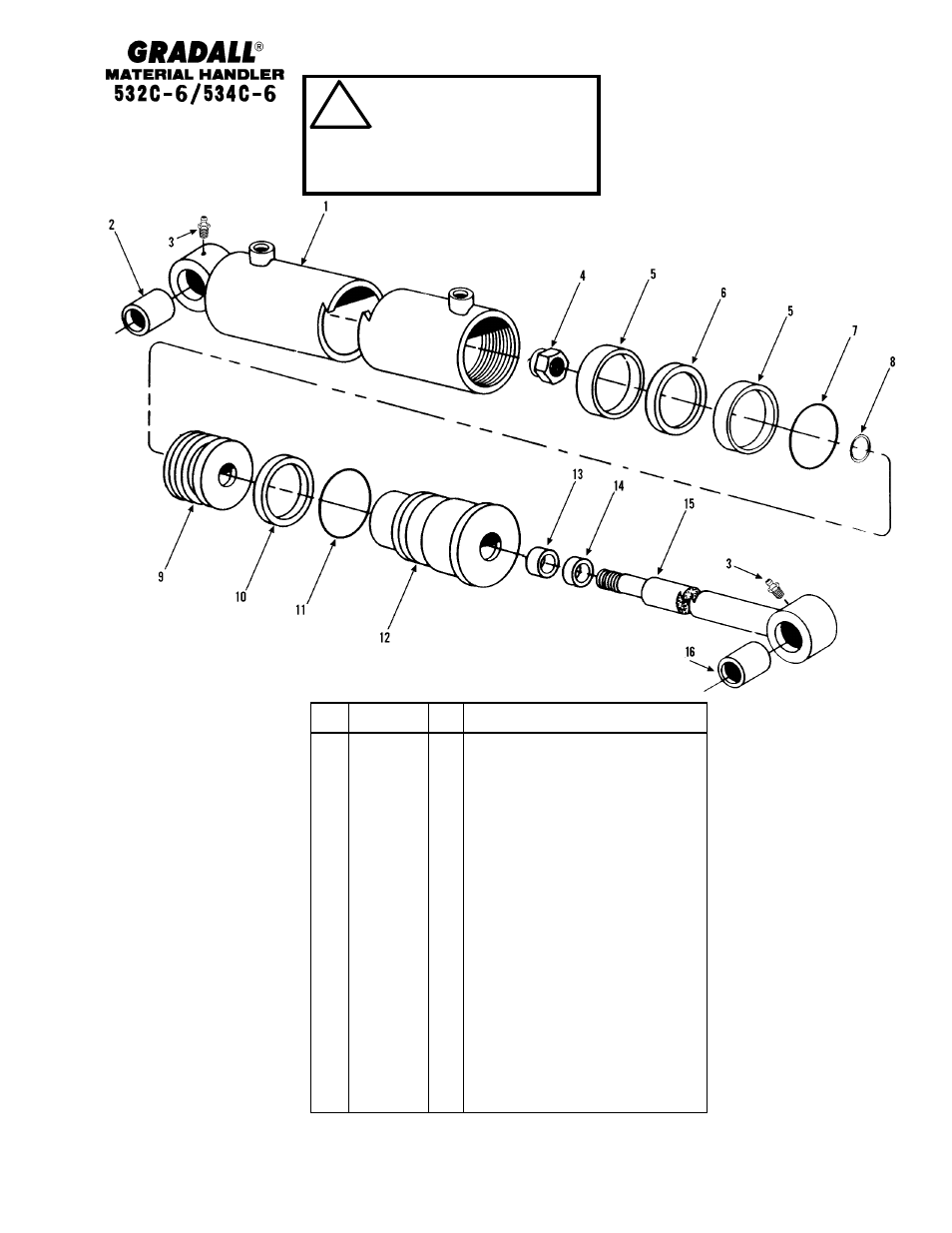

HYDRAULIC COMPONENTS
(9108-3281) Steering Cylinder - Seitz
Starting Serial No. 0188002 Thru 0288586,
0288588 Thru 0288691, 0288693,
0288694, & 0288716 Thru 0288939,
0388021 thru 0388087
Original Issue 1-90
Revised 5-12-00
*
