Item Part No. Qty. Description Of Part
1 Ref BRAKE VALVE, (see page 10-13 for
details)
2 9112-6050 1 FLOOR PLATE WELDMENT
3 8820-1022 3 HEX HD CAPSCREW, 5/16-18X1-1/2,
GR5
4 8855-1010 4 LOCKWASHER, 5/16
5 8850-1005 3 HEX NUT 5/16-18 532C-6)
6 9108-6090 1 BRAKE PEDAL
7 9020-0284 1 SHAFT
8 8844-1001 2 SQUARE HD SET SCREW,
1/4-20X1/2
9 9108-3312 1 CAM ROLLER
10 8850-1405 1 HEX JAM NUT, 5/16-24
11 9104-3286 1 SPRING
12 9108-1332 1 LINKAGE ROD
13 8850-1406 2 HEX JAM NUT, 3/8-24
14 8882-1004 2 YOKE END
15 9002-7987 2 CLEVIS PIN
16 Ref INCHING VALVE, (see page 10-16
for details)
Item Part No. Qty. Description Of Part
17 8821-2228 2 SOCKET HD CAPSCREW,
5/16-18X1-1/4
18 9108-3136 4 BUSHING
19 Ref DASH HARNESS (see page 11-3 for
532C-6 & 11-4 for 534C-6 details)
20 9114-3141 1 CORD CONNECTOR (534C-6 only)
21 9108-3311 1 FOOT SWITCH (534C-6 only)
(includes item 28)
22 8826-1024 3 BUTTON HD CAPSCREW, 5/16-18X1,
GR5 (534C-6 only)
23 8850-1110 2 JAM NUT, 5/8-11 (534C-6 only)
24 8820-1103 1 HEX HD CAPSCREW, 5/8-11X3-1/2,
GR5 (534C-6 only)
25 8826-1024 3 BUTTON HD CAPSCREW,
5/16-18X1 (534C-6 only)
26 8855-1010 3 LOCKWASHER, 5/16 (534C-6 only)
27 8850-1005 3 HEX NUT, 5/16-18 (534C-6 only)
28 9112-4109 1 MICRO SWITCH (534C-6 only) *
CONTROLS

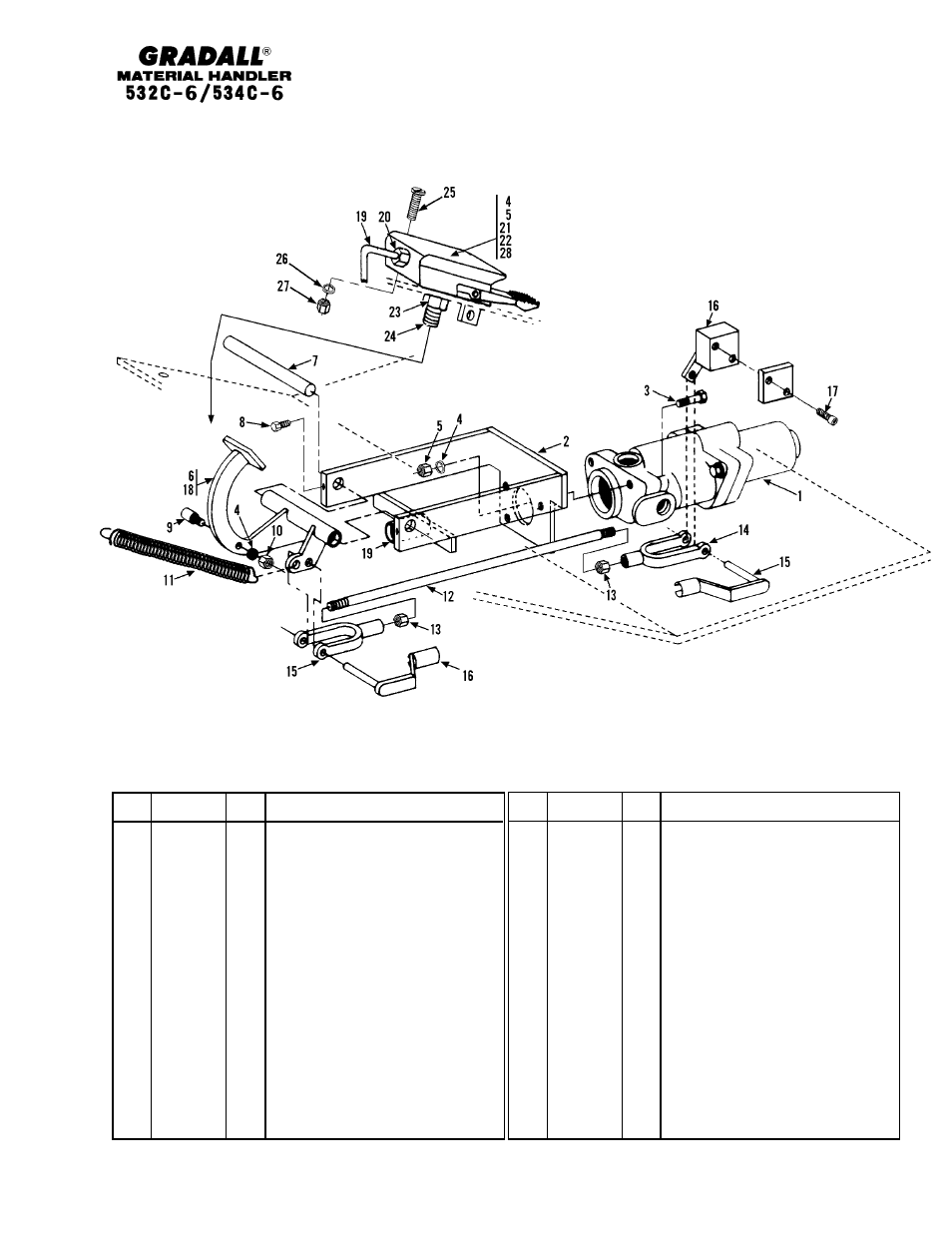

Brake & Inching Linkage
Starting Serial No. 0288777
Original Issue 10-95
Revised 6-6-97
KG
* Added item 28.
7-7
