Item
Part No.
Qty.
Description Of Part
18
2
O-RING
19
9108-4297
2
RELIEF VALVE CARTRIDGE
(includes items, 16, 17 & 18)
20
9108-4298
2
PLUG (includes item 21)
21
1
O-RING
22
9108-4299
1
ORIFICE
23
1
SPOOL (not sold separately,
order P/N 9108-3424)
24
9108-4300
1
O-RING
25
9108-4303
1
O-RING
26
8093-4205
2
HEX HD CAPSCREW, M6X30
27
9108-4301
1
COVER
28
1
O-RING
29
1
O-RING
30
1
O-RING
31
9108-4302
1
SOLENOID VALVE (includes items
28, 29 & 30)
32
9108-3441
1
CONNECTOR
33
9108-3442
2
TERMINAL
NOTE: ONLY ITEMS WITH PART
NUMBERS ARE AVAILABLE FOR
SERVICE.
Item
Part No.
Qty.
Description Of Part
9108-3424
1
TRACTION LOCK VALVE (includes
all items)
9108-4284
Ref
SEAL KIT (includes items 3, 4, 9, 12,
16, 17, 18, 21, 24, 25, 28, 29 & 30)
1
9108-4285
8
HEX HD CAPSCREW, M10X30
2
9108-4286
2
COVER
3
9108-4287
2
BACK-UP RING
4
9108-4288
2
O-RING
5
9108-4289
2
SPRING
6
1
SPOOL (not sold separately, order
P/N 9108-3424)
7
1
HOUSING (not sold separately, order
P/N 9108-3424)
8
9108-4290
2
PLUG (includes item 9)
9
2
O-RING
10
9108-4291
2
HEX HD CAPSCREW, M6X16
11
9108-4292
1
COVER
12
9108-4293
1
O-RING
13
9108-4294
1
SPRING
14
9108-4295
1
RETAINING RING
15
9108-4296
1
SPRING RETAINER
16
4
BACK-UP RING
17
2
O-RING
10-25
KG
* Changed upper left to designate model more clearly. Starting serial number incorrect.
NOTE: STARTING SERIAL NUMBER
0288251 IS INCORRECT. DISCARD PAGE
10-25 WITH S/N 0288251 AND REPLACE
IT WITH PAGE 10-25, STARTING
S/N 0188251.

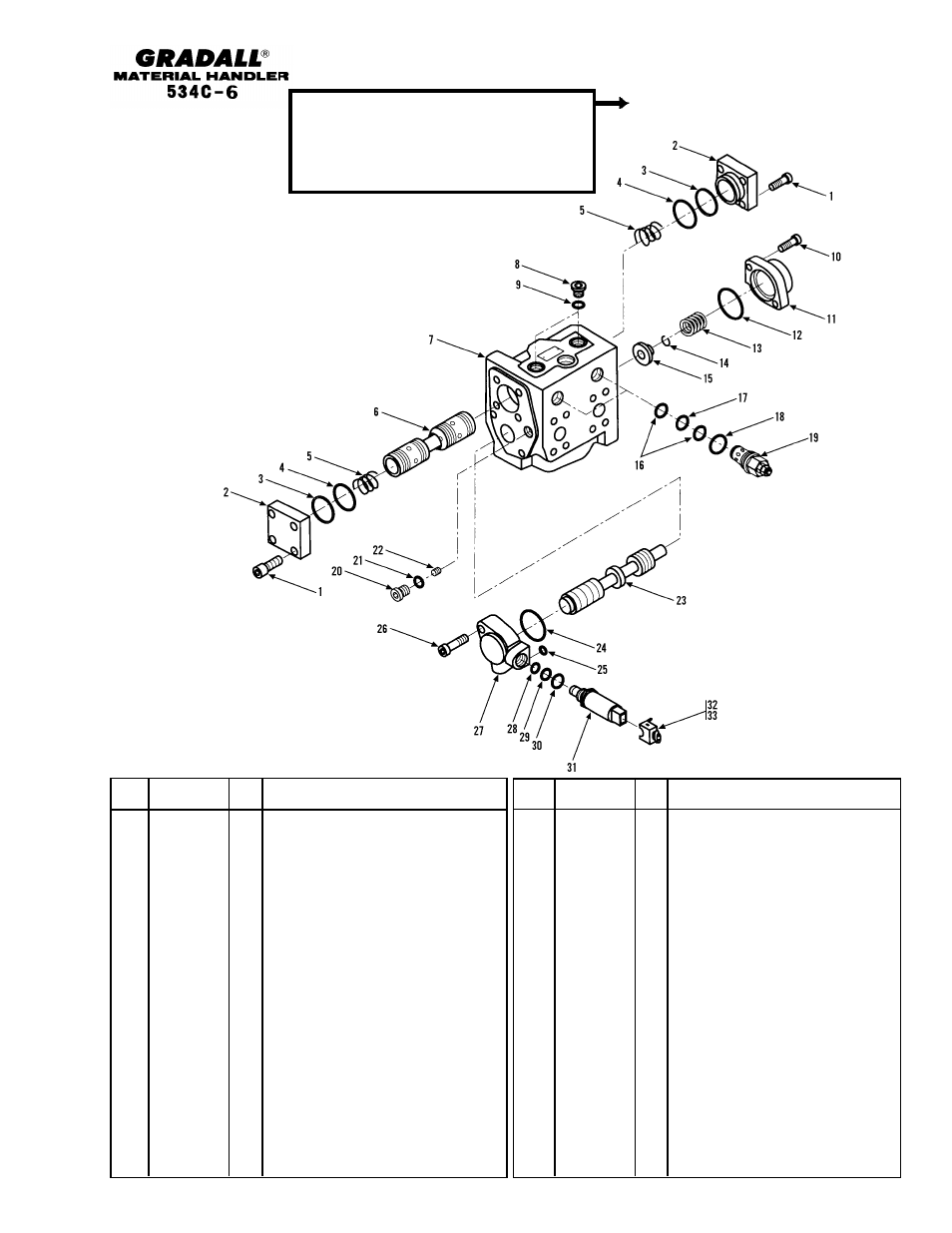

HYDRAULIC COMPONENTS
(9108-3424) Traction Lock Valve (534C-6)
Starting Serial No. 0188251
Original Issue 2-94
Revised 10-10-95
*
