DRIVE TRAIN

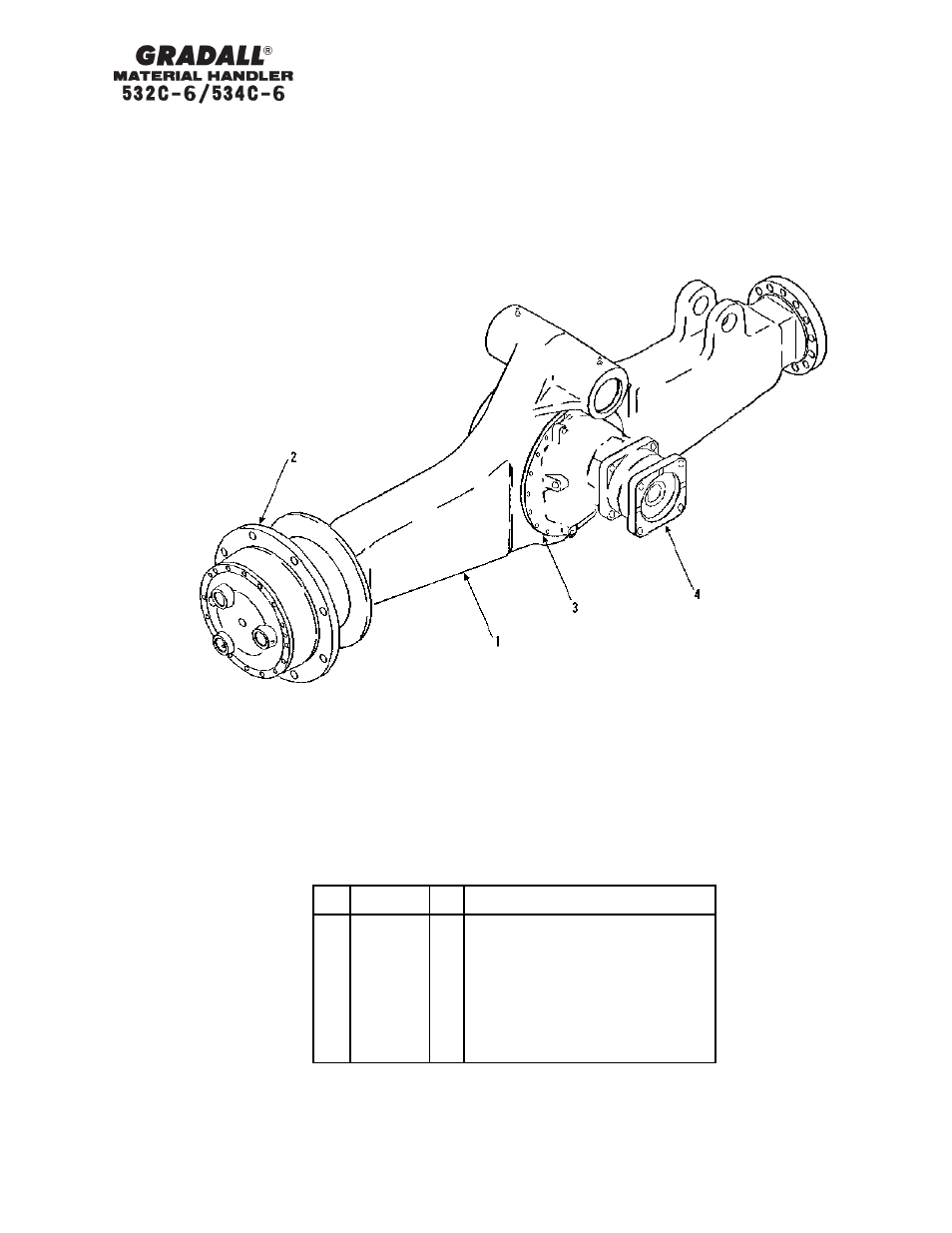

(9108-3267) Front Axle Assembly
Starting Serial No. 0188002
Original Issue 1-90
Revised 9-20-95
Item Part No. Qty. Description Of Part
9108-3267 1 FRONT AXLE ASSY (includes items 1
thru 4)
1 Ref AXLE HOUSING ASSY (see page 6-2
for details)
2 Ref WHEEL END ASSY (see page 6-5 for
details)
3 Ref CARRIER ASSY (see page 6-3 for
details)
4 Ref BRAKE ASSY (see page 6-4 for details)
