Gradall 534C-6 Parts Manual User Manual
Page 214
Item
Part No.
Qty.
Description Of Part
9108-3471
1
SWAY CYLINDER ASSY
(includes all items)
9108-4308
1
SEAL KIT (includes items 6 thru 9,
11, 12, & 14 thru 16)
1
9140-4352
2
BUSHING
2
9114-4128
2
GREASE FITTING
3
9112-4083
1
CASE ASSY
4
9114-4017
1
CAPSCREW, #8X32X.375
5
9103-4156
1
LOCKNUT (lubricate & torque to
350-400 ft.lbs.)
6
2
WEAR RING
7
1
PISTON SEAL
8
1
O-RING
Item
Part No.
Qty.
Description Of Part
9
1
O-RING
10
9112-4084
1
PISTON
11
1
O-RING
12
1
BACK-UP RING
13
9112-4085
1
CYLINDER HEAD
14
1
STEP SEAL
15
1
U-CUP
16
1
WIPER
17
9112-4086
1
ROD ASSY
NOTE: ONLY ITEMS WITH PART
NUMBERS ARE AVAILABLE
FOR SERVICE.
10-7
JM
!
NOTE: MACHINES WITH
S/N'S THAT END IN (H) WILL HAVE
IOWA CYLINDERS, UNLESS
OTHERWISE NOTED.
HYDRAULIC COMPONENTS

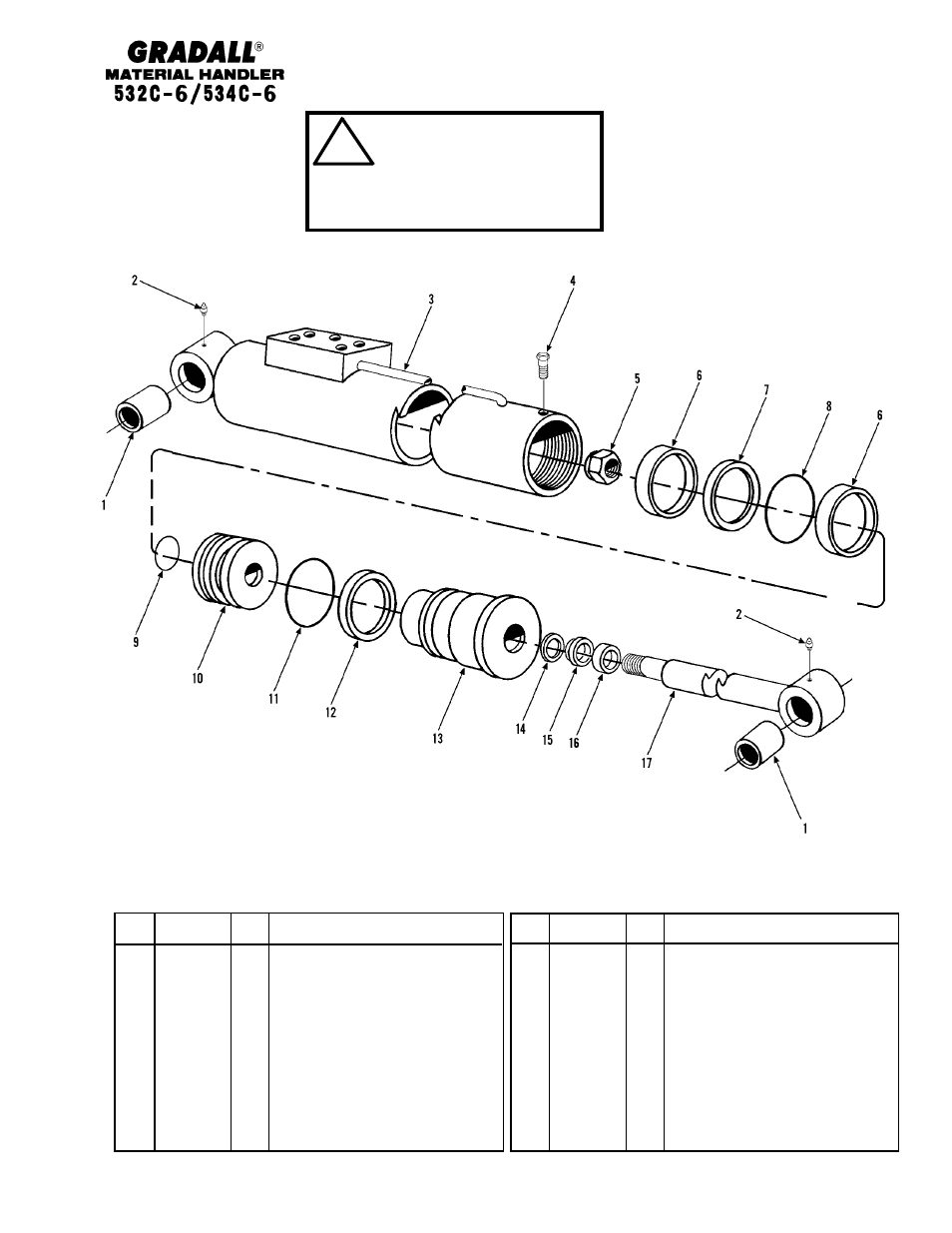

(9108-3471) Sway Cylinder - Iowa
Starting Serial No. 0288587, 0288692
0288695 Thru 0288715 &
0288940H Thru 0388020H,
Starting S/N 0388088H -
Original Issue 7-95
Revised 6-27-07
*
* Revised part number on item 1.
