3-3

BOOM

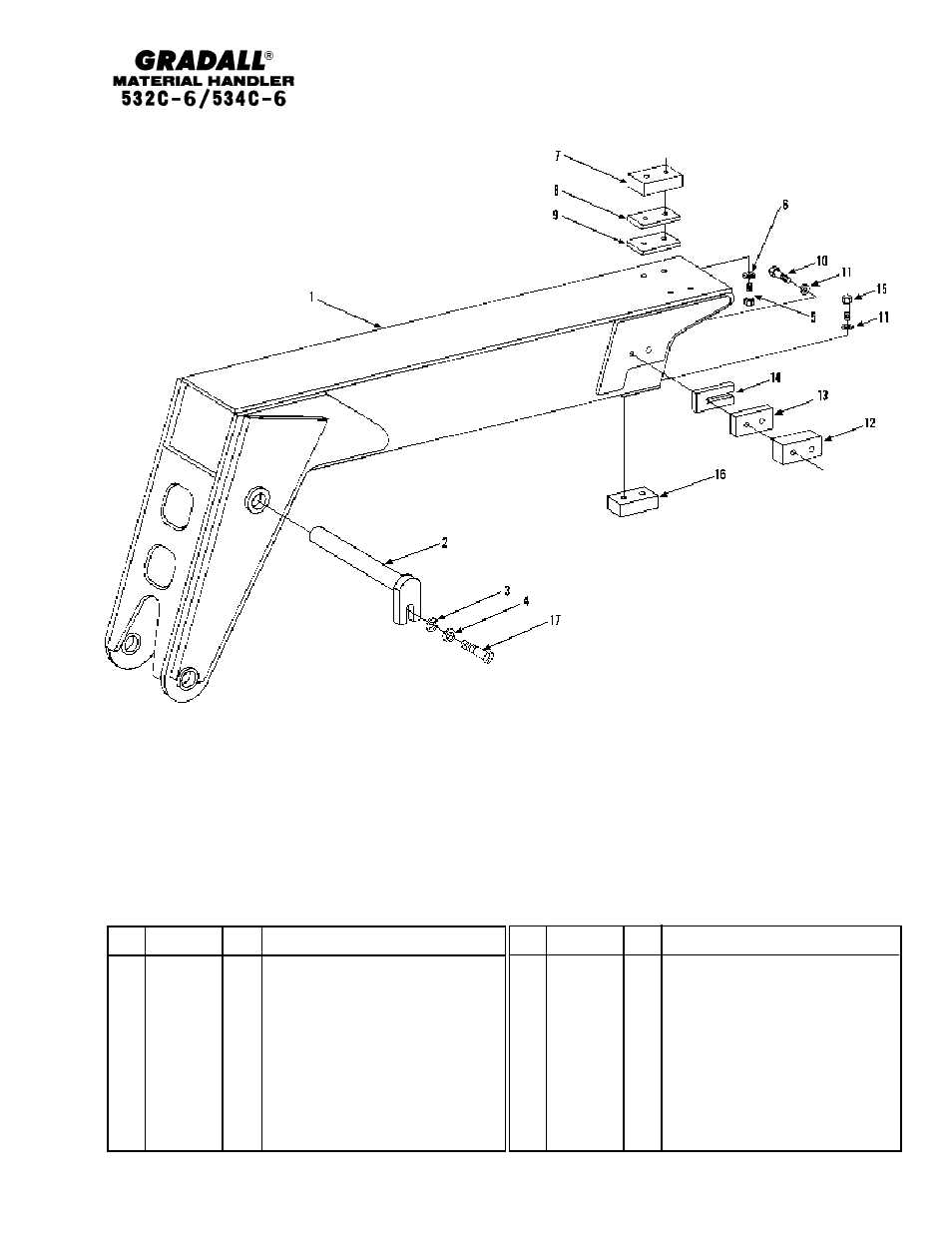

Third Boom Section

Starting Serial No. 0188002

Original Issue 1-90

Revised 9-14-95

Item

Part No.

Qty.

Description Of Part

10

8820-1532

4

HEX HD CAPSCREW, 3/8-24X3/4,
GR5 (torque to 32-37 ft.lbs.)

8820-1534

AR

HEX HD CAPSCREW, 3/8-24X1, GR5
(torque to 32-37 ft.lbs.)

11

8856-1109

8

FLATWASHER, 3/8

12

9103-3186

2

BEARING PAD

13

9103-1236

2

SPACER

14

9020-5870

AR

SHIM

15

8820-1535

4

HEX HD CAPSCREW, 3/8-24X1-1/4,
GR5 (torque to 32-37 ft.lbs.)

16

9112-3019

2

BEARING PAD

17

8820-1065

1

HEX HD CAPSCREW, 1/2-13X1, GR5

Item

Part No.

Qty.

Description Of Part

1

9112-6013

1

BOOM, THIRD SECTION

2

9114-6052

1

PIN WELDMENT

3

8855-1013

1

LOCKWASHER, 1/2"

4

8362-1283

1

WASHER

5

8820-1565

4

HEX HD CAPSCREW, 1/2-20X1-1/4,
GR5 (torque to 68-78 ft.lbs.)

8820-1566

AR

HEX HD CAPSCREW, 1/2-20X1-1/2,
GR5 (torque to 68-78 ft.lbs.)

6

9002-7471

4

HARDENED FLATWASHER, 1/2

7

9108-3297

2

BEARING PAD

8

9108-1447

2

SPACER

9

9112-1081

AR

SHIM

1). Add bearing pad shims & spacers as required to shim

boom to within 1/16" of a tight fit. Amounts of shims can vary at
each shim point. When a shim is used with a pad, a spacer must be
inserted between pad & shim. No pads shall sit directly on slotted
surface of shims.

2). The length of pad bolts depend on the amount of shims

used. Bolt cannot extend past chamfer on bearing.

NOTE:

KG

* Changed logo in upper left, added torque notes to items 5, 10 & 15, changed part numbers on

items 2, 3, 4 & 12, added item 17 & added note

*

*

*

*

*

*

*

*

*

*
