13-2
OPTIONAL EQUIPMENT

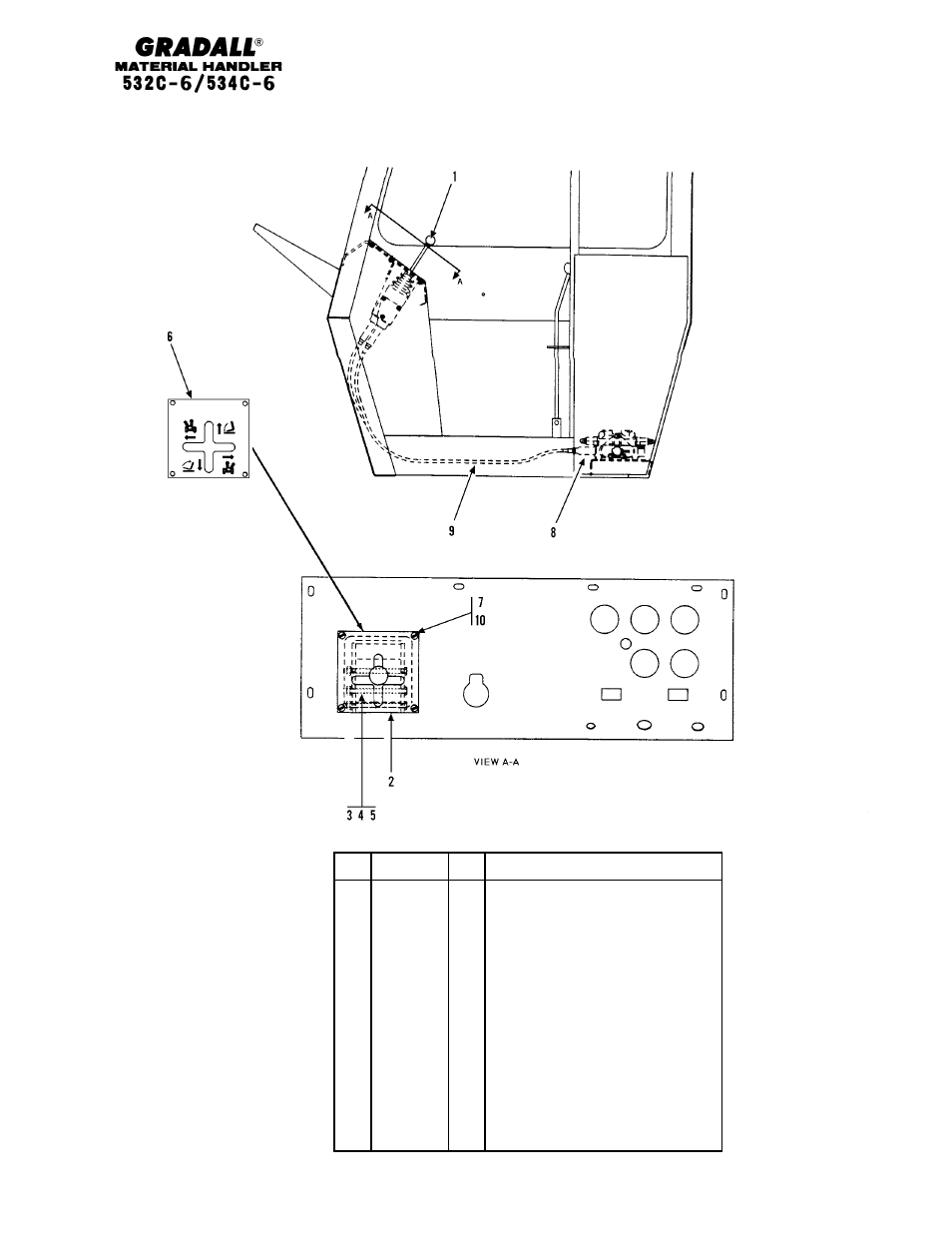

(9108-5046) L.H. Tilt/ Sway Control
Original Issue 3-90
Revised 8-30-02
TT
Item Part No. Qty. Description Of Part
9108-5046 Ref L.H. TILT/SWAY CONTROL LEVER
ASSY (includes all items except four
of item 4, and items 7 & 10)
1 9108-3107 1 REMOTE VALVE CONTROL
9108-4282 1 KNOB
9108-4359 1 BOOT
2 9108-6089 1 BRACKET
3 1100-2410 3 HEX HD CAPSCREW, 1/4-28X4-1/2,
GR5
4 8855-1009 7 LOCKWASHER, 1/4
5 8850-1304 3 HEX NUT, 1/4-28
6 9108-3341 1 TILT/SWAY CONTROL PLATE
7 8830-1141 4 ROUND HD MACHINE SCREW,
5/16-18X3/4
8 9112-3062 2 CABLE ADAPTER
9 9108-3393 2 CONTROL CABLE
10 8855-1010 4 LOCKWASHER, 5/16
*
* Added part number 9108-4359 to item 1.
