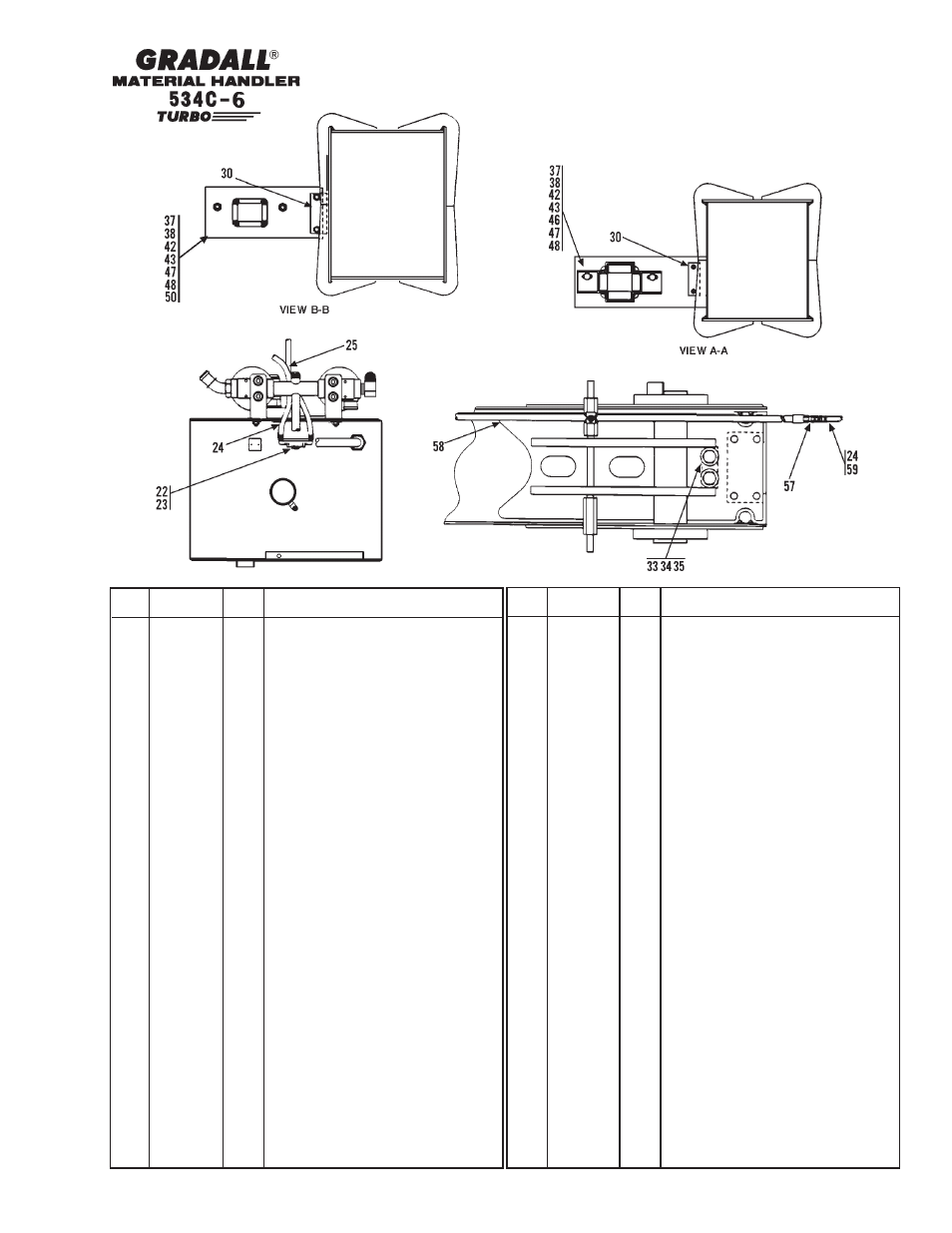

13-40
Item
Part No.
Qty.
Description Of Part
9112-5092
1
WINCH INSTALLATION, (includes
all items)
1
9112-1158
1
WINCH MOUNTING PLATE
2
9112-1159
1
STOWAGE BRACKET
3
9136-3079
1
WINCH
4
8820-1071
4
HEX HD CAPSCREW, 1/2-13X2-1/2,
GR5
5
9002-7471
8
HARDENED WASHER, 1/2
6
9103-3161
2
FLOW REGULATOR
7
9103-3230
2
TUBE END REDUCER
8
8866-2106
2
ELBOW, 90 DEGREES, (swivel nut)
9
9112-3022
1
ELBOW, 90 DEGREES
10
8866-1011
1
MALE CONNECTOR, 1/4X1/2 TUBE
11
8471-8145
1
HOSE ASSY
12
8471-8548
1
HOSE ASSY
13
8471-8159
1
HOSE ASSY
14
8866-1013
2
MALE CONNECTOR, 1/2X1/2 TUBE
15
9116-3139
1
FEMALE HYDRAULIC COUPLER
16
9104-3125
1
DUST PLUG
17
9116-3138
1
MALE HYDRAULIC COUPLER
18
9104-3126
1
DUST PLUG
19
9020-7882
1
CABLE
20
9020-1443
1
HOOK & BALL
21
8850-1008
4
HEX NUT, 1/2X13
22
8866-2224
1
SWIVEL NUT BRANCH TEE,
3/8 TUBE
23
8866-2105
2
ELBOW, 90 DEGREES, (swivel nut)
24
8471-6359
1
HOSE ASSY
25
9002-7187
4
TIE WRAP
26
9108-3535
1
CAUTION DECAL
27
9002-8990
1
WIRE ROPE CLIP
28
9104-1261
1
SINGLE REEL MTG BRACKET
29
9112-1160
1
CLAMP SPACER
30
9112-1161
2
SUPPORT MOUNTING BLOCK
31
9112-1162
1
SUPPORT MOUNTING PAD
Item
Part No.
Qty.
Description Of Part
32
9102-1094
1
CHANNEL
33
9112-1163
1
RETRACTION RESTRICTOR
34
9002-7475
2
HARDENED WASHER
35
8320-1053
2
HEX HD CAPSCREW, 1-8X3, GR8,
(torque to 795-845 ft. lbs.)
36
9108-6143
1
SINGLE REEL BRACKET
37
8820-1064
10
HEX HD CAPSCREW, 1/2-13X7/8,
GR5
38
8855-1013
12
LOCKWASHER, 1/2
39
9104-3165
1
SINGLE HOSE REEL
40
8820-1037
4
HEX HD CAPSCREW, 3/8-16X1-1/2,
GR5
41
8856-1004
4
FLATWASHER, 3/8
42
8855-1011
12
LOCKWASHER, 3/8
43
8850-1006
12
HEX NUT, 3/8-16
44
8866-1013
2
MALE CONNECTOR,1/2X1/2 TUBE
45
8866-2120
1
ELBOW, 45 DEGREES, (swivel nut)
46
9136-1036
1
ROLLER SUPPORT
47
9136-3186
2
ROLLER ASSY
48
8820-1036
8
HEX HD CAPSCREW, 3/8-16X1-1/4,
GR5
49
9108-3216
1
CUSHION CLAMP
50
9136-1037
1
ROLLER SUPPORT
51
9108-6144
1
HOSE SUPPORT
52
8820-1065
2
HEX HD CAPSCREW, 1/2-13X1, GR5
53
9002-7180
1
ELBOW, 90 DEGREES, 1/2 TUBE
54
8471-9096
1
HOSE ASSY
55
9020-7463
4
CUSHION CLAMP
56
8471-8314
1
HOSE ASSY
57
8866-1064
1
UNION, 3/8 TUBE
58
8471-7453
1
HOSE ASSY
59
9108-3217
1
CUSHION CLAMP
60
9020-6089
1
ANCHOR CHANNEL
61
9112-3073
1
TUBE ASSY
PCN 990064, 010018,
ER 46361 - LK
OPTIONAL EQUIPMENT
(9112-5092) Winch Installation
42' Boom Only
Starting Serial No. 0488238
Original Issue 12-97
Revised 7-27-06
* Revised illustration & parts list.
