PCN 960341-KG

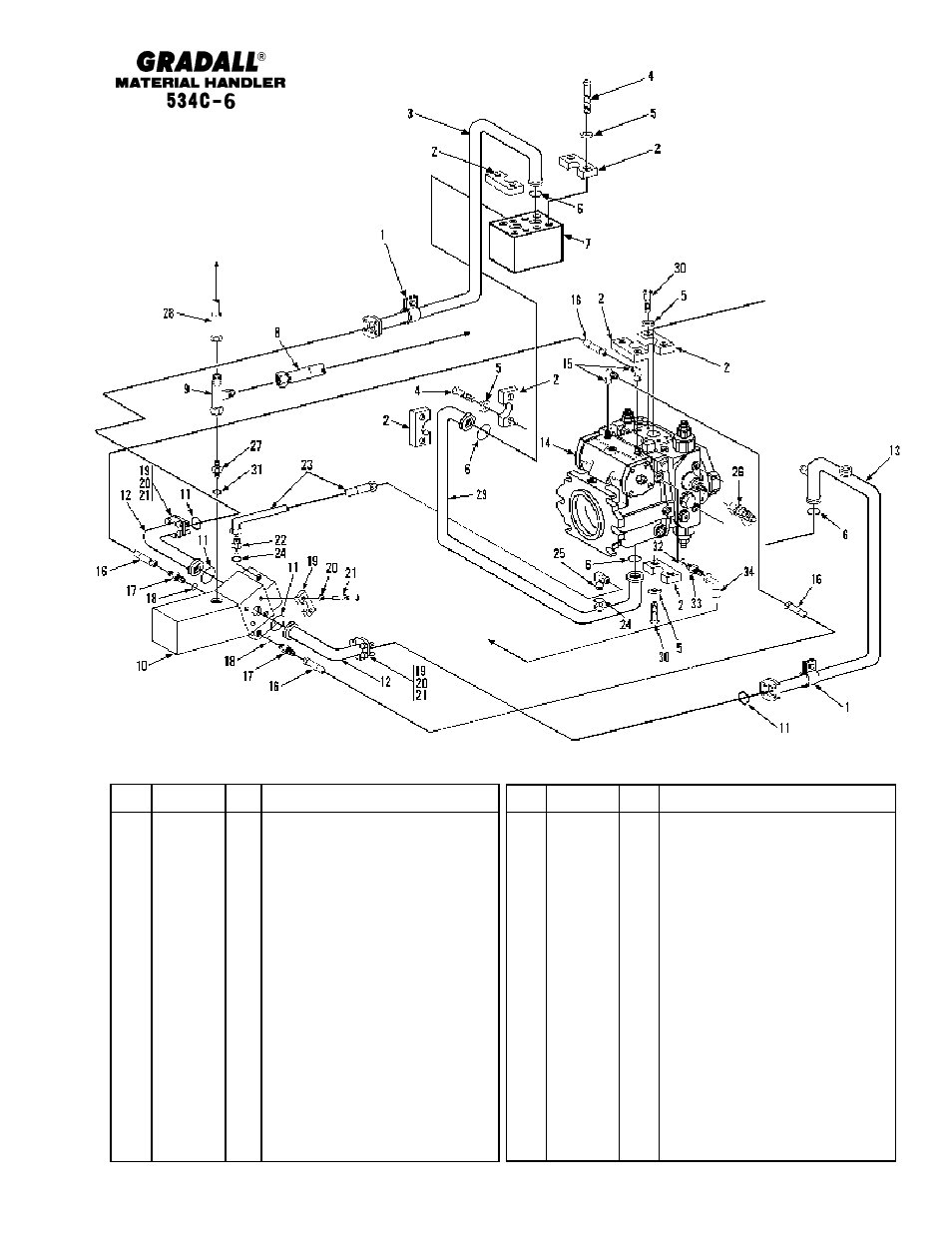

HYDRAULIC CIRCUITS
(534C-6) Drive Circuit - Front
Starting Serial No. 0388349
Original Issue 6-96
Revised 4-2-97
9-5
Item Part No. Qty. Description Of Part
17 8866-2003 2 CONNECTOR (includes item 18)
18 8859-1202 2 O-RING
19 8471-2739 8 SPLIT FLANGE CLAMP
20 8856-1013 16 LOCKWASHER, 1/2
21 8320-1120 16 HEX HD CAPSCREW, 1/2-13X1-3/4,
GR5
22 8866-2017 1 CONNECTOR (includes item 24)
23 8471-8931 1 HOSE ASSY
24 8859-1204 1 O-RING
25 8866-2064 1 ELBOW, 90 DEGREES (includes
item 24)
26 9105-3020 2 TEST COUPLING
27 9105-3426 1 STRAIGHT THREAD ADAPTER
(includes item 31)
28 8471-7832 1 HOSE ASSY
29 9116-3201 1 TUBE ASSY
30 8320-1135 8 HEX HD CAPSCREW, 7/16-14X1-1/2,
GR8
31 8859-1207 1 O-RING
32 8859-1205 1 O-RING
33 8866-2018 1 CONNECTOR (includes item 32)
34 8471-7341 1 HOSE ASSY
Item Part No. Qty. Description Of Part
1 9020-5792 2 CUSHION CLAMP
2 8471-2738 8 SPLIT FLANGE CLAMP
3 9108-3418 1 TUBE ASSY
4 8320-1155 8 HEX HD CAPSCREW, 7/16-14X1-3/4,
GR8
5 8855-1012 16 LOCKWASHER, 7/16
6 9108-3106 3 O-RING
7 Ref TRACTION LOCK VALVE (see page
10-25 for details)
8 8471-7911 1 HOSE ASSY
9 8866-2239 1 SWIVEL NUT RUN TEE, 3/8 TUBE
10 Ref FRONT DRIVE MOTOR (see page
10-20 for details)
11 9108-3339 4 O-RING
12 8471-8658 2 HOSE ASSY
13 9114-3055 1 TUBE ASSY
14 Ref HYDROSTATIC TRANSMISSION
PUMP (see page 10-18 for details)
15 9002-7906 2 ELBOW, 90 DEGREES (includes
o-ring)
8859-1204 2 O-RING
16 8471-8934 2 HOSE ASSY
TO FLOW DIVIDER
VALVE (see page 9-1)
TO DUMP CIRCUIT
(see page 9-2)
TO TEE
(see page 8-5)
*
* Changed part number on item 16.
