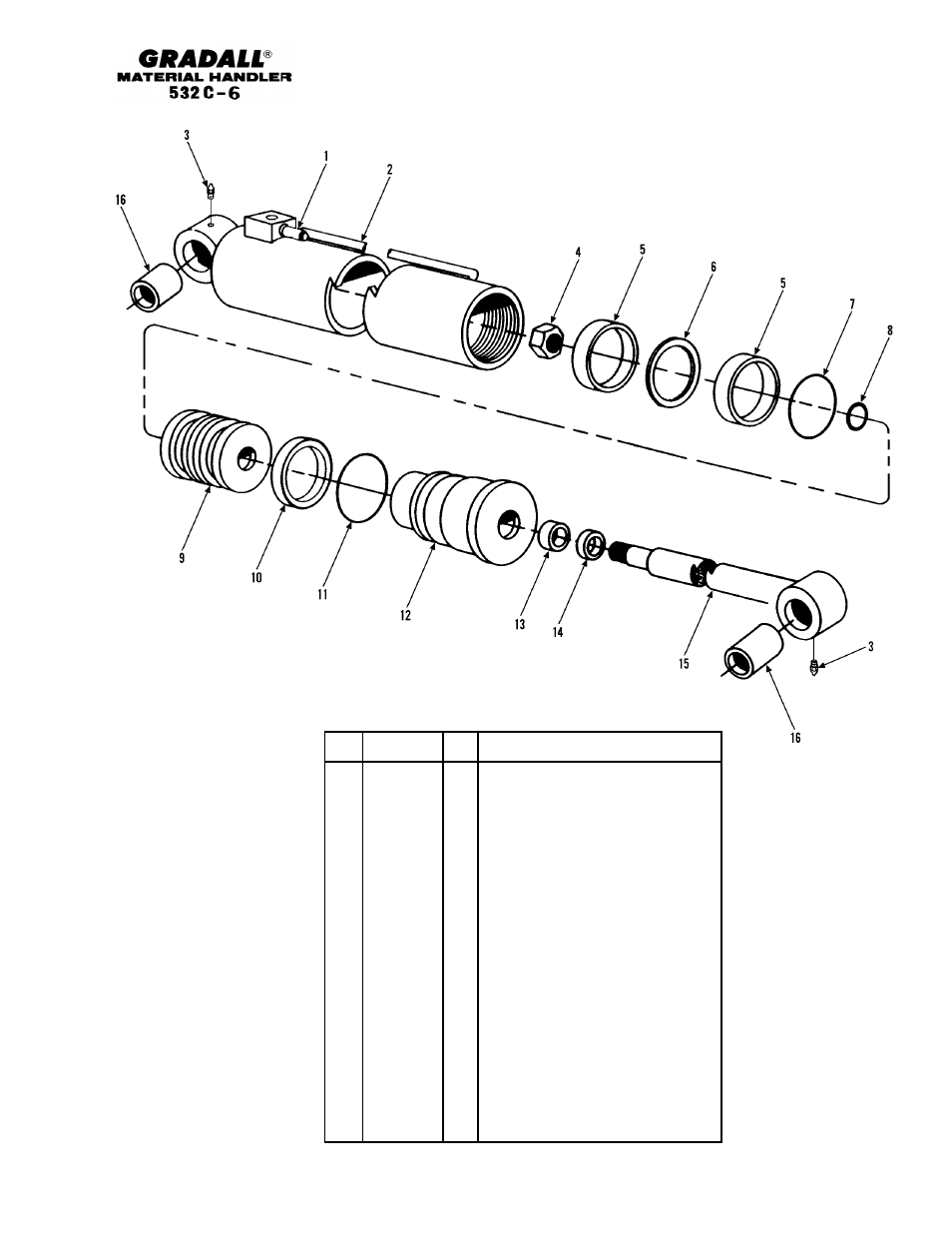

HYDRAULIC COMPONENTS

Tilt Cylinder (532)

Starting Serial No. 0188002

Original Issue 1-90

Revised 10-10-95

10-4

Item

Part No.

Qty.

Description Of Part

9112-3067

1

TILT CYLINDER ASSY (includes all
items)

9103-4278

Ref

SEAL KIT (includes items 5, 6, 7, 8,
10, 11, 13 & 14)

1

9103-3430

1

COUNTERBALANCE VALVE

2

9112-4053

1

TUBE ASSY

3

8867-1033

2

LUBE FITTING, STRAIGHT, 1/4-28

4

9103-4280

1

NUT

5

2

WEAR RING

6

1

SEAL

7

1

O-RING

8

1

O-RING

9

9103-4281

1

PISTON

10

1

BACK-UP RING

11

1

O-RING

12

9103-4282

1

GLAND

13

1

SEAL

14

1

WIPER

15

9112-4054

1

ROD ASSY

16

9108-4176

2

BUSHING

NOTE: ONLY ITEMS WITH PART
NUMBERS ARE AVAILABLE
FOR SERVICE.
