Old style, Use for service only) – Gradall 534C-6 Parts Manual User Manual
Page 58
Item
Part No.
Qty.
Description Of Part
9045-5007
1
48" CARRIAGE ASSY, (Includes all
items)
1
9080-1315
1
48" CARRIAGE WELDMENT
2
8820-1105
2
HEX HD CAPSCREW, 5/8-11X4,
GR5
3
9020-0003
2
COLLAR
4
8852-1310
2
HEX LOCKNUT, 5/8-11
5
9040-2477
1
FORK PIN
6
9015-3001
1
SERIAL NUMBER PLATE
7
8834-1022
4
DRIVE SCREW, #10X3/8
Item
Part No.
Qty.
Description Of Part
9045-5008
1
66" CARRIAGE ASSY, (includes all
items)
1
9080-1314
1
66" CARRIAGE WELDMENT
2
8820-1105
2
HEX HD CAPSCREW, 5/8-11X4,
GR5
3
9020-0003
2
COLLAR
4
8852-1310
2
HEX LOCKNUT, 5/8-11
5
9040-2478
1
FORK PIN
6
9015-3001
1
SERIAL NUMBER PLATE
7
8834-1022
4
DRIVE SCREW, #10X3/8
4-2
ATTACHMENTS

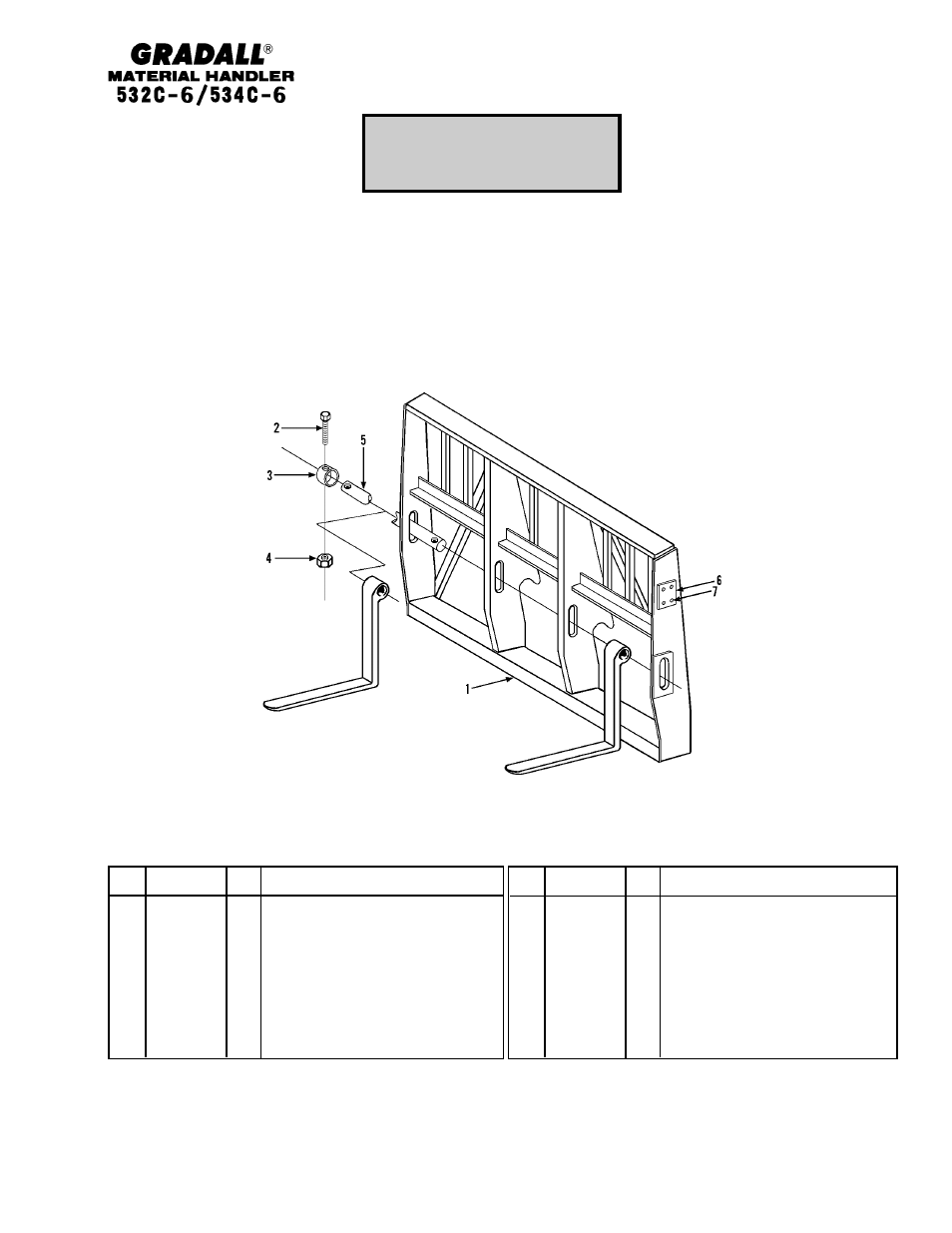

(9045-5007) & (9045-5008) Q.S. CARRIAGE ASSEMBLIES
Starting Serial No. 0188002
Original Issue 3-90
Revised 11-22-00
OLD STYLE
(USE FOR SERVICE ONLY)
NOTE:
MANY DIFFERENT FORK ASSEMBLIES
ARE AVAILABLE FOR THE CARRIAGE
ASSEMBLIES USED ON 532C-6/534C-6.
PLEASE SEE FORK INFORMATION PAGE,
(4-7) FOR LIST OF FORKS.
SVC
* Added fork note.
