6-5
DRIVE TRAIN

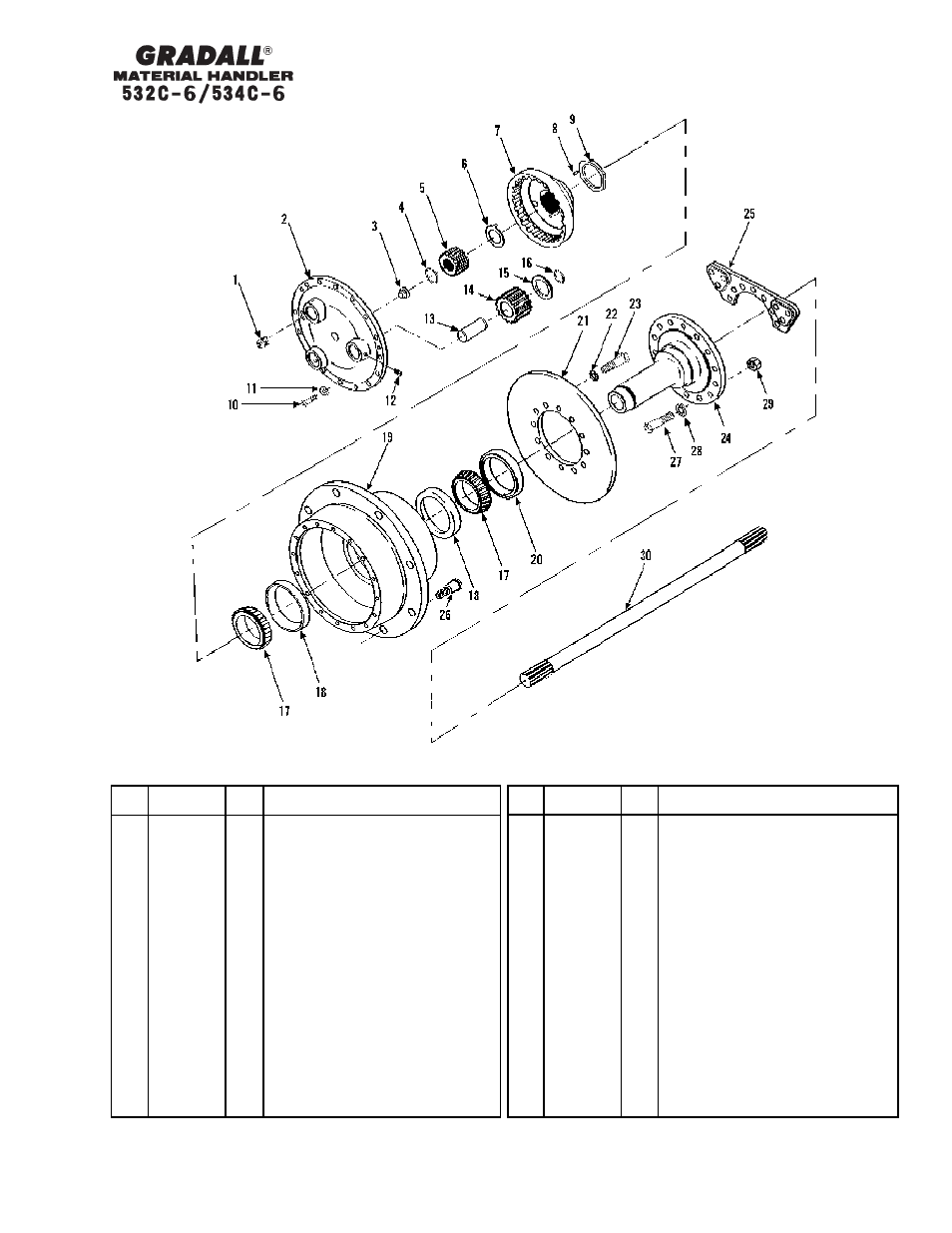

(9108-4164) Front Axle Shaft & Planetary Wheel End
Starting Serial No. 0188002
Original Issue 1-90
Revised 3-7-97
* Added part number to item 18 for service.
KG
Item
Part No.
Qty.
Description Of Part
9108-4164
2
WHEEL END ASSY (includes
all items)
1
7710-4343
2
FILLER LEVEL PLUG
2
9108-4105
2
PINION SPIDER
3
9108-4106
2
THRUST BUTTON
4
9108-4107
2
SNAP RING
5
9108-4108
2
SUN GEAR
6
9108-4109
2
THRUSTWASHER
7
9108-4110
2
RING GEAR
8
2
PIN
9
9108-4111
2
ADJUSTABLE LOCKNUT (includes
item 8)
10
9108-4112
32
CAPSCREW
11
9108-4113
32
WASHER
12
9108-4114
6
SET SCREW
13
9108-4115
6
PINION SHAFT
14
9108-4116
6
PINION GEAR
15
9108-4117
6
THRUSTWASHER
16
9108-4118
6
SNAP RING
Item
Part No.
Qty.
Description Of Part
17
9108-4119
2
BEARING CONE
18
8368-4127
2
BEARING CUP (pressed into hub)
19
9108-4120
2
WHEEL HUB (includes item 18)
20
9108-4121
2
OIL SEAL
21
9108-4122
2
BRAKE DISC
22
8308-1152
24
WASHER
23
9108-4123
24
CAPSCREW
24
9108-4124
2
SPINDLE
25
9108-4125
2
BRAKE ADAPTER
26
9108-4126
24
WHEEL STUD
27
9108-4127
14
CAPSCREW
9108-4128
14
CAPSCREW (w/o brake adapter)
28
9108-4129
28
WASHER
29
9108-4130
28
NUT
30
9108-4131
2
AXLE SHAFT
NOTE: ONLY ITEMS WITH PART
NUMBERS ARE AVAILBLE
FOR SERVICE.
*
