Connecting to a Console Port for Local Management
Adapter Wiring and Signal Assignments
Matrix E1 Series (1G58x-09 and 1H582-xx) Configuration Guide
2-7
2.1.5
Adapter Wiring and Signal Assignments

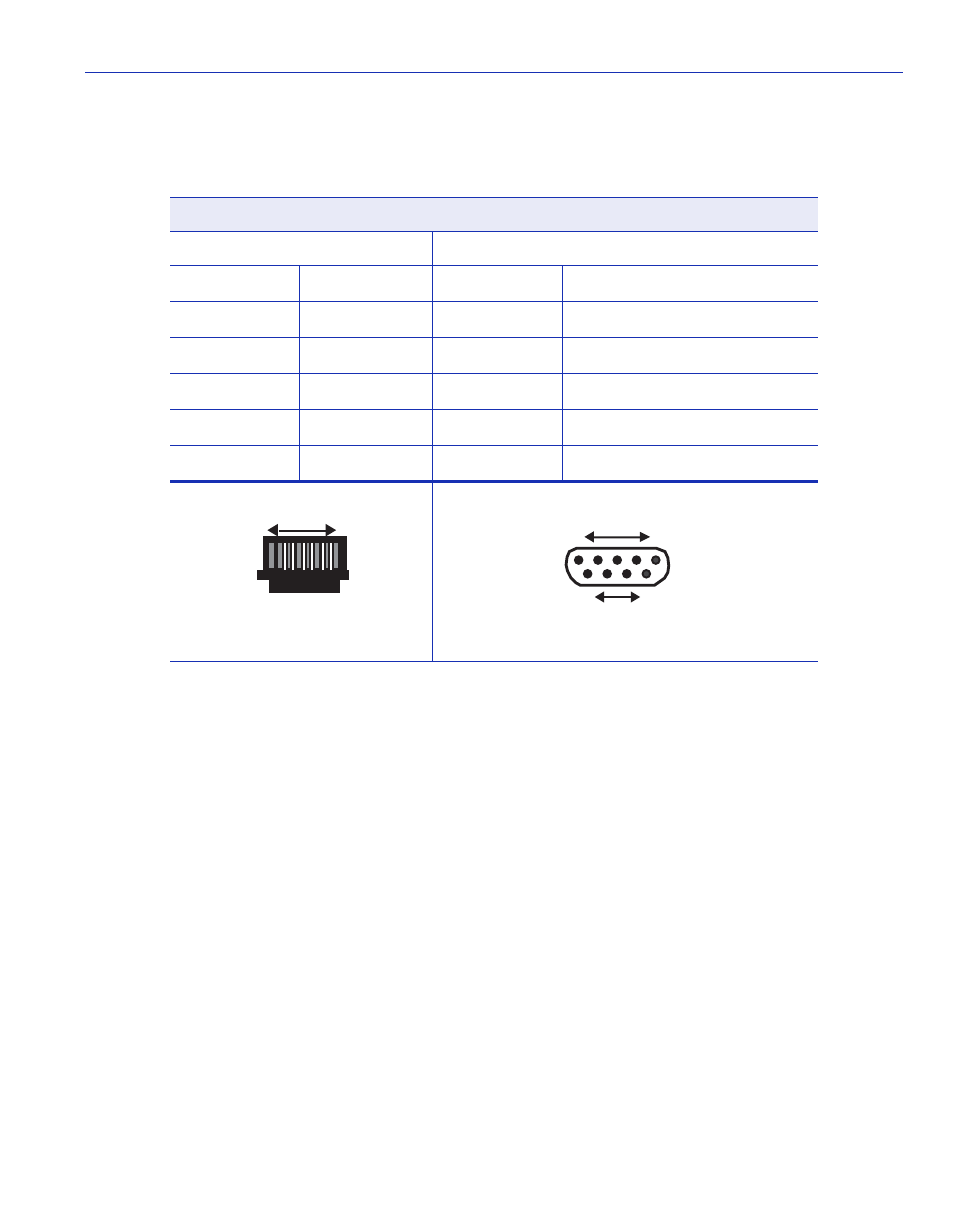

Console Port Adapter Wiring and Signal Diagram
RJ45
DB9
Pin
Conductor
Pin
Signal
1
Blue
2
Receive (RX)
4
Red
3
Transmit (TX)
5
Green
5
Ground (GRD)
2
Orange
7
Request to Send (RTS)
6
Yellow
8
Clear to Send (CTS)
RJ45 Connector (Female)
Pins
8
1
045905
6
9
DB9 Connector (Female)
1
5
Pins
045904
