Grass Valley PDR 200 Service Manual User Manual
Page 134
Chapter 6 Parts Removal and Replacement
6-42
PDR 200 Service Manual
13.Use the Torx tool with the T10 tip to remove the screws which secure the power
supply to the right side of the chassis (1 in Figure 6-28).
14.Slide the power supply towards the front and center of the chassis to clear the rear
panel switch and connector and right side chassis flange, and lift the power supply out
of the chassis (2 in Figure 6-28).

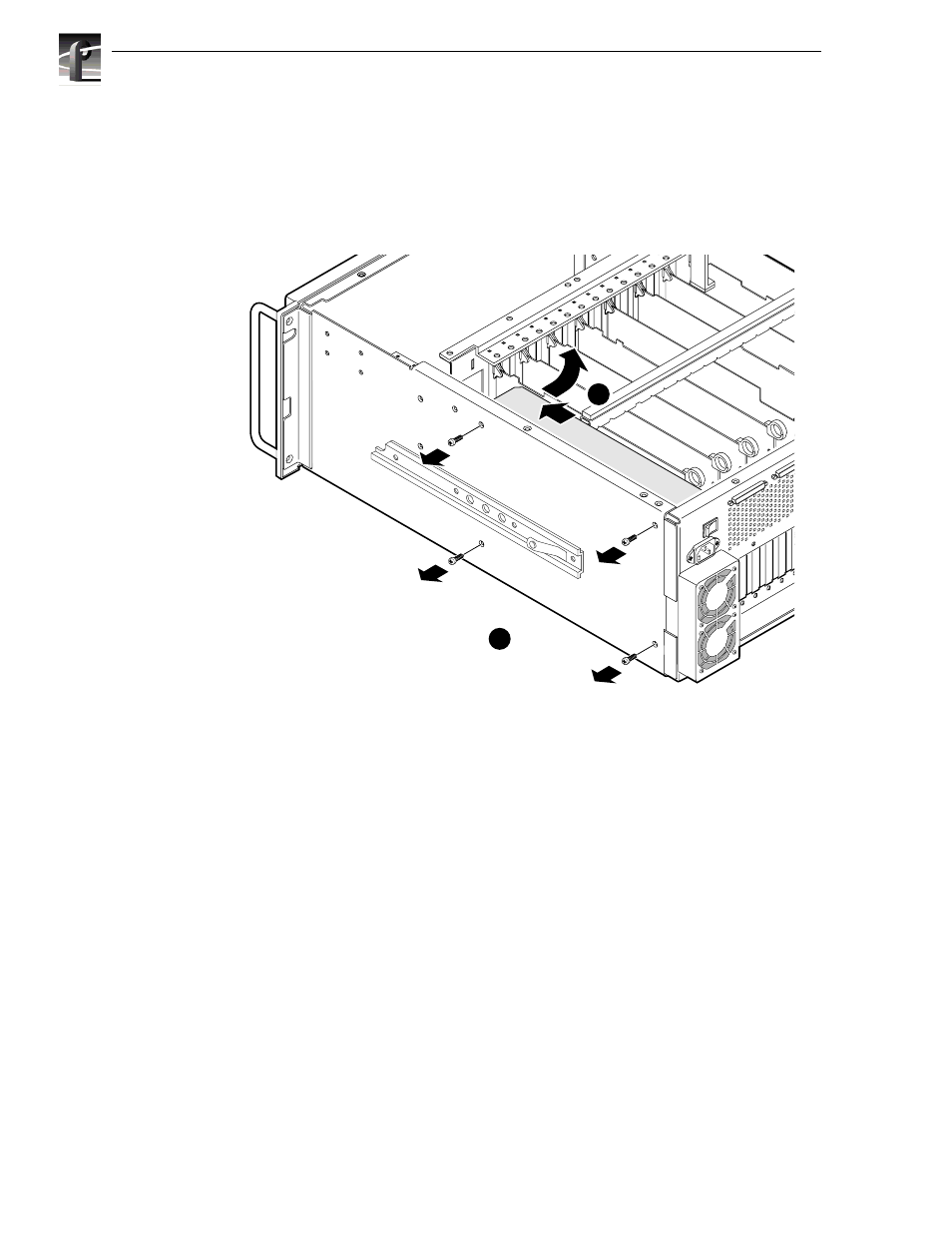

Figure 6-28. Removal of the Power Supply
9675-24
2
1
