Chapter 6: Optional Equipment Installation

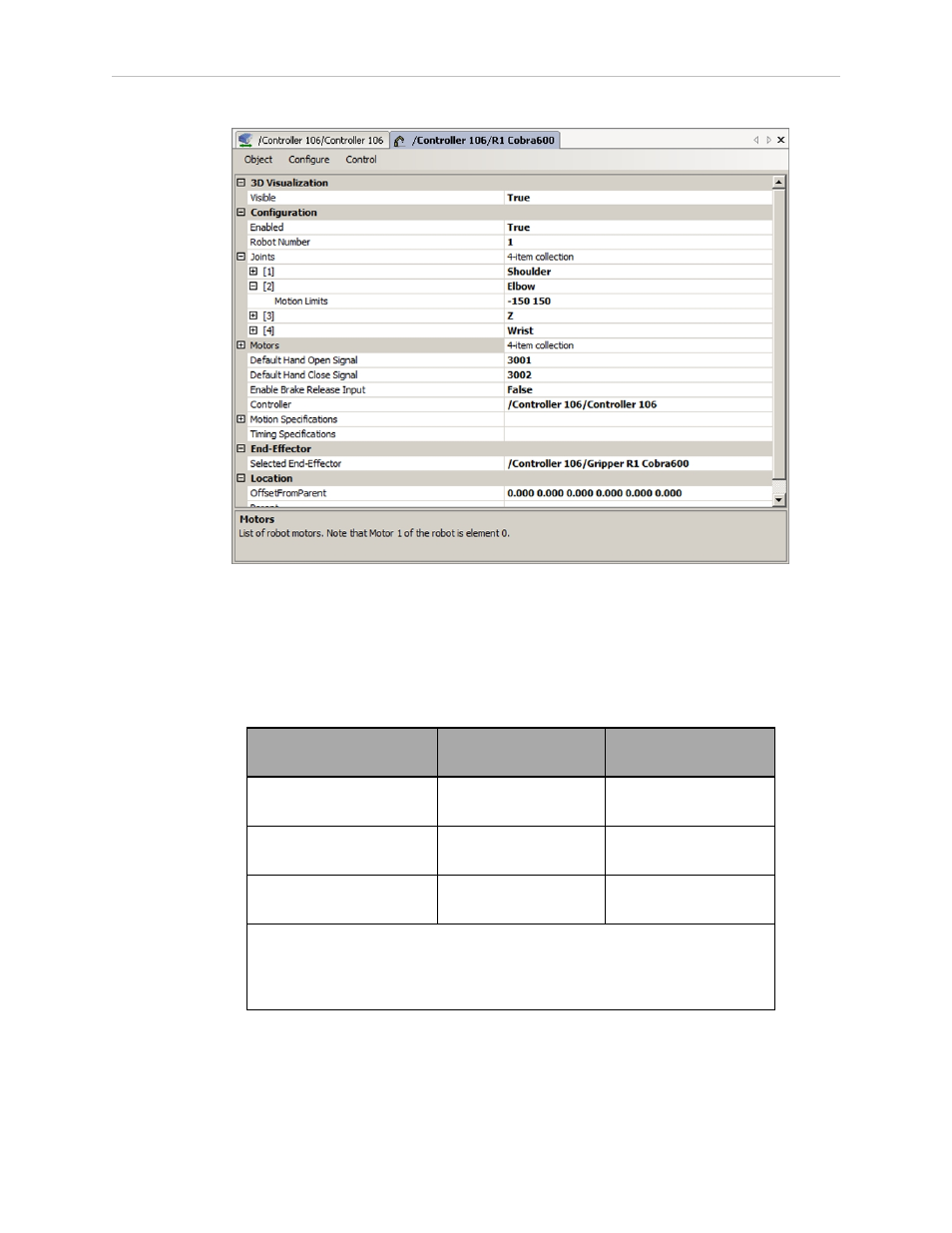

Figure 6-27. Robot Editor, with Joint 2 Expanded
5. Highlight the current values for joint 2, and replace them with the new values. See the
following table for recommended softstop values.
Table 6-8. Joint 2 Ranges for Adjustable Hardstops
Hardstop Value
Recommended
Joint Limit Softstop
J2 Hardstop Position 1 ± 81° Lower limit: – 80°
Upper limit: + 80°
J2 Hardstop Position 2 ± 51° Lower limit: – 50°
Upper limit: + 50°
J2 Hardstop Position 3 ± 21° Lower limit: – 20°
Upper limit: + 20°
NOTE: J2 Hardstops can be installed in a number of positions,
depending on how the robot workcell needs to be configured.
The positions are spaced 30° apart.
6. Once you have modified the upper and lower joint limit softstops, you must reboot the
system by cycling 24 VDC power to the SmartController. The new joint limits will be in
affect when the system reboot is done.
