150 TruVision DVR 42 User Manual
5. To connect it to the DVR, press the zone button and enter the ID number of
the TVR 42. The default value is “1”.
6. To configure the DVR zone ID number, at the DVR enter the Monitor window
by selecting Display Mode Settings in the main menu, and then select
Monitor. Under Zone ID, enter the zone ID value. The default value is “1”.
Note: The zone ID value must be identical for the DVR and keypad.
The TVR 42 is now connected to the KTD-405 keypad.
TVR 42 and keypad functions
The KTD-405U acts as a DVR control keypad when connected to the TVR 42.
The keypad mimics many of the functions available from the front panel of the
TVR 42.
Unavailable TVR 42 functions
The following TVR 42 functions are unavailable when using the keypad to control
the TVR 42:
 Export video
 Shadow tour
 Select motion detection or tampering zones
 Archive records
 Capture video
 Call up presets and set up presets
If these functions are required, it is recommended to use a mouse in conjunction
with the keypad as all TVR 42 functions will then be available.
Unavailable keypad functions
The following keypad buttons are unavailable when using the keypad to control
the TVR 42:

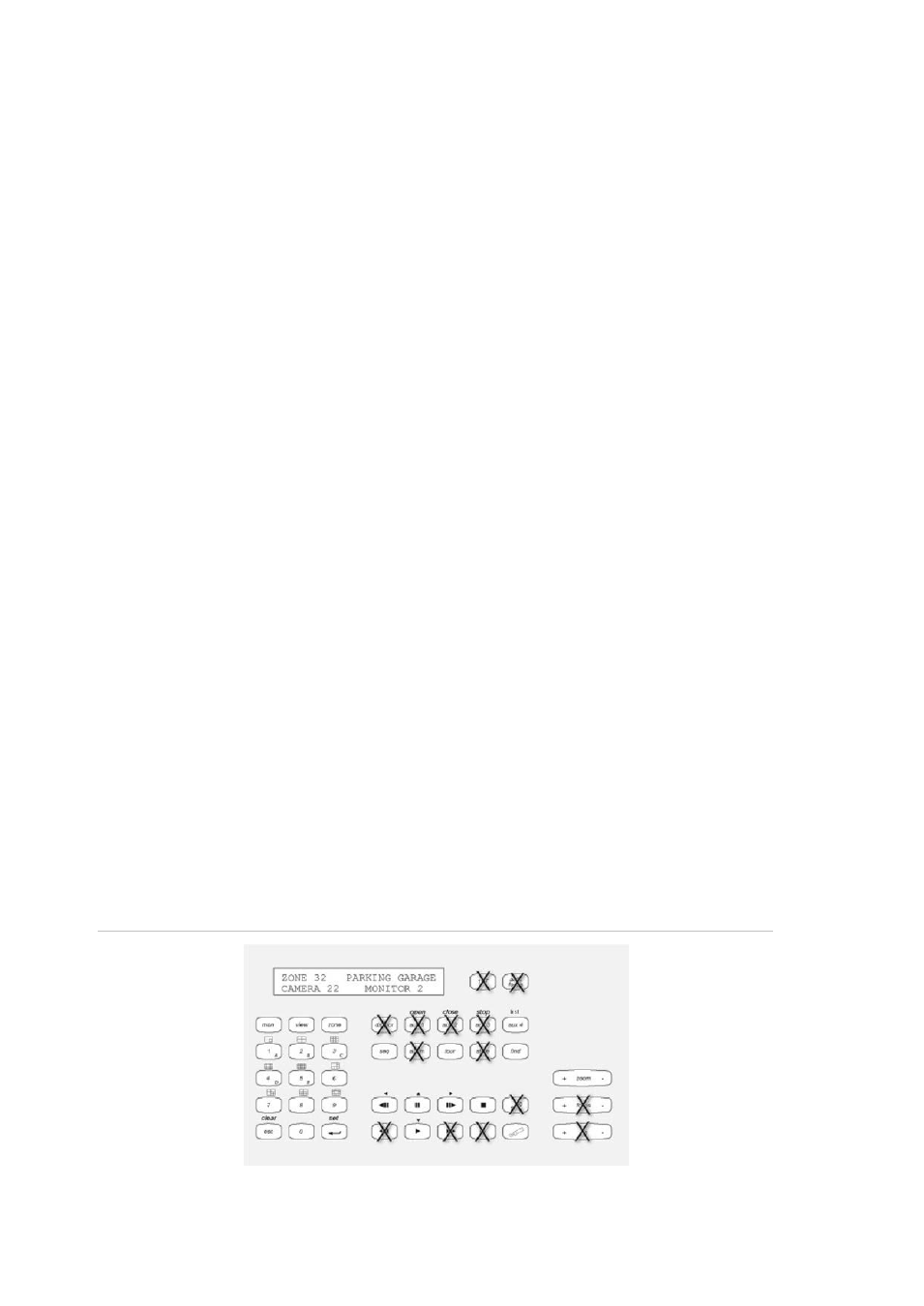

Figure 42: Unavailable keypad buttons
