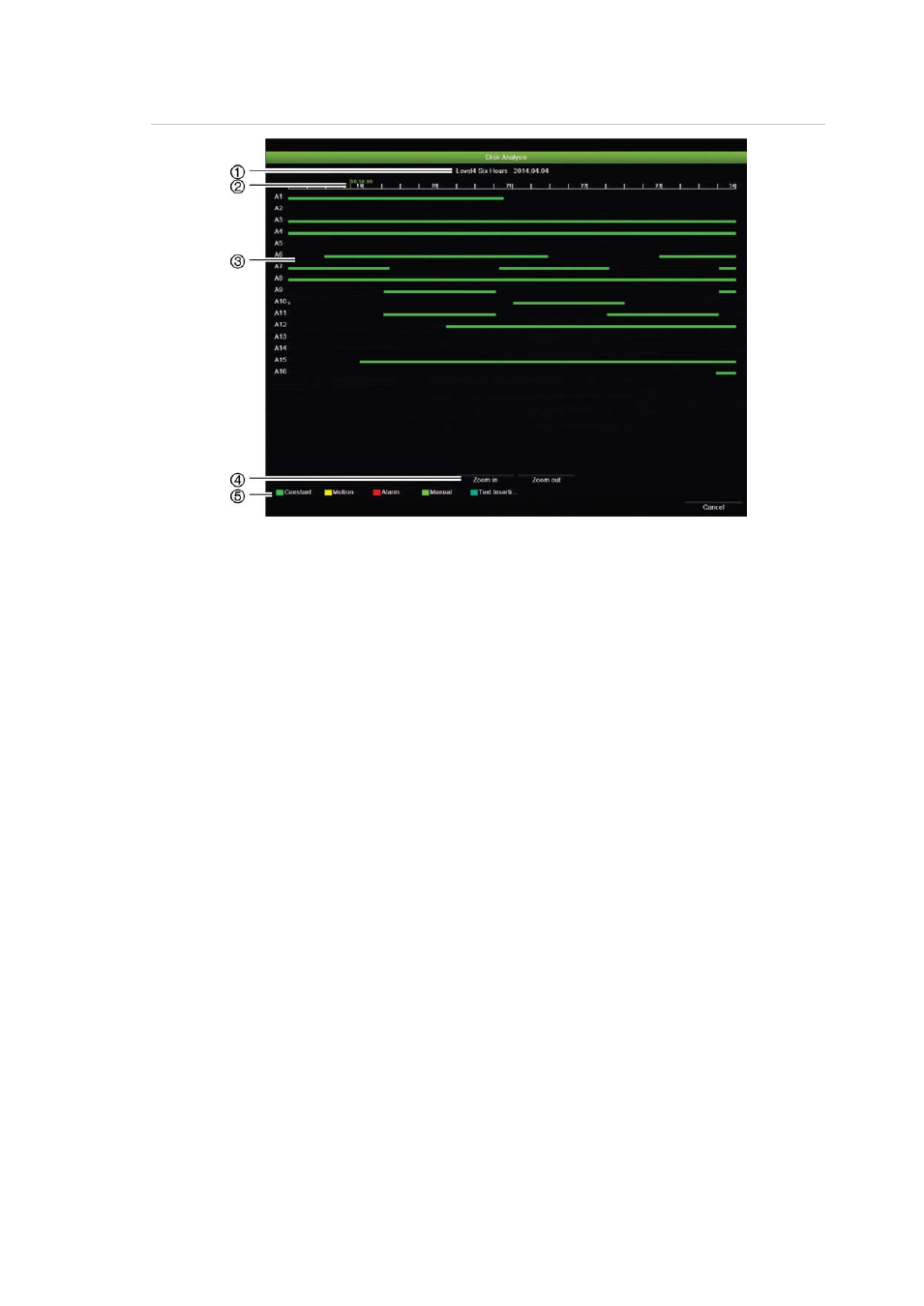

Figure 38: Disk analysis window
1. Zoom level: This is the zoom level and date displayed.
2. Time marker: This is the time of the analysis.
3. Time window: This represents the time period of the selected zoom level for all the cameras.
Events that occurred during this period are indicated on the time bar for each camera. The
type of event recorded is color coded.
4. Change zoom level: Click the in or out buttons to zoom the analysis view in and out between
five levels. The levels are:
Level 1: Year view
Level 2: Month view
Level 3: Day view
Level 4: Six-hour view
Level 5: One-hour view
5. Type of event: Up to five types of event recordings can be displayed: Constant, motion,
alarm, manual, and text insertion. Black is no recording.
To search recorded video using disk analysis
1. In live view, right-click the mouse and in the mouse menu select Advanced
Search > Disk analysis .
3. Click the HDD to analyze and then the Analyze button. The disk analysis
window appears.
4. Move the time/date marker to the time period of interest. Click the zoom in
and out buttons to focus in and out on the time period for viewing.
Note: The playback option is not available.
