See Appendix B on page145 for the supported protocols and Appendix F on
page 158 for the PTZ commands supported by each protocol.
Each PTZ camera must be set up individually. For information on configuring
PTZ dome camera settings, see Chapter 6, “Controlling a PTZ camera” on page
47.
Connecting a TVR 42 to a PTZ dome camera and a
keypad
You can connect the KTD-405 or TVK-800 keypad to the DVR. The KTD-405 is a
RS-485 bus keypad and the TVK-800 is an IP keypad.
For information on using the TVK-800 keypad, please refer to the TVK-800 user
manual.
When connecting the KTD-405 keypad, use the input/output box that is supplied
with the keypad to connect a keypad to the TVR 42. The keypad can be
connected to a PTZ camera for local control or for control over the network.
See Figure 4 below for the preferred setup. Any PTZ dome camera can be
controlled as the DVR is doing the PTZ protocol translation. However, this setup
provides only limited dome configuration.

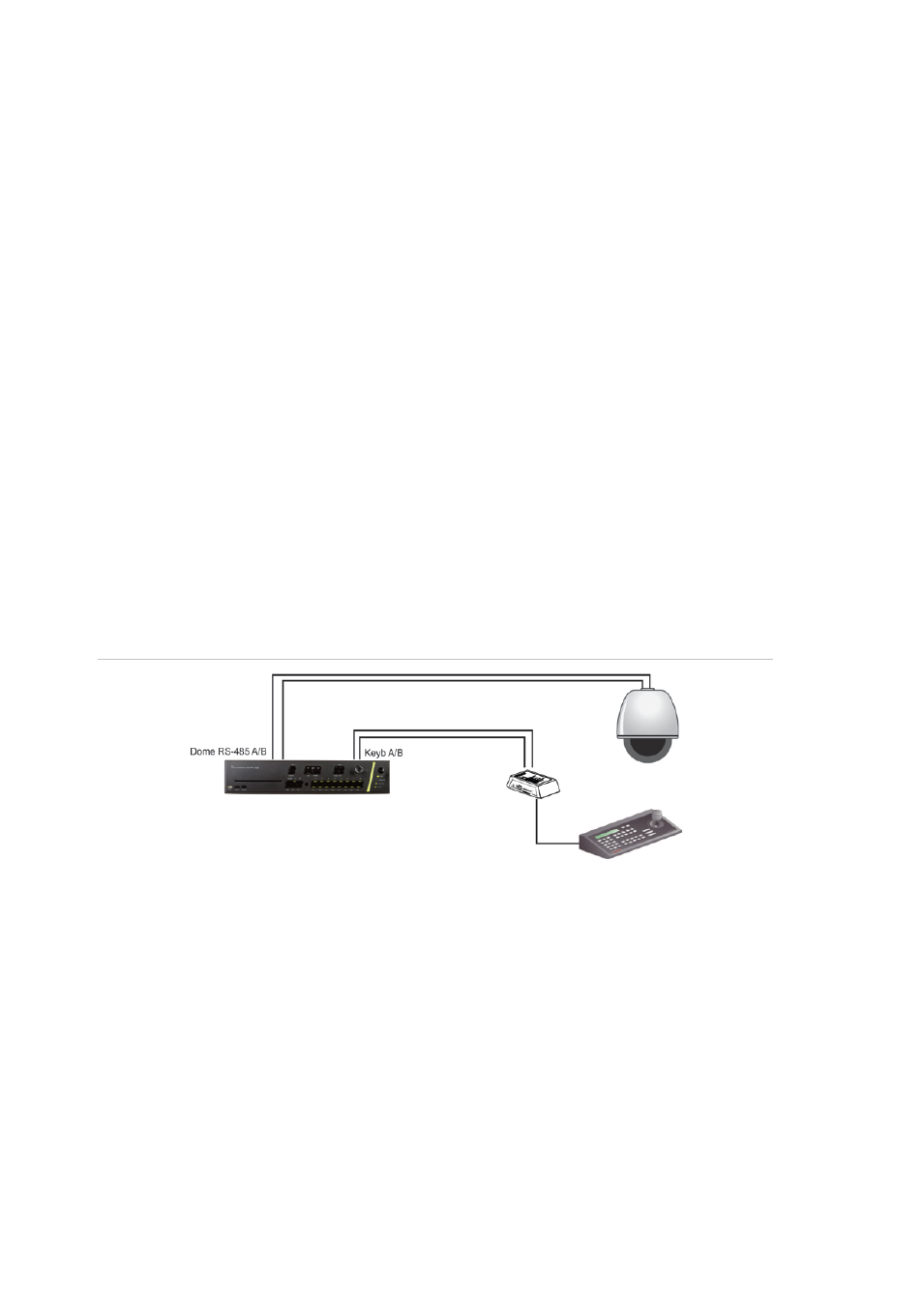

Figure 4: Connecting a KTD-405 keypad to the TVR 42 for control of a PTZ dome camera
over the network
Configuring the PTZ protocols for Interlogix cameras
Before the PTZ dome cameras are assembled in their housings, set their
protocol and address DIP switches for the TVR 42. See Table 3 on page 13 for
different Interlogix PTZ dome camera settings.
If you are using PTZ dome cameras from another company, please refer to their
configuration instructions.
